Shaping Machine

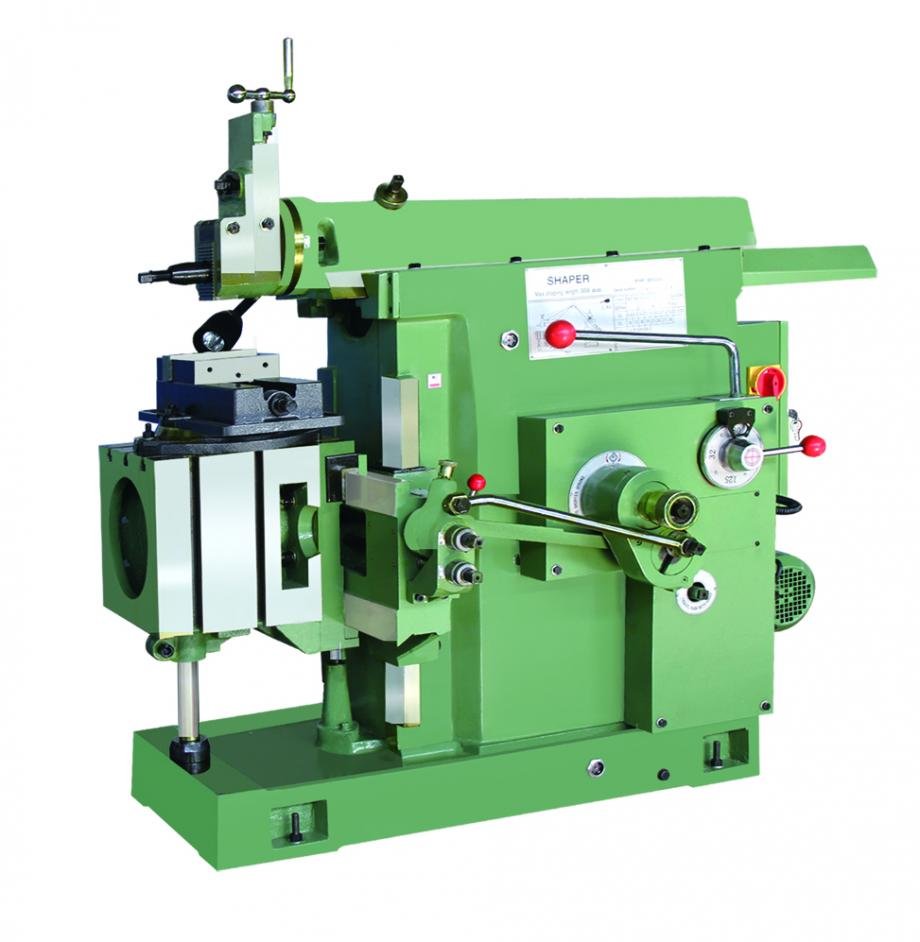

BC635A Shaping machine

Category: Shaping Machine



Specification

unit

BC635A

Maximum planing length mm 350
Maximum distance from the bottom of the sleeper to the working table mm 330
Lateral travel mm 400
Vertical stroke mm 270
Tool frame travel mm 110
Sleeper reciprocating times (per minute) min 32/50/80/125
Main motor power W 1.5
The maximum size(width * thickness) of the handle of the knife mm 20 x 30
The size of the T groove in the center of the worktable mm 14
Angle of rotation °

 ±90°(No vice)

±55°(A vice)

Workbench size mm 350 x 300
Shape size mm

1530 x 930 x 1370

Machine tool weight (about) KG 1100/1250
Package dimensions mm 1500/1000/1500



Ask about this product
