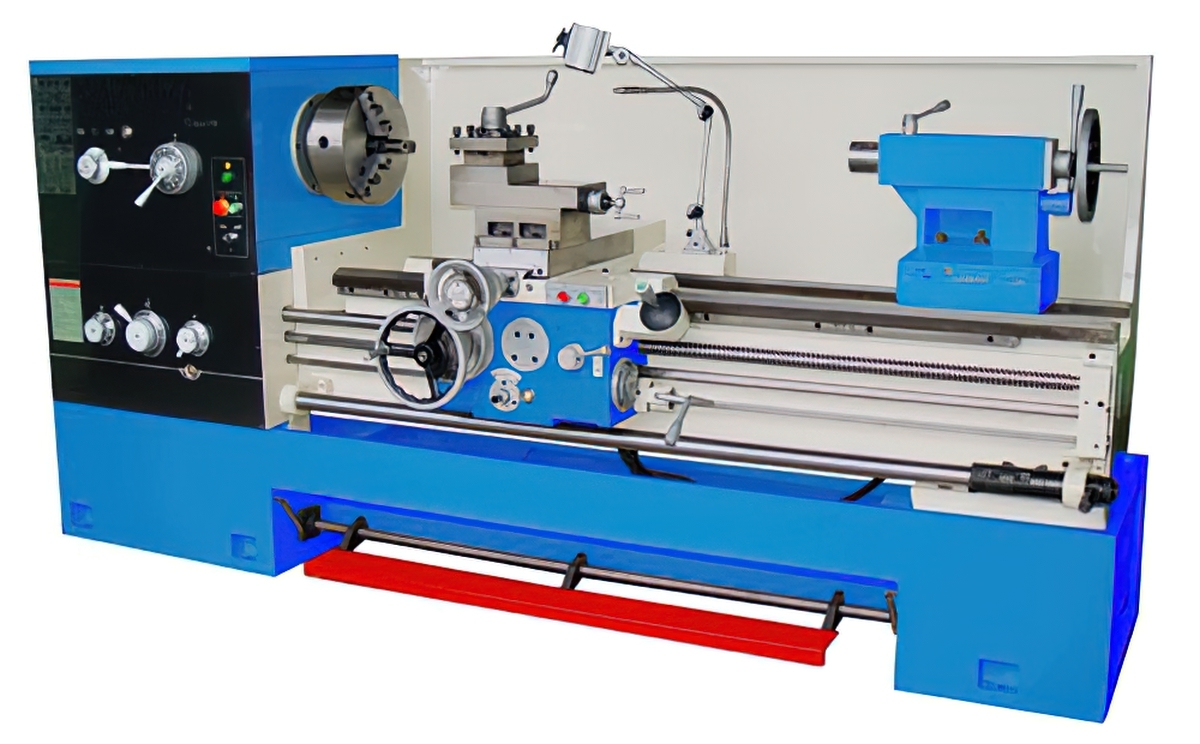

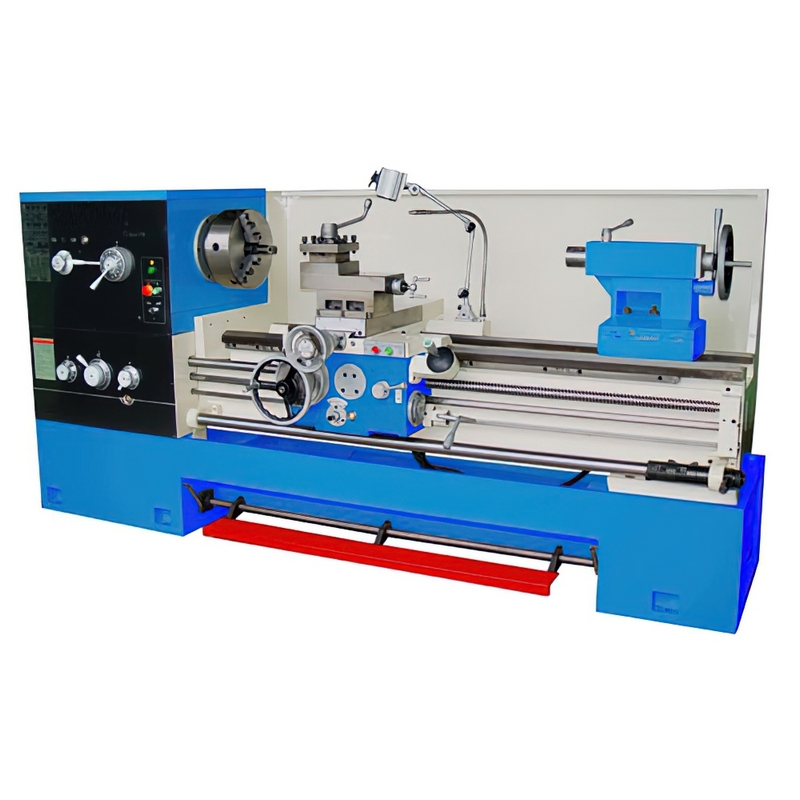

Model No. |
TN560 / TN660 |
|
Item No. |
|
|
Specifications |
|
|
Distance between centers |
1000/1500/2000/3000 mm |
|
Swing over bed |
560/ 660 mm |
|
Swing over carriage |
320/420 mm |
|
Swing over gap |
770/870 mm |
|
Bed width |
405 mm |
|
Spindle bore |
105 mm |
|
Taper of spindle bore |
113 mm 1:20 |
|
Spindle nose |
D1-8 |
|
Step of spindle speeds |
12 |
|
Range of spindle speeds |
36-1600 rpm |
|
Range of cross feeds |
0.027-1.07 mm/r |
|
Range of longitudinal feeds |
0.063-2.52 mm/r |
|
Range of inch threads |
28-2 T.P.I/25 |
|
Range of metric threads |
1-14 mm/22 |
|
Range of moduler threads |
0.5-7 mm/18 |
|
Range of diametrical threads |
4-56 D.P./24 |
|
Rapid feed of cross traverse |
1.9 m/min. |
|
Rapid feed of longitudinal traverse |
4.5 m/min. |
|
Top slide travel |
145 mm |
|
Cross slide travel |
310 mm |
|
Max. size of tool (WxH) |
25X25 mm |
|
Tailstock quill diameter |
75mm |
|
Tailstock quill travel |
150mm |
|
Taper of tailstock quill |
MT5 |
|
Motor |
7.5 kw |
|
Packing size |
2500/3000/3500/4500x1100x1650 mm |
|
Net weight |
3000/3200/3400/3900 kg |
|
Standard Accessories |
Optional Accessories |
|
3-jaw chuck (325mm) |
Quick change tool post |
|
4-jaw chuck (400mm) |
Turning tools |
|
Face plate |
Leadscrew cover |
|
Steady rest |
Chuck guard |
|
Follow rest |
Tool post cover |
|
Splash guard |
Digital readout system |
|
Stand |
Taper turning attachment |
|
Halogen work lamp |
One piece casting stand |
|
Toolbox & tools |
|
