FEATURE:
● Induction hardened, precision ground V-way bed.
● D1-4 spindle is supported by high quality tapered roller bearing.
● Hardened, precision ground gears in headstock.
● High precision directly mounting chuck.
● Carriage mounted spindle control lever.
● Automatic feed and threading are fully interlocked.
● Tailstock may be offset for turning tapers.
● One-piece casting iron base allows heavy cuts.
● Tolerance test certificate, test flow chart included.
|

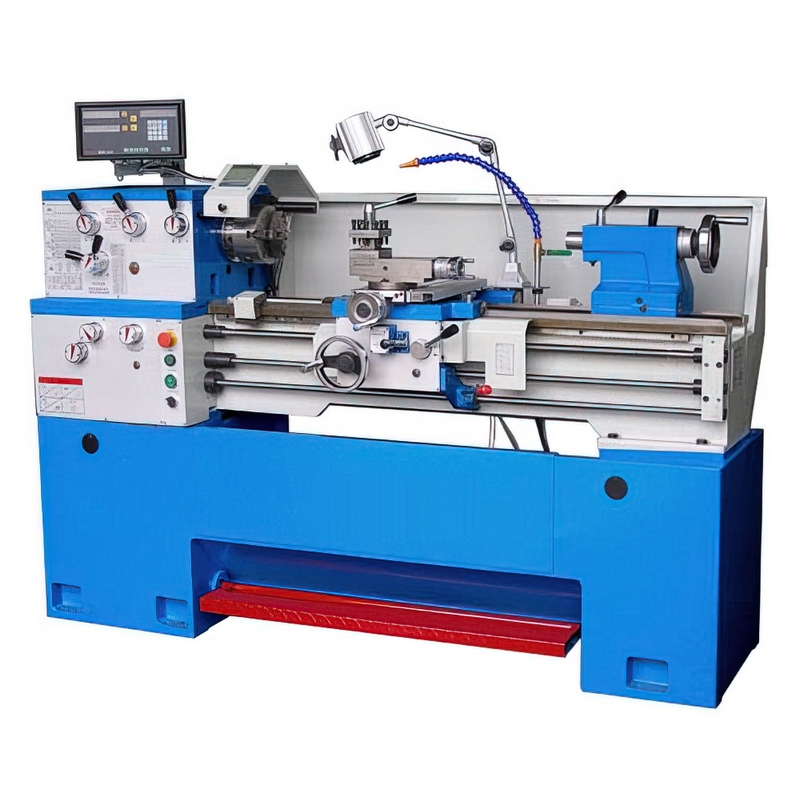

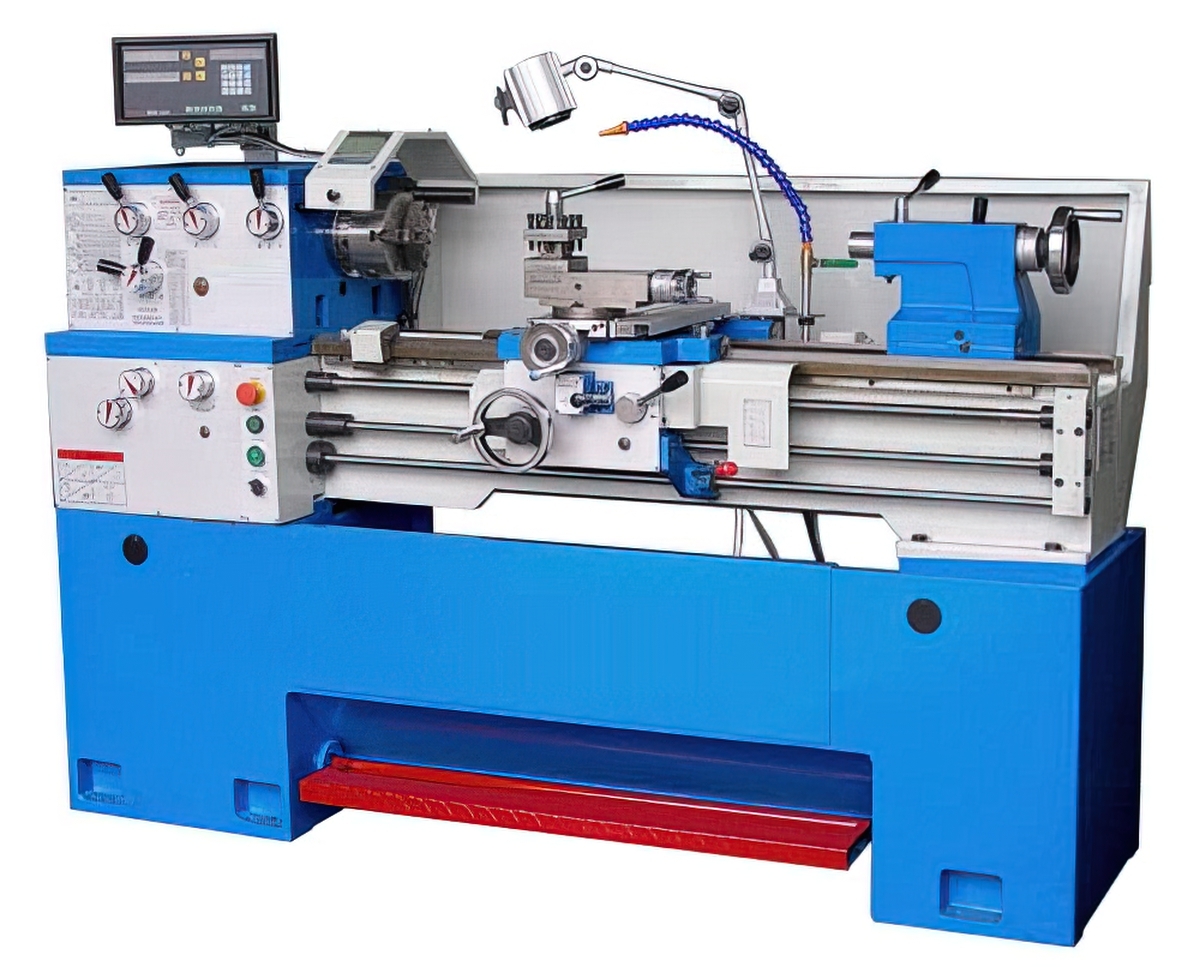

Model No. |
TN360A |
|
Item No. |
|
|
Specifications |
|
|
Distance between centers |
1000 mm |
|
Swing over bed |
356 mm |
|
Swing over gap |
506 mm |
|
Swing over cross slide |
210 mm |
|
Bed width |
260 mm |
|
Taper of spindle bore |
MT5 |
|
Spindle nose |
D1- 4 |
|
Spindle bore |
40 mm |
|
Step of spindle speeds |
12 |
|
Range of spindle speeds |
40~1800 rpm |
|
Range of cross feeds |
0.024~0.359 mm/r |
|
Range of longitudinal feeds |
0.043~0.653 mm/r |
|
Range of inch threads |
4~56 T.P.I |
|
Range of metric threads |
0.4~7 mm |
|
Top slide travel |
92 mm |
|
Cross slide travel |
185 mm |
|
Tailstock quill travel |
120 mm |
|
Taper of tailstock quill |
MT3 |
|
Main motor |
2.4 kw |
|
Packing size |
1990 x 760 x 1450 mm |
|
Net weight |
996 kg |
|
Standard Accessories |
Optional Accessories |
|
3-jaw chuck (160mm) |
Quick change tool post |
|
4-jaw chuck (200mm) |
Turning tools |
|
Face plate (250mm) |
Leadscrew cover |
|
Steady rest |
Chuck guard |
|
Follow rest |
Tool post cover |
|
Splash guard |
Digital readout system |
|
Stand & oil tray |
Taper turning attachment |
|
Micro carriage stop |
Collet attachment |
|
Halogen work lamp |
|
|
Toolbox & tools |
|
|
Coolant system |
|
|
Foot brake |
|
