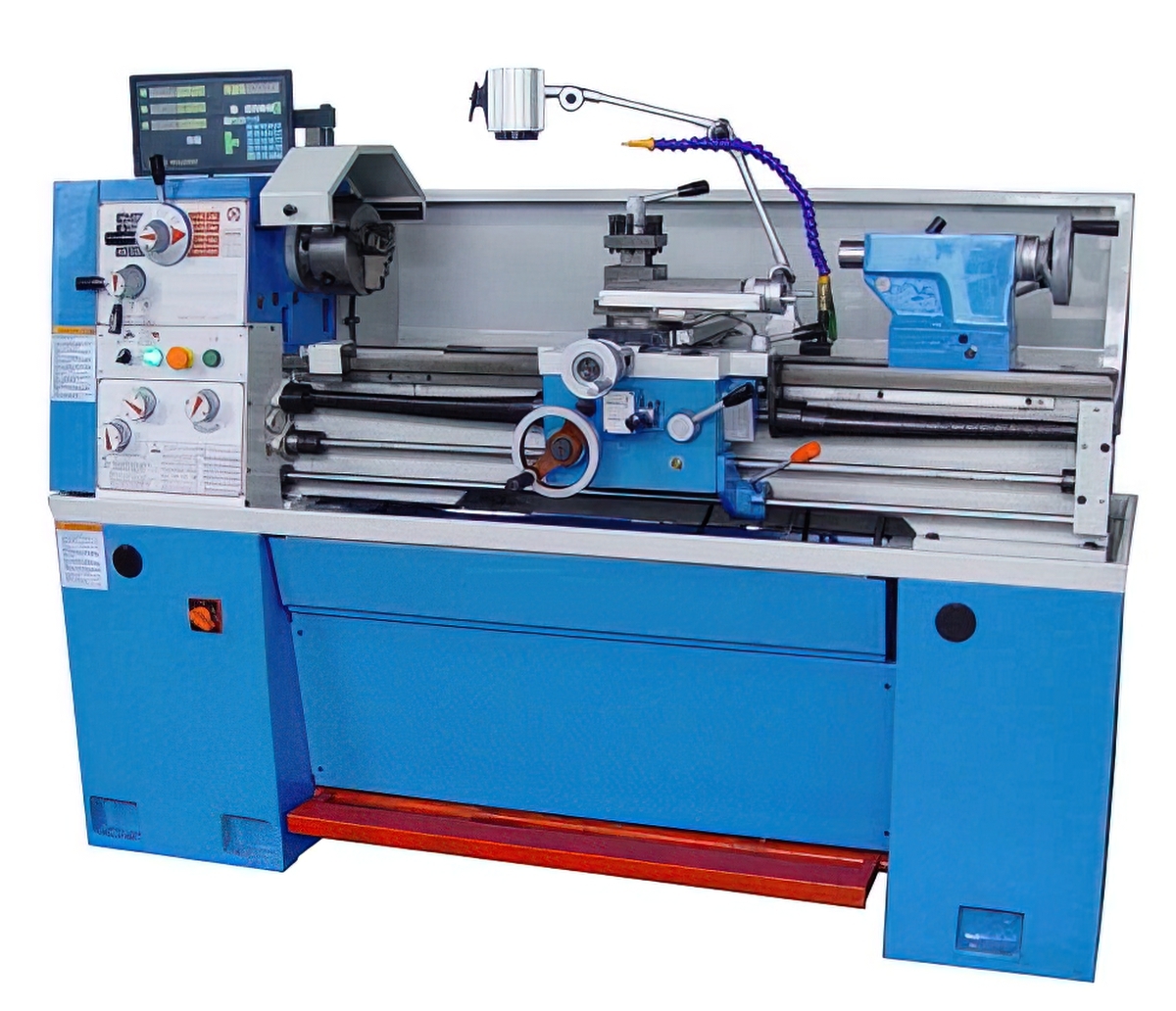

TN360 Bench Lathe Machine

Category: Engine Lathe

FEATURE:
● Induction hardened, precision ground V-way bed.
● D1-4 spindle is supported by high quality tapered roller bearing.
● Hardened, precision ground gears in headstock.
● High precision directly mounting chuck.
● Carriage mounted spindle control lever.
● Automatic feed and threading are fully interlocked.
● Tailstock may be offset for turning tapers.
● Tolerance test certificate, test flow chart included.



 Model No.

TN360

    Item No.



 Specifications

 Distance between centers

1000 mm

 Swing over bed

356 mm

 Swing over gap

506 mm

 Bed width

206 mm

 Taper of spindle bore

MT5

 Spindle nose

D1- 4

 Spindle bore

38 mm

 Step of spindle speeds

16

 Range of spindle speeds

45~1800 rpm

 Range of cross feeds

0.015~0.220 mm/r

 Range of longitudinal feeds

0.043~0.653 mm/r

 Range of inch threads

4~56 T.P.I

 Range of metric threads

0.4~7 mm

 Top slide travel

92 mm

 Cross slide travel

185 mm

 Carriage travel

945 mm

 Travel of tailstock quill

120 mm

 Taper of tailstock quill

MT3

 Main motor

1.5/2.2 kw

 Packing size

1920 x 760 x 1450 mm

 Net weight

800 kg





 Standard Accessories

 Optional Accessories

 3-jaw chuck (160mm)

 Quick change tool post

 4-jaw chuck (200mm)

 Turning tools

 Face plate (250mm)

 Leadscrew cover

 Steady rest

 Chuck guard

 Follow rest

 Tool post cover

 Splash guard

 Digital readout system

 Stand & oil tray

 Taper turning attachment

 Micro carriage stop

 Collet attachment

 Halogen work lamp



 Toolbox & tools



 Coolant system



 Foot brake
