FEATURE:
● Most economical, widely useful hobby lathe.
● Harden and ground bedway.
● Headstock is constantly oiled during operating.
● Geared headstock enables to change speeds quickly.
● Power longitudinal feed allows threading.
● Adjustable gids for slidways.
● Change gears provide large feed and threading function.
● Tailstock can be offset for turning tapers.
● Tolerance test certificate, test flow chart included.

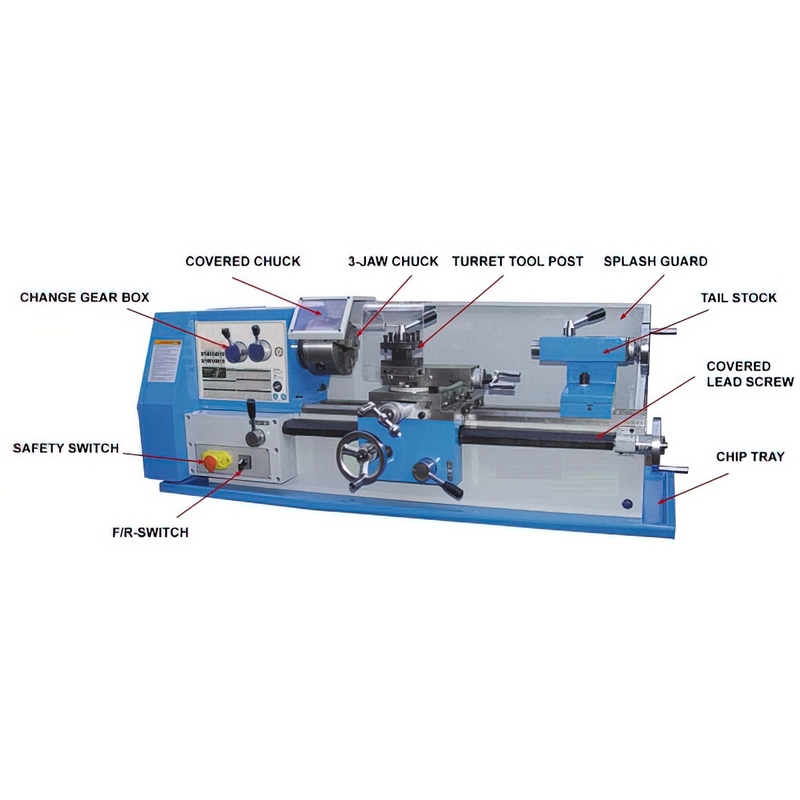

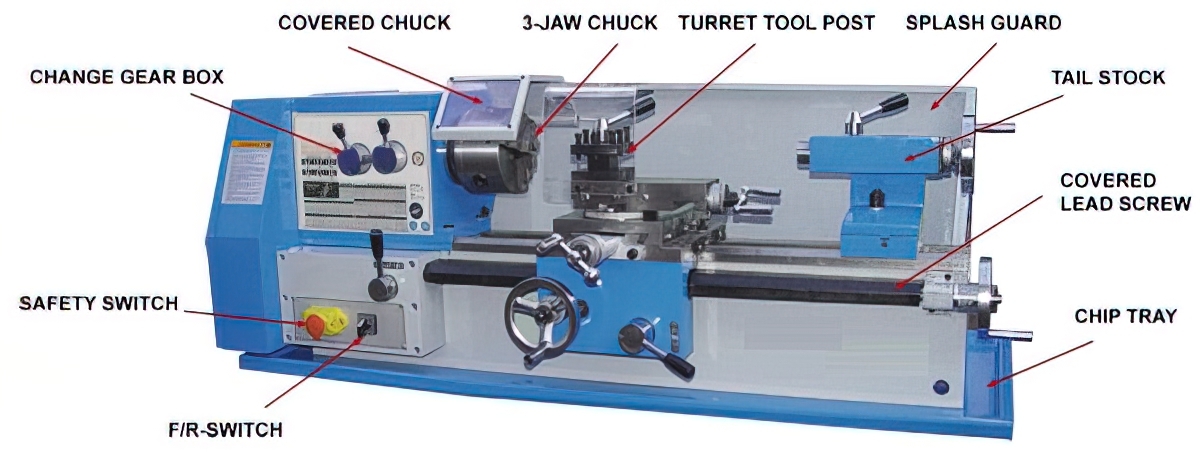

Model No.

TN260

    Item No.

　Specifications

　Distance between centers

450/700 mm

　Swing over bed

250 mm

　Swing over cross slide

130 mm

　Width of bed

125 mm

　Taper of spindle bore

MT4

　Spindle bore

26 mm

　Number of spindle speeds

6

　Range of spindle speeds

115-1620 rpm

　Range of longitudinal feeds

0.05-0.1 mm/r

　Range of inch threads

8-56 T.P.I

　Range of metric threads

0.2-3.5 mm

　Top slide travel

25 mm

　Cross slide travel

114 mm

　Tailstock quill travel

70 mm

　Taper of tailstock quill

MT3

　Motor

750W

　Packing size

1260/1510x570x500 mm

　Net weight

120/135 kg

　Standard Accessories

　Optional Accessories

　3-jaw chuck (125mm)

　4-jaw chuck (125mm)

　Splash guard

　Backplate

　Chip tray

　Follow rest

　Toolbox & tools

　Steady rest

　Face plate (240mm)

　Collet chuck

　Collet holder

　Turning tools

　Threading dial

　Stand
