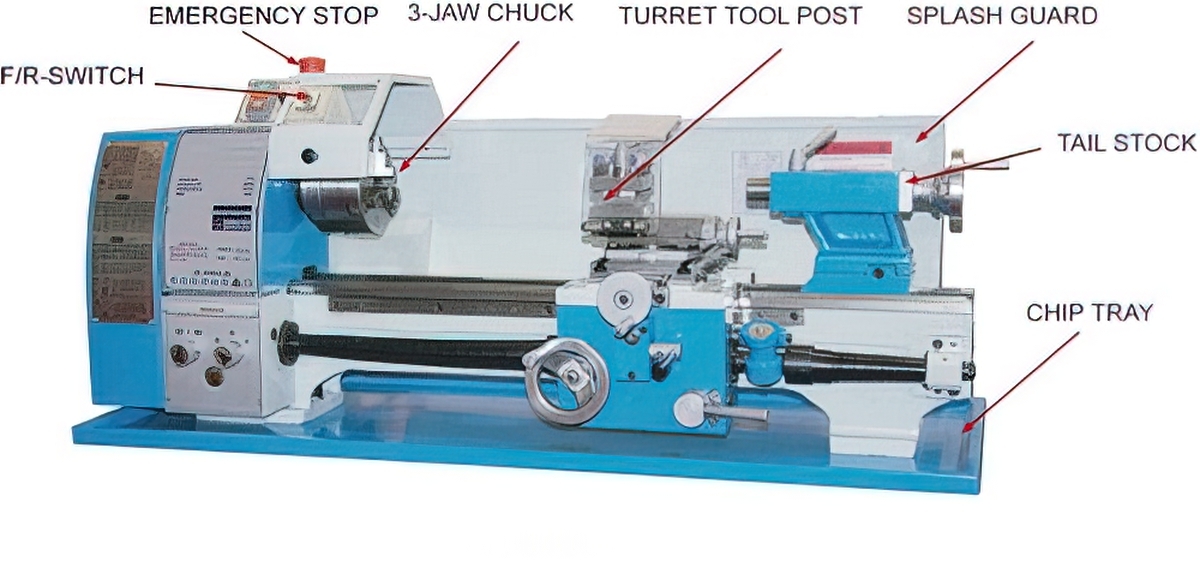

FEATURE:
● V-way bed is hardened and precision ground.
●MT4 spindle gets more capacity.
●Independent leadscrew and feedshaft.
●Power cross feed function.
●Automatic feed and threading are fully interlocked.
●T-slotted cross slide.
●Right & left hand threads cutting is available.
●Tailstock can be offset for turning tapers.
●Tolerance test certificate, test flow chart included.
|
Model No. |
TN250-F |
|
Item No. |
|
|
Specifications |
|
|
Distance between centers |
550/750 mm |
|
Swing over bed |
250 mm |
|
Swing over cross slide |
145 mm |
|
Width of bed |
135 mm |
|
Taper of spindle bore |
MT4 |
|
Spindle bore |
26 mm |
|
Number of spindle speeds |
6 |
|
Range of spindle speeds |
125-2000 rpm |
|
Range of cross feeds |
0.03-0.075 mm/r |
|
Range of longitudinal feeds |
0.06-0.32 mm/r |
|
Range of inch threads |
8-56 T.P.I |
|
Range of metric threads |
0.2-3.5 mm |
|
Top slide travel |
50 mm |
|
Cross slide travel |
115 mm |
|
Tailstock quill travel |
70 mm |
|
Taper of tailstock quill |
MT2 |
|
Motor |
550W(AC) |
|
Packing size |
1250/1500x560x570 mm |
|
Net weight |
127/140 kg |
|
Standard Accessories |
Optional Accessories |
|
3-jaw chuck (125mm) |
4-jaw chuck (125mm) |
|
Splash guard |
Backplate |
|
Chip tray |
Follow rest |
|
Toolbox & tools |
Steady rest |
|
|
Face plate (240mm) |
|
|
ER25 collet chuck |
|
|
Collet holder |
|
|
Turning tools |
|
|
Quick change tool post |
|
|
Threading dial |
|
|
Stand |
