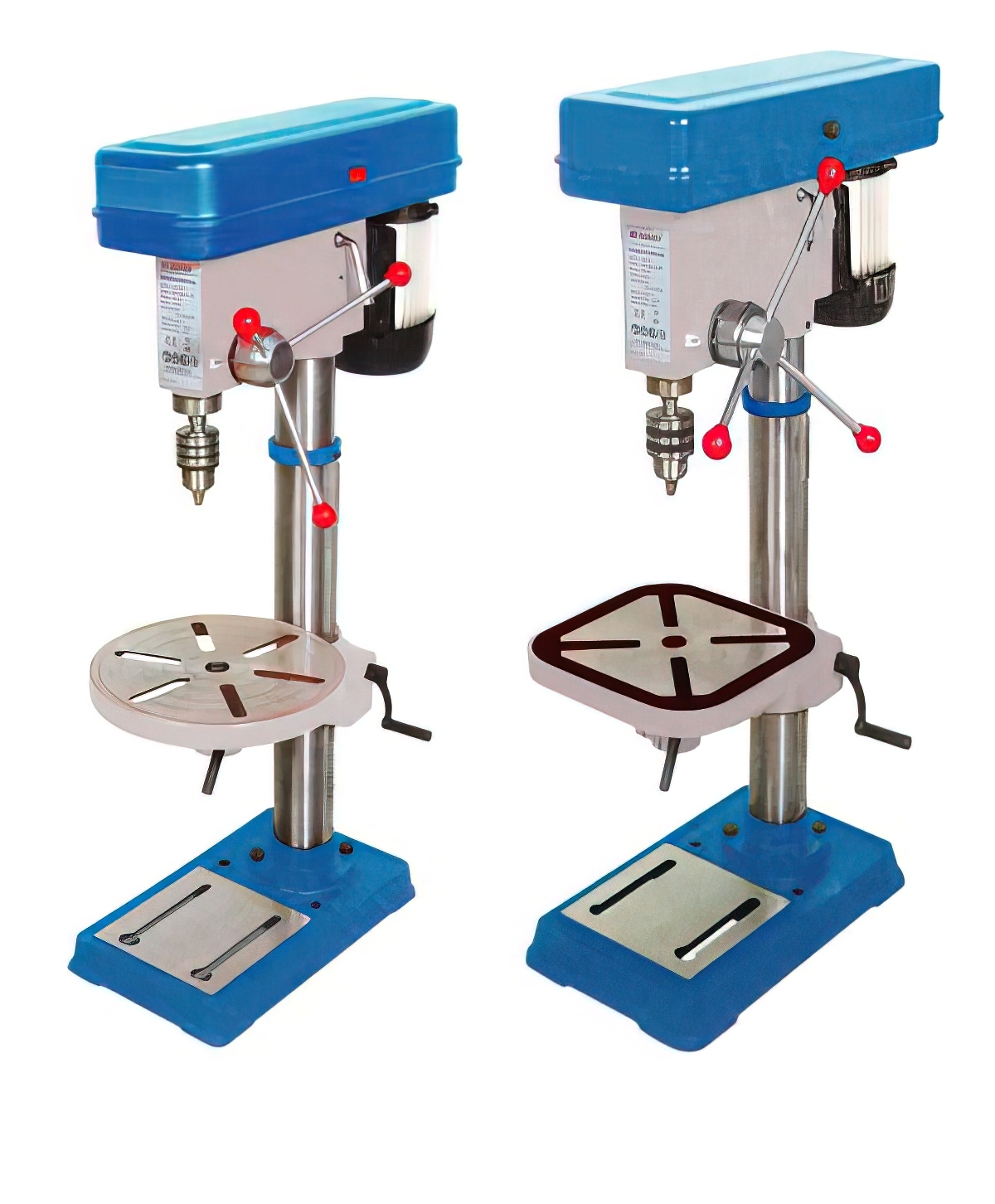

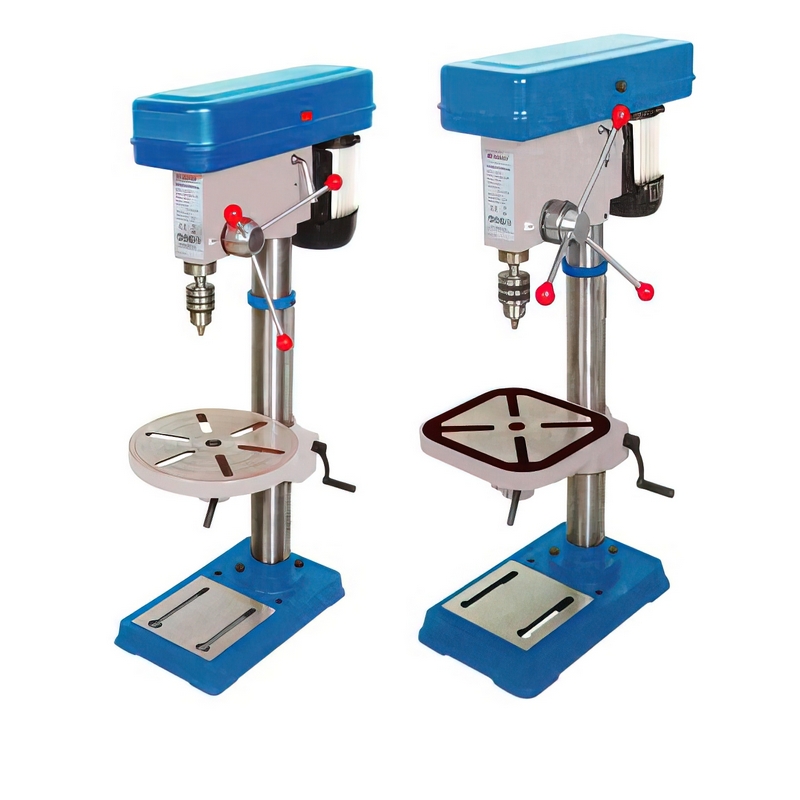

DPQ4116 DP4116
| Model No. | DP4116 | DP4116A |
| Item No. | ||
| Specifications | ||
| Motor power | 375W | 550W |
| Chuck | 16 mm | 16 mm |
| Spindle stroke | 85 mm | 85 mm |
| Spindle taper | MT2 | MT2 |
| Speed steps | 16 | 16 |
| Speed 50/60Hz | 220-2840 rpm/ | 220-2840 rpm/ |
| 260-3410 rpm | 260-3410 rpm | |
| Swing | 324 mm | 360 mm |
| Table size | Φ290 mm | 290x290 mm |
| Base size | 420x250 mm | 460x280 mm |
| Column | Φ72 mm | Φ72 mm |
| Total height | 980 mm | 990 mm |
| Weight | 43 kg | 55 kg |
| Packing size | 770x450x270 mm | 820x550x290 mm |
| Loading Qty in 20” CTN | 310pcs | 250pcs |
