Sawing Machine

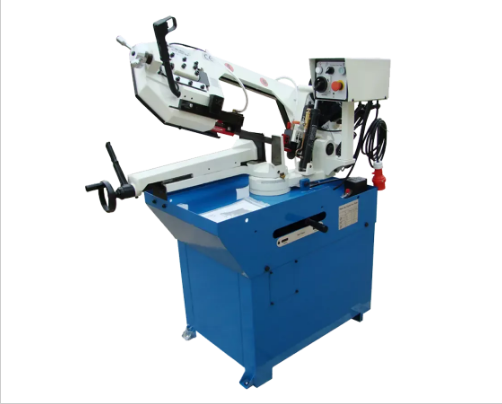

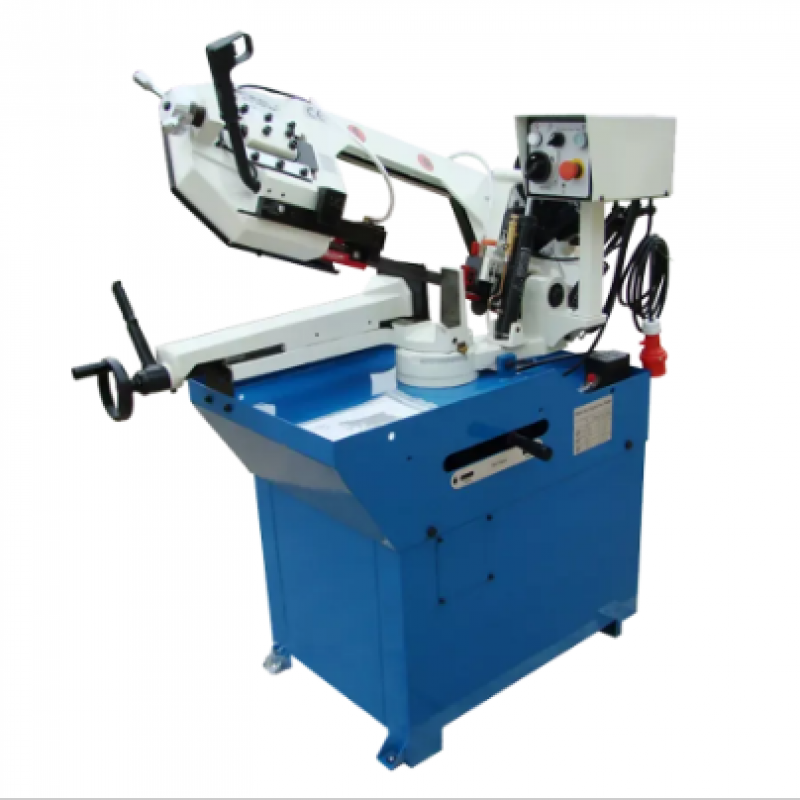

BS-260G Horizontal Band Saw Machine

Category: Band Saw

Features:

  • 9" round and 10"x7.9" rectangular cutting capacity at 90°
  • Cast iron saw frame max. miter 60°
  • Hydraulic descent

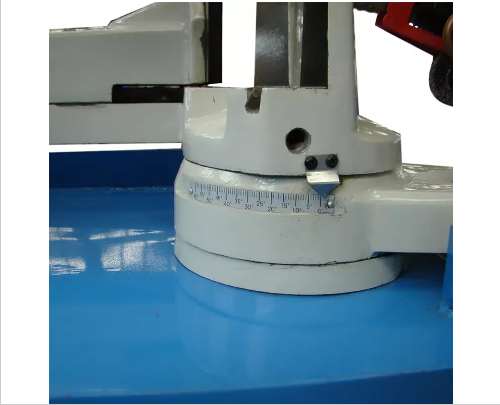

  • Quick action lock/release lever for swivel head
  • Coolant system as standard
  • Control panel mounted for easy access
  • Adjistable length stop for repetition cutting



 Model No.

BS-260G

    Item No.



Specification

 Cut Circular @90°

227mm (9")

 Cut Rectangular @90°

260x200mm (10"x7.9")

 Cut Circular @60°

90mm (3.5")

   Cut Rectangular @60°

85x85mm (3.5"x3.5")

   Cut Circular @45° 150mm (6")
   Cut Rectangular @45° 150x125mm (6"x5")

   Blade speed @50Hz

2P,72 MPM 236 FPM;

4P,36MPM 118FPM

   Blade speed @60Hz

2P,86 MPM 283 FPM;

4P,43MPM 141 FPM

   Blade size

20x0.9x2445 mm

 Motor power

0.75/1.1kw  1/1.5HP(3PH)

 Drive

Gear

 Packing size

145x72x102 cm

   N.W./G.W.                              220/275 kg

 Standard Accessories

 Optional Accessories

  Saw blade

  Stand and support

  Stop Rod



  Coolant system
