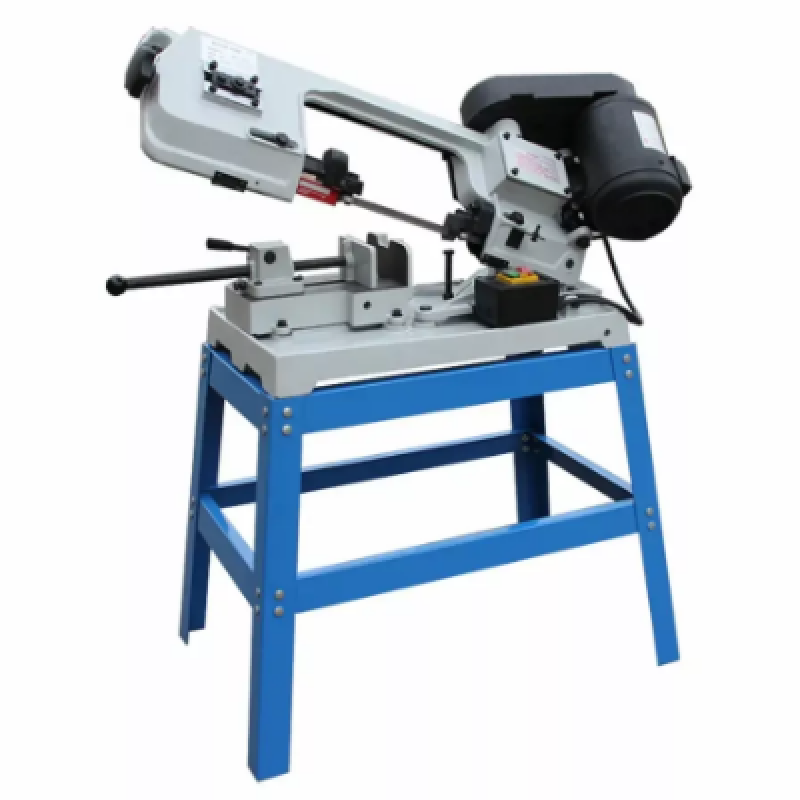

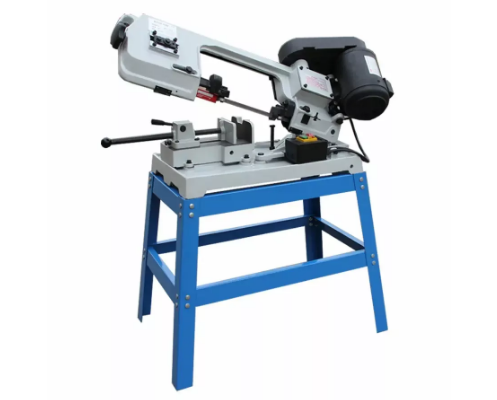

Features:
- The maximum cutting capacity is 115mm(4.5") round bar
- Belt drive,3 cutting speed
- The saw bow can miter from 0° to 45°
- Vertical cutting available
- Rapid vice clamp
- 3-Phase or 1-Phase motor available for this machine.
|
Model No. |
BS-115A |
|
Item No. |
|
|
Specification |
|
|
Capacity：Circular @90° |
115mm (4.5") |
|
Rectangular @90° |
100x150mm (4"x6") |
|
Circular @45° |
100mm (4") |
|
Rectangular@45° |
60x100mm (2.4"x4") |
|
Blade speed：@60Hz |
24,35,61 MPM |
|
@50Hz |
20,29,50 MPM |
|
Blade size |
13x0.6x1638mm |
|
Motor power |
375W 1/2HP(3PH) 550W 3/4HP(1PH) |
|
Drive |
V-belt |
|
Packing size |
101x48x56cm |
| N.W./G.W. | 78/96 kg |
|
Standard Accessories |
Optional Accessories |
|
Saw blade |
Vertical cutting table |
|
Stand |
|
|
|
|
