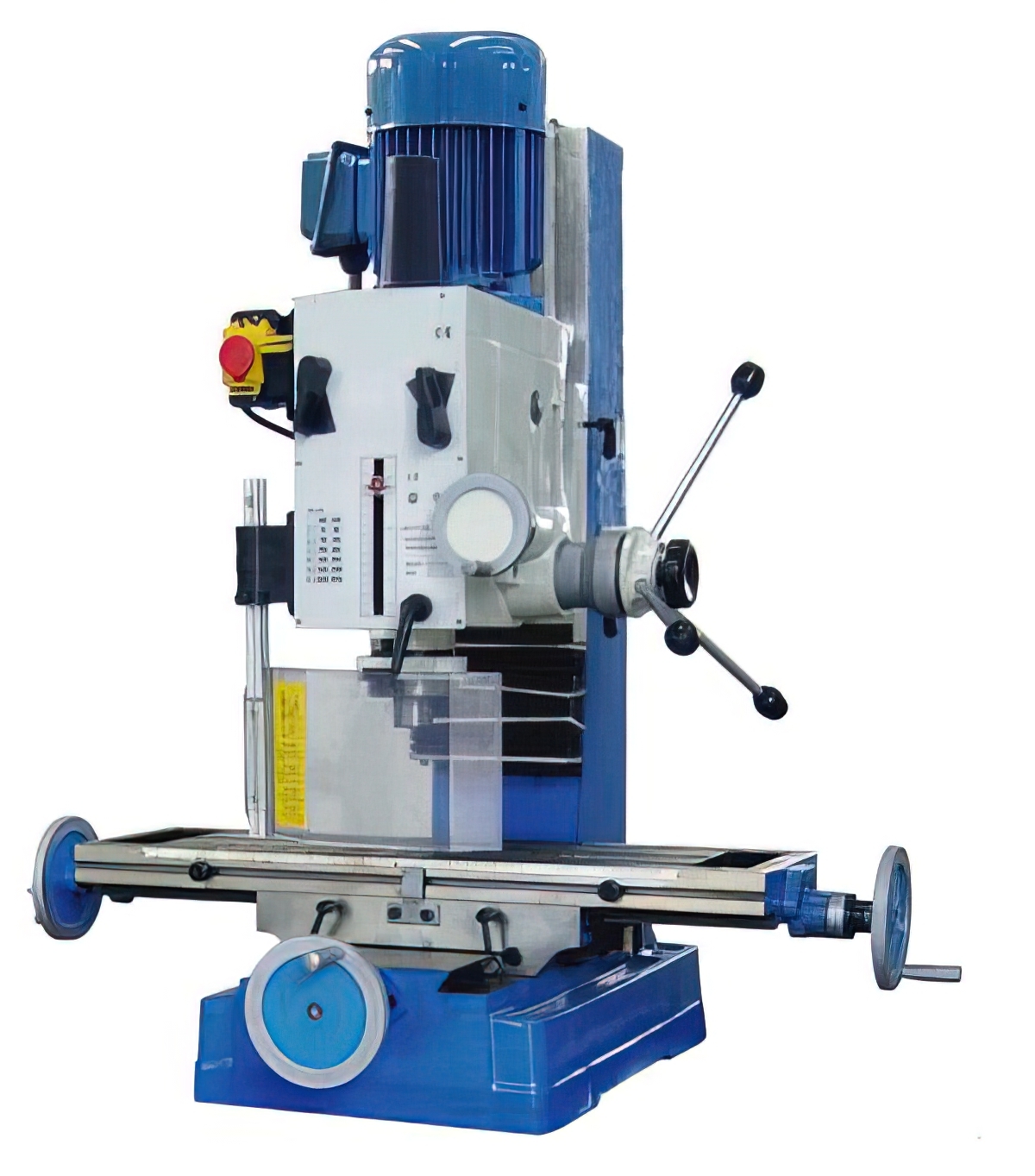

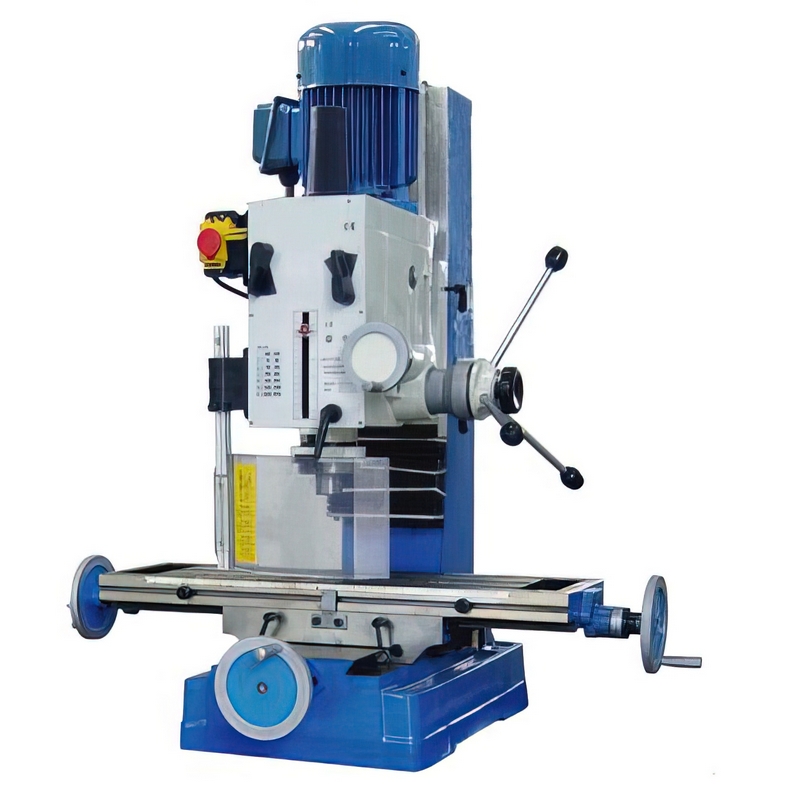

Model No. |
MD45 |
|
Item No. |
|
|
Specifications |
|
|
Max. drilling capacity |
40 mm |
|
Max. end milling capacity |
32 mm |
|
Max. face milling capacity |
80 mm |
|
Table size |
800 x 240 mm |
|
Table travel (X,Y) |
560 x 230 mm |
|
T-slot |
3 x 14 mm |
|
Spindle taper |
MT4 or R8 or IS030 |
|
Spindle stroke |
120 mm |
|
Step of spindle speeds |
6 Kinds |
|
Range of spindle speeds |
75~1600 rpm |
|
Spindle incline angle |
±90° |
|
Distance from spindle to column |
258 mm |
|
Distance from spindle nose to table |
460 mm |
|
Motor |
1.1 kw |
|
Packing size |
820 x 760 x 1150 mm |
|
Net weight |
320 kg |
