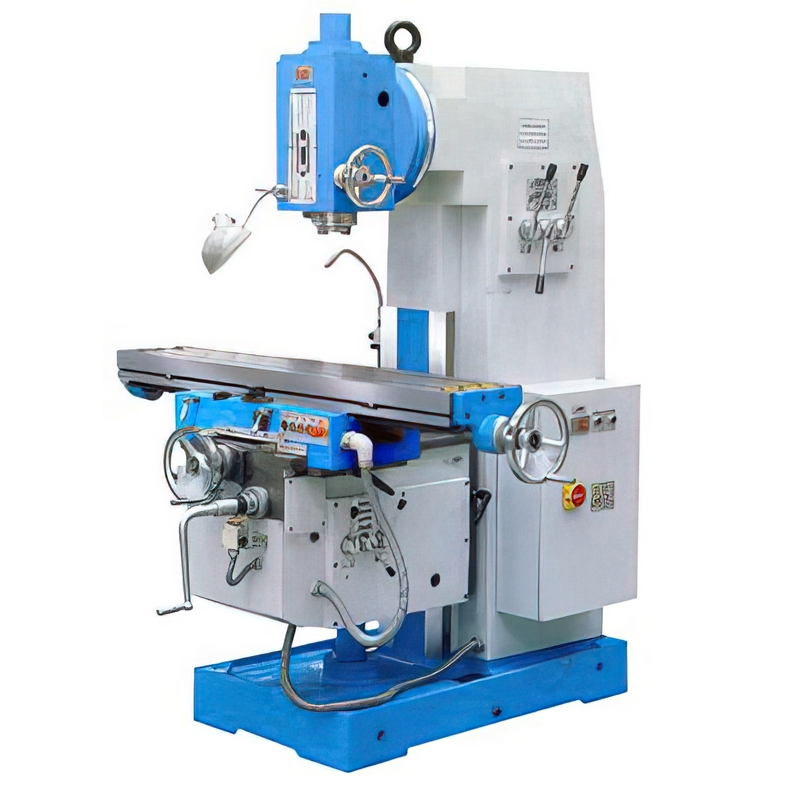

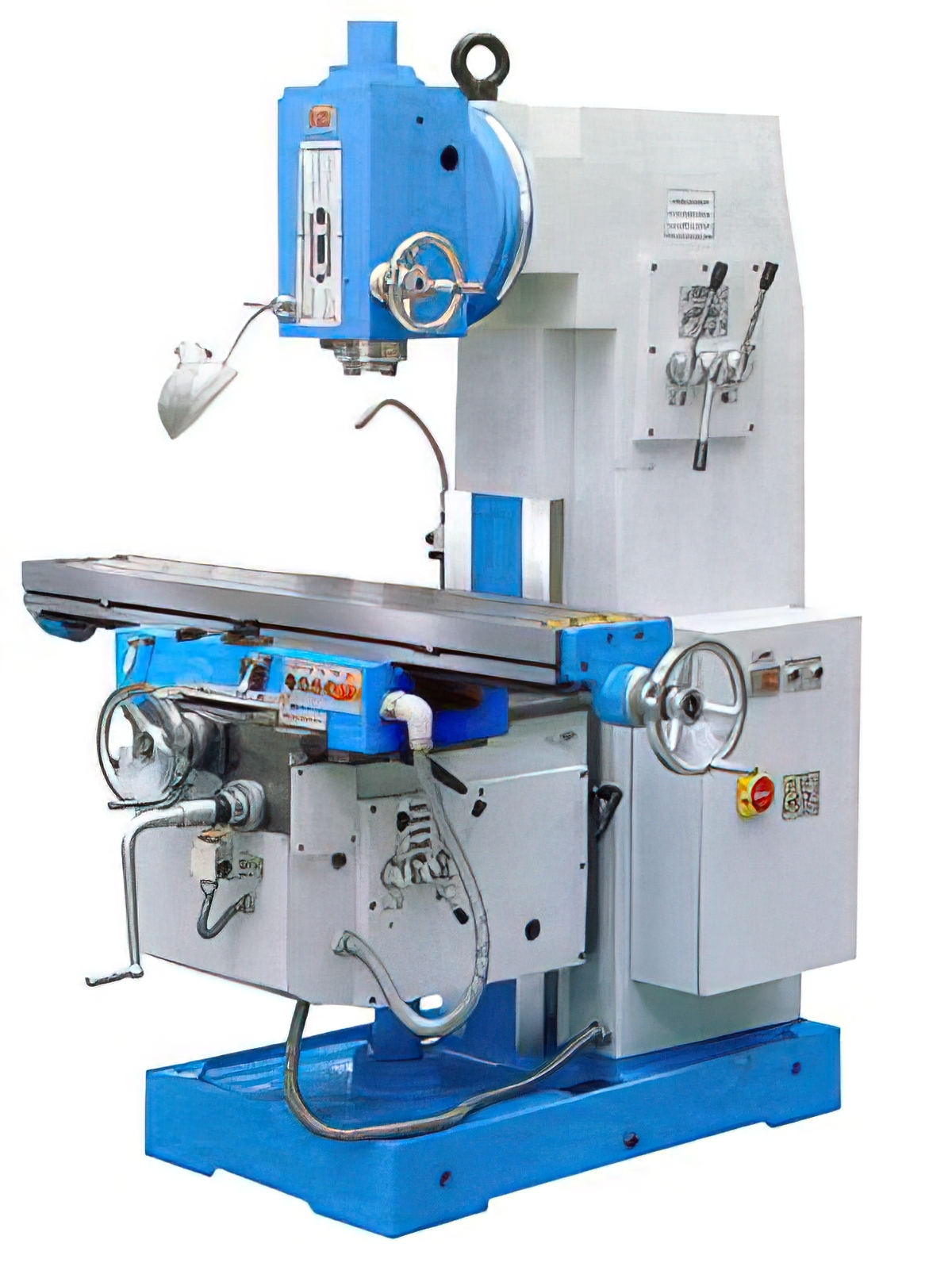

Model No. |
M5030 |
|
|
Item No. |
||
|
Specifications |
||
|
Table size |
300 x 1250 mm |
|
|
T slots |
3 x 14 x 63 mm |
|
|
Table travel (X,Y,Z) |
750 x 265 x 410 mm |
|
|
Feed speed steps |
12 Steps |
|
|
Table feed speed ranges: |
X |
15~800 mm/min. |
|
Y |
15~800 mm/min. |
|
|
Z |
6~270 mm/min. |
|
|
Table raped fee ranges: |
X |
2100 mm/min. |
|
Y |
2100 mm/min. |
|
|
Z |
880 mm/min. |
|
|
Vertical milling head rotary angle |
± 45° |
|
|
Distance from spindle nose to table |
60~470 mm |
|
|
Distance from spindle center to column |
290 mm |
|
|
Spindle taper |
7:24 ISO40 |
|
|
Spindle stroke |
70 mm |
|
|
Spindle hole |
Φ29 |
|
|
Arbor diameter |
Φ27 mm |
|
|
Spindle speed steps |
12 |
|
|
Spindle speed range |
35 ~ 1600 r/min. |
|
|
Main motor power |
4 kw |
|
|
Feed motor power |
750W |
|
|
Coolant pump power |
120W |
|
|
Overall dimension |
1650 x 1540 x 1920 mm |
|
|
Net weight |
1750 kg |
|
