Milling Machine

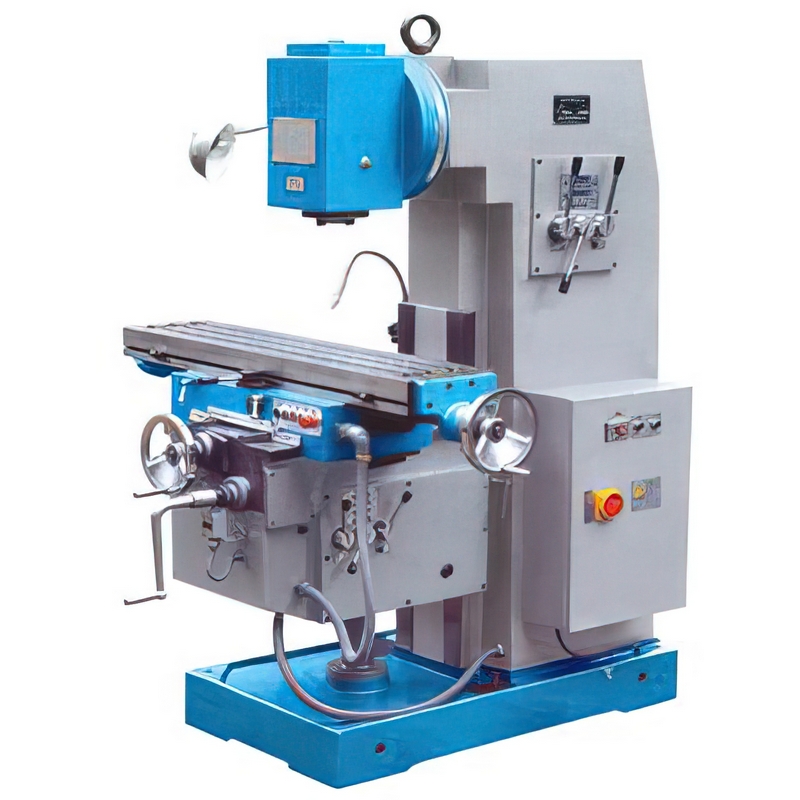

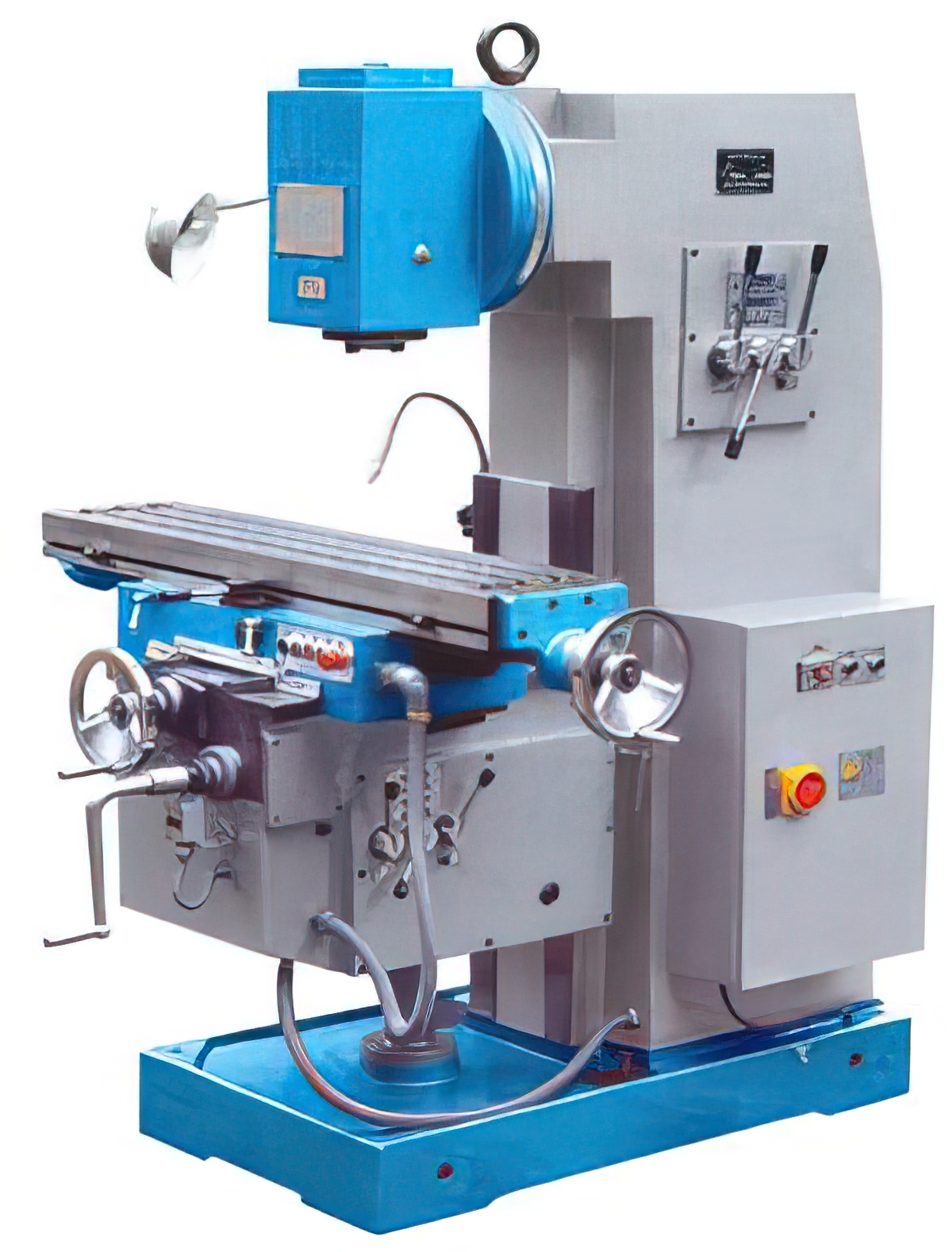

M5025 Knee-type Milling Machine



  Model No.

M5025

    Item No.



 Specifications

 Table size

250 x 1100 mm

 T slots

3 x 14 x 63 mm

 Table travel (X,Y,Z)

720 x 265 x 410 mm

 Feed speed steps

12 Steps

 Table feed speed ranges:

 X

12~560 mm/min.

 Y

12~560 mm/min.

 Z

5~226 mm/min.

 Table raped fee ranges:

 X

1780 mm/min.

 Y

1780 mm/min.

 Z

720 mm/min.

 Vertical milling head rotary angle

± 45°

 Distance from spindle nose to table

60~470 mm

 Distance from spindle center to column

290 mm

 Spindle taper

7:24 ISO40

 Spindle stroke

 Spindle hole

 Arbor diameter

Φ22 mm

 Spindle speed steps

12

 Spindle speed range

35 ~ 1600 r/min.

 Main motor power

4 kw

 Feed motor power

750W

 Coolant pump power

120W

 Overall dimension

1670 x 1350 x 1800 mm

 Net weight

1550 kg
