Model No.

M25 / M25V

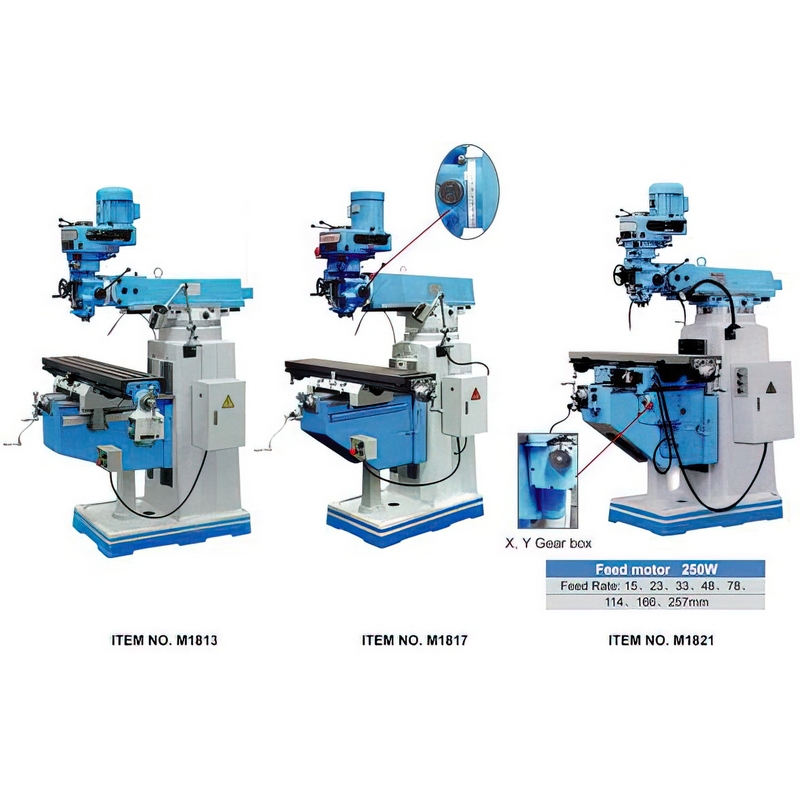

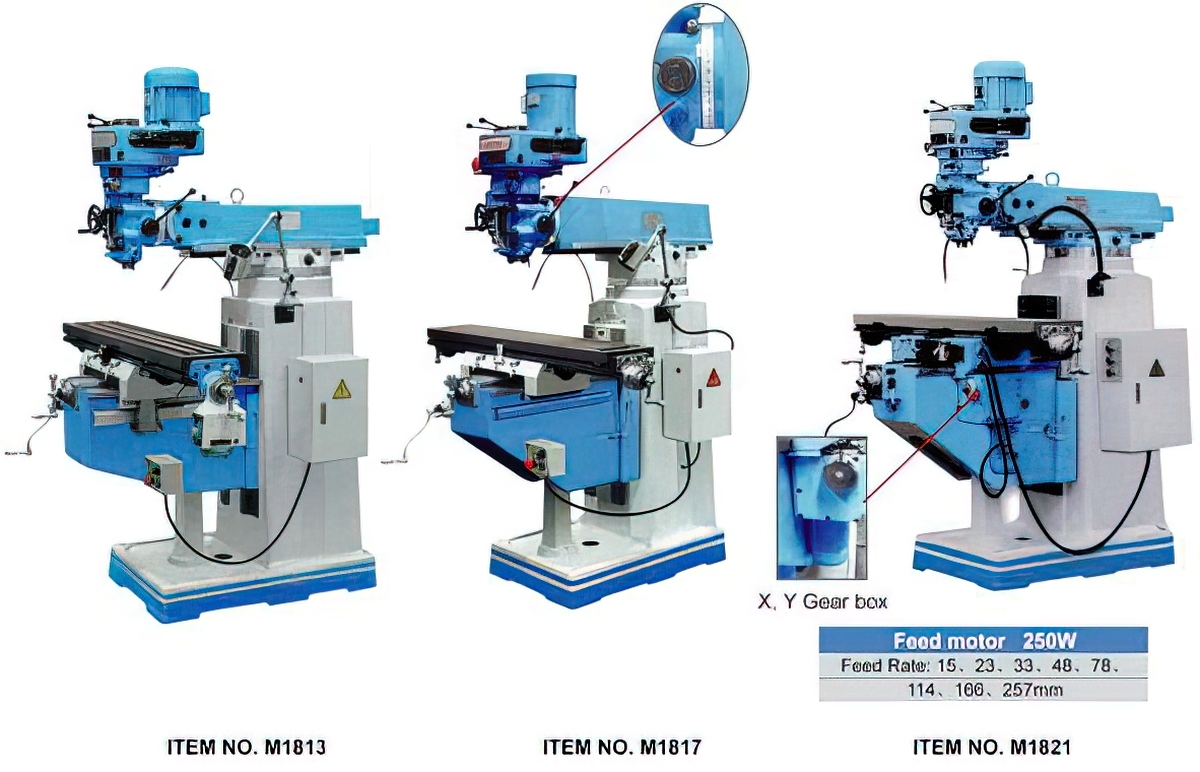

    Item No.

M1811/12

M1813/14

M1815/16

M1817/18

M1819/20

M1821/22

　Specifications

　Table size

1270 (1370) x 254 mm

1270 x 250mm

　Table travel (X,Y) mm

  850(950)x400mm

850(950)x420mm

850(950)x400mm

 770 x 420mm

　Vertical travel

420 mm

 400 mm

　T-slot

3 x 16 mm

　Ram travel

470 mm

　Distance spindle nose to

　table

0~405 mm

　Spindle taper

R8 (Optional ISO30/ISO40)

ISO40

R8(Optional ISO30/ISO40)

　Spindle stroke

127 mm

　Step of spindle speeds

16Kinds / Variable

　Range of spindle speeds

16 steps, 65~4500 rpm /

(Optional variable 65-4500 rpm)

65~4500 rpm/

(Optional variable 65~3750rpm)

　Automatic spindle feed

3 steps 0.04/0.08/0.15 mm/rev.

　Spindle motor

2.25 kw

3.75 kw

2.25 kw

　Head swivel (L&R)

90°

 Head tilt (Back&Forward)

45°

FIX

 45°

　Y-axis guideway

Dovetail

Rectangular

　Z-axis guideway

Dovetail

Rectangular

　Packing size

1516 x 1550 x 2080mm

　Net weight

1380 kg

1420 kg

1550 kg

1590 kg

1590 kg

1650 kg
