Milling Machine

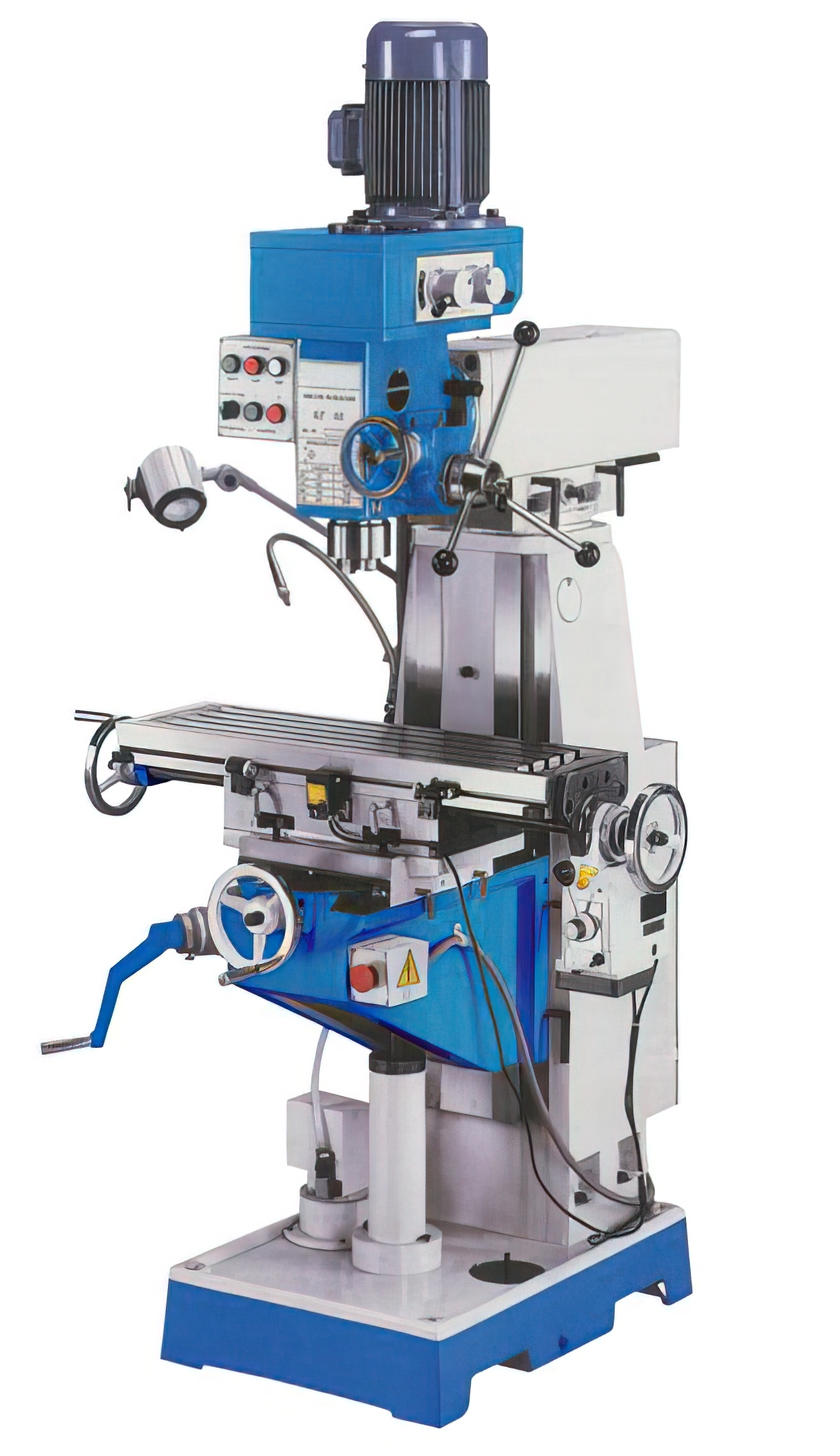

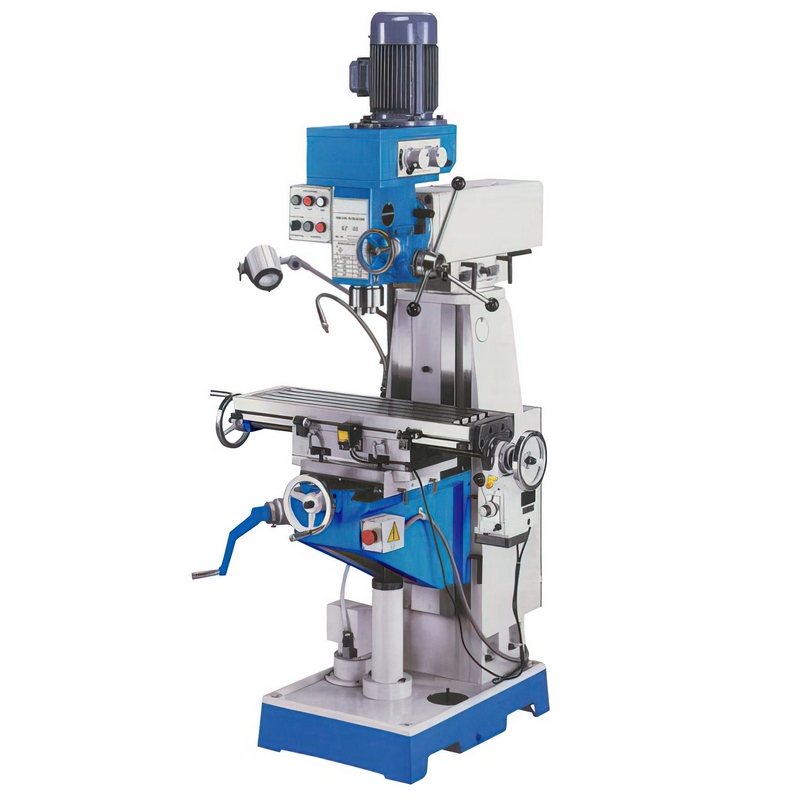

M7550 (Belt / Gear) Milling Drilling Machine



 Model No.0F

M7550

    Item No.





 Specifications

Belt drive

Gear drive

 Table size

800 x 240 mm

 Table travel (X,Y)

380x200mm(manual) /180mm(power feed) /150mm(swivel table)

 Knee travel

360 mm

 T-slot

5 x 14 - 44 mm

 Ram travel

550 mm

Vertical Spindle:

 Distance spindle nose to table

70 ~ 420 mm

 Spindle taper

ISO40

 Spindle stroke

120 mm

 Step of spindle speeds

9

8

 Range of spindle speeds

220~2400 rpm

115~1750 rpm

 Spindle motor

0.85/1.5 kw

 Head swivel (L&R)

±45°

 Horizontal Spindle:

 Spindle taper

 Step of spindle speeds

 Range of spindle speeds

 Spindle motor

 Distance spindle center to table

 Distance Spindle cneter to ram

 Overall Dimension

1290 x 1140 x 2100 mm

 Net weight

610 kg
