Milling Machine

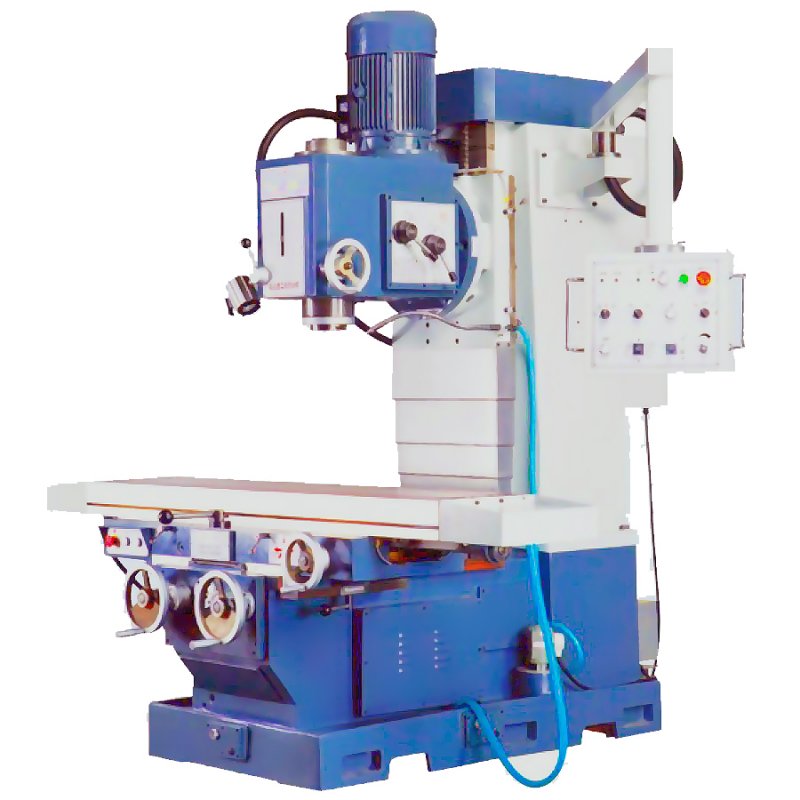

M7150 Bed-type Milling Machine



  Model No.

M7150

    Item No.



 Specifications

 Table size

2000 x 400 mm

 Table travel (X,Y)

1500 x 550 mm

 Vertical travel of headstock

100-650 mm

 Number/width/distance of T-slot

3-18-100 mm

 Max. load of table

2000 kg

 Feed speed

20-2000 mm/min

 Rapid feed speed

3500 mm/min

 Spindle speed range

66-1440 rpm

 Spindle speed step

12 steps

 Distance from soindle axis to column guideway

600 mm

 Spindle motor power

7.5 kw

 Overall dimension

3000 x 2285 x 2340

 Machine weight

4500 kg







Ask about this product
