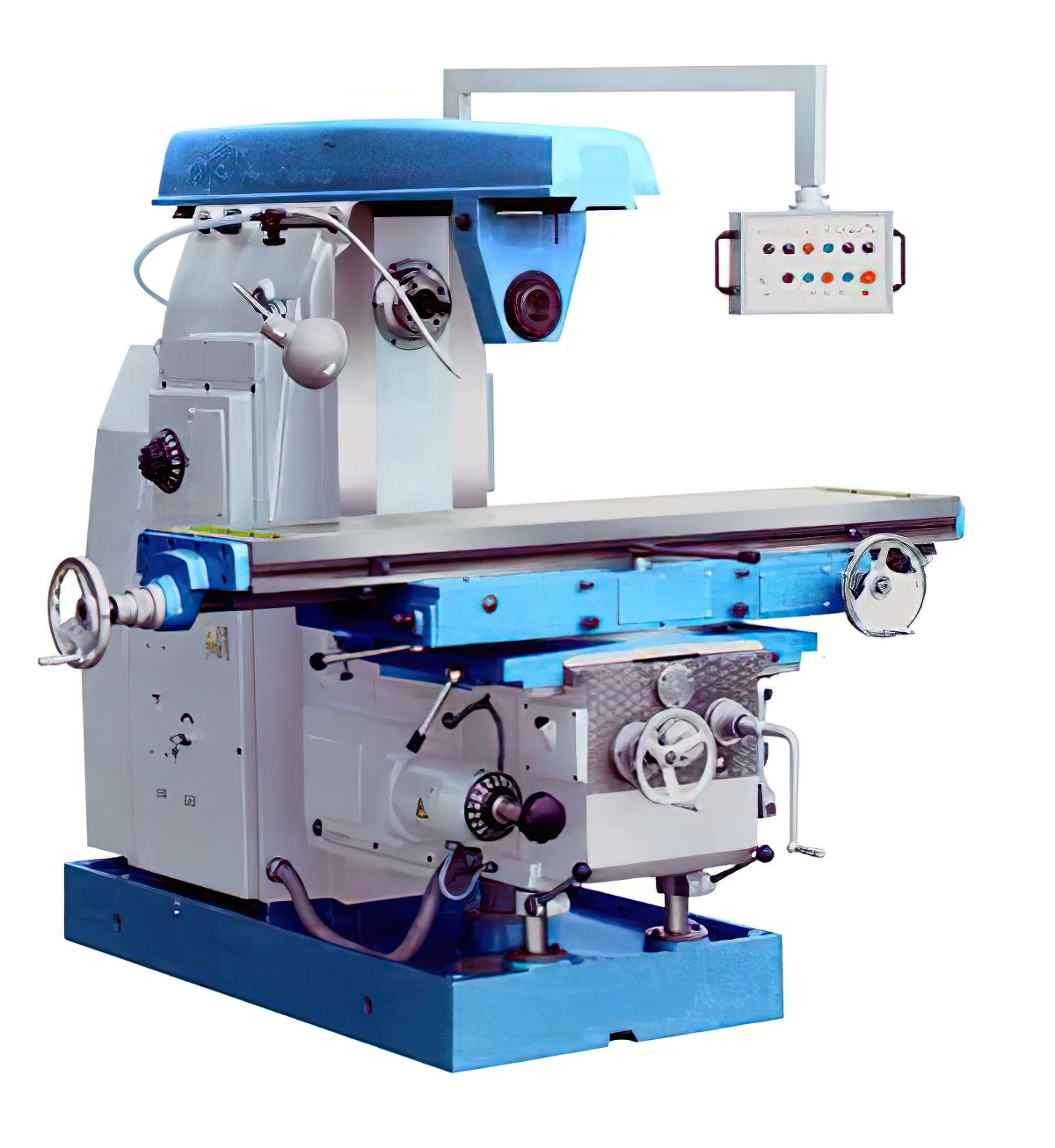

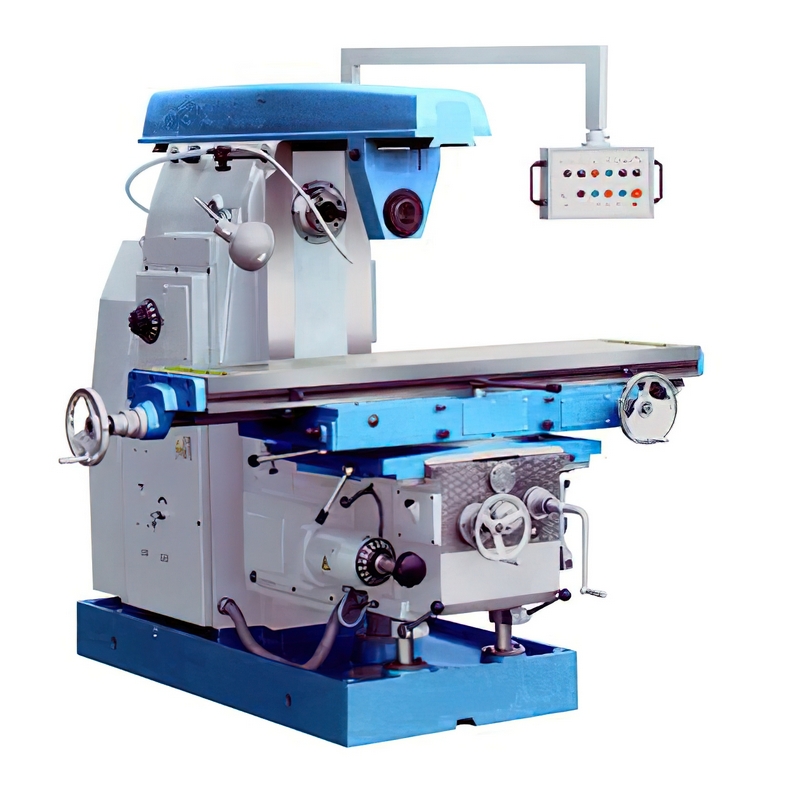

Model No. |
M6142 |
||
|
Item No. |
|||
|
Specifications |
|||
|
Table size |
420 x 1800 mm |
||
|
T slots |
3 x 18 x 90 mm |
||
|
Table Load-bearing |
800 kg |
||
|
Max. lotary angle of table |
± 45° |
||
|
Table travel (X,Y,Z) (Manual / power) |
1280x360x470/1250x350x450 mm |
||
|
Feed speed steps |
18 steps |
||
|
Table feed speed ranges: |
X |
22~1100 mm/min. |
|
|
Y |
22~1100 mm/min. |
||
|
Z |
8.3~410 mm/min. |
||
|
Table raped fee ranges: |
X |
2400 mm/min. |
|
|
Y |
2400 mm/min. |
||
|
Z |
900 mm/min. |
||
|
Distance from spindle end to table |
40~510 mm |
||
|
Distance between table center to vertical guide way |
280~650 mm |
||
|
Distance between spindle center to arm |
155 mm |
||
|
Spindle taper |
7:24 ISO50 |
||
|
Spindle hole |
Φ29 |
||
|
Arbor diameter |
Φ32 Φ50 mm |
||
|
Spindle speed steps |
18 steps |
||
|
Spindle speed range |
30 ~ 1500 r/min. |
||
|
Main motor power |
11 kw |
||
|
Feed motor power |
3 kw |
||
|
Coolant pump power |
120W |
||
|
Overall dimension |
2522 x 2265 x 2047 mm |
||
|
Net weight |
5000 kg |
||
