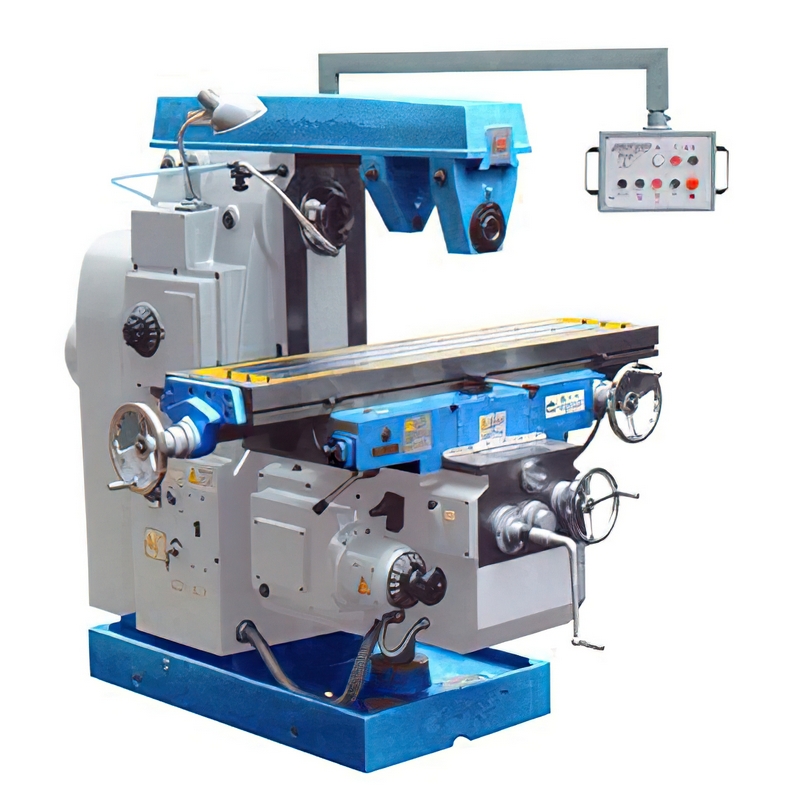

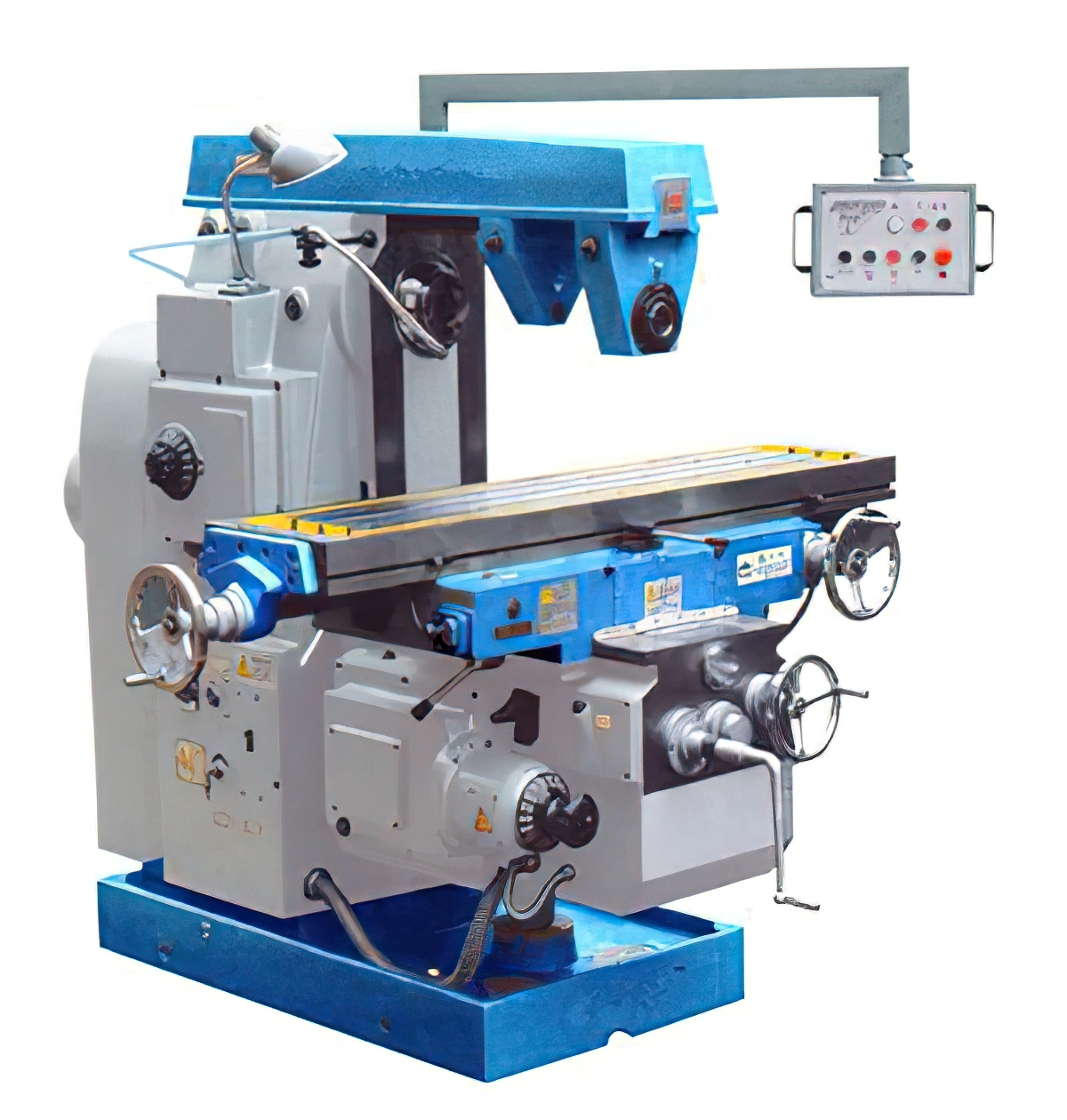

Model No.

M6036

    Item No.

　Specifications

　Table size

360 x 1600 mm

　T slots

3 x 18 x 80 mm

　Table Load-bearing

550 kg

　Max. lotary angle of table

± 45°

　Table travel (X,Y,Z) (Manual / power)

1020x300x410/1000x280x400 mm

　Feed speed steps

18 steps

　Table feed speed ranges:

　X

15~750 mm/min.

　Y

15~750 mm/min.

　Z

5.7~280 mm/min.

　Table raped fee ranges:

　X

2250 mm/min.

　Y

2250 mm/min.

　Z

844 mm/min.

　Distance from spindle end to table

50~450 mm

　Distance between table center to vertical guide way

235~535 mm

　Distance between spindle center to arm

155 mm

　Spindle taper

7:24 ISO50

　Spindle hole

Φ29

　Arbor diameter

Φ22 Φ27 Φ32 mm

　Spindle speed steps

18 steps

　Spindle speed range

30 ~ 1500 r/min.

　Main motor power

7.5 kw

　Feed motor power

1.5 kw

　Coolant pump power

120W

　Overall dimension

2327 x 2028 x 2096 mm

　Net weight

3370 kg
