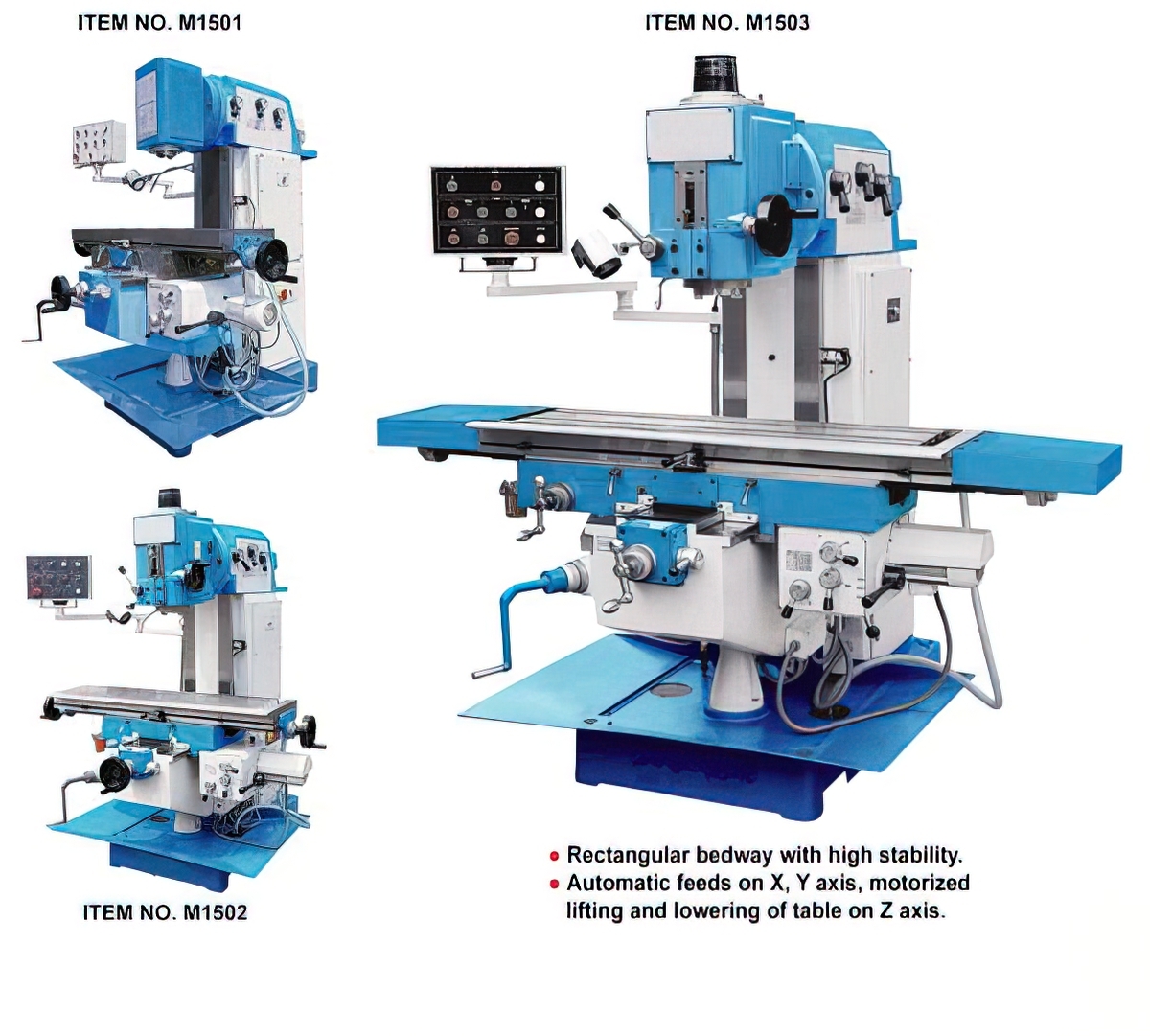

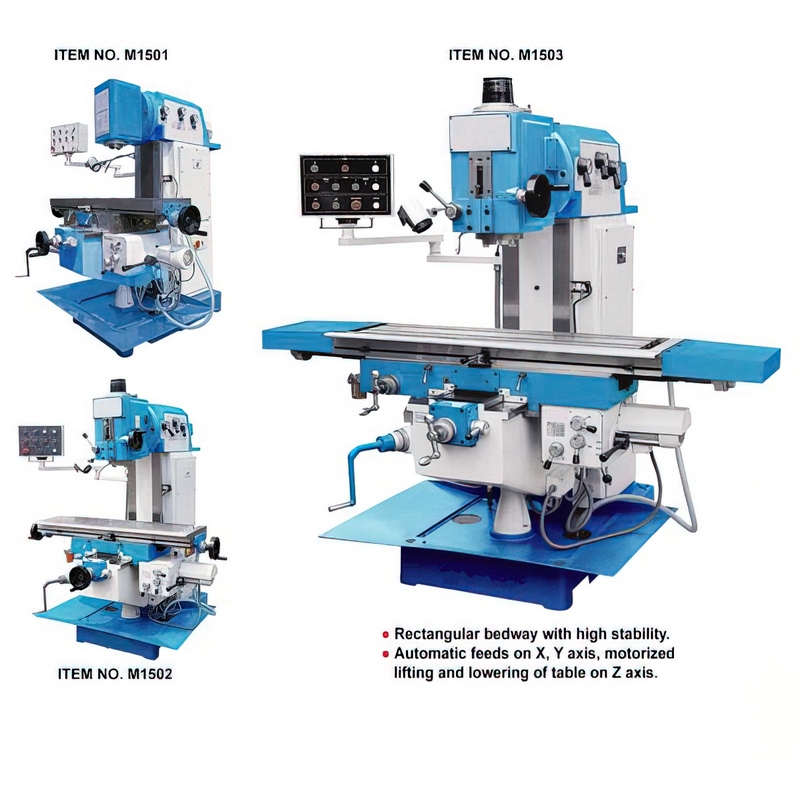

Model No.

M5032D

    Item No.

M1501

M1502

M1503

　Specifications

　Table size

1320x320 mm

　Table travel (X,Y)

750 x 300 mm

750 x 300 mm

1000 x 300 mm

　Knee travel

400 mm

　Table power feed speed range (X)

20 ~ 360 mm/min

　Table power feed speed range (Y)

20 ~ 360 mm/min

　Knee rapid speed

400 mm/min

　T-slot

5x14-63

　Distance from spindle nose to table

45 ~ 445 mm

35 ~ 435 mm

35 ~ 435 mm

　Distance from spindle axis to column

320 mm

360 mm

360 mm

　Spindle taper

ISO50

　Spindle stroke

－

70 mm

70 mm

　Step of spindle speeds

12

　Range of spindle speeds

58 ~ 1710 rpm

　Head swivel

±35°

　Spindle motor

4 kw

　Overall dimension (mm)

1770x1820x1880

1770x1820x1880

2020x1820x1880

　Net weight

2300 kg

2300 kg

2300 kg
