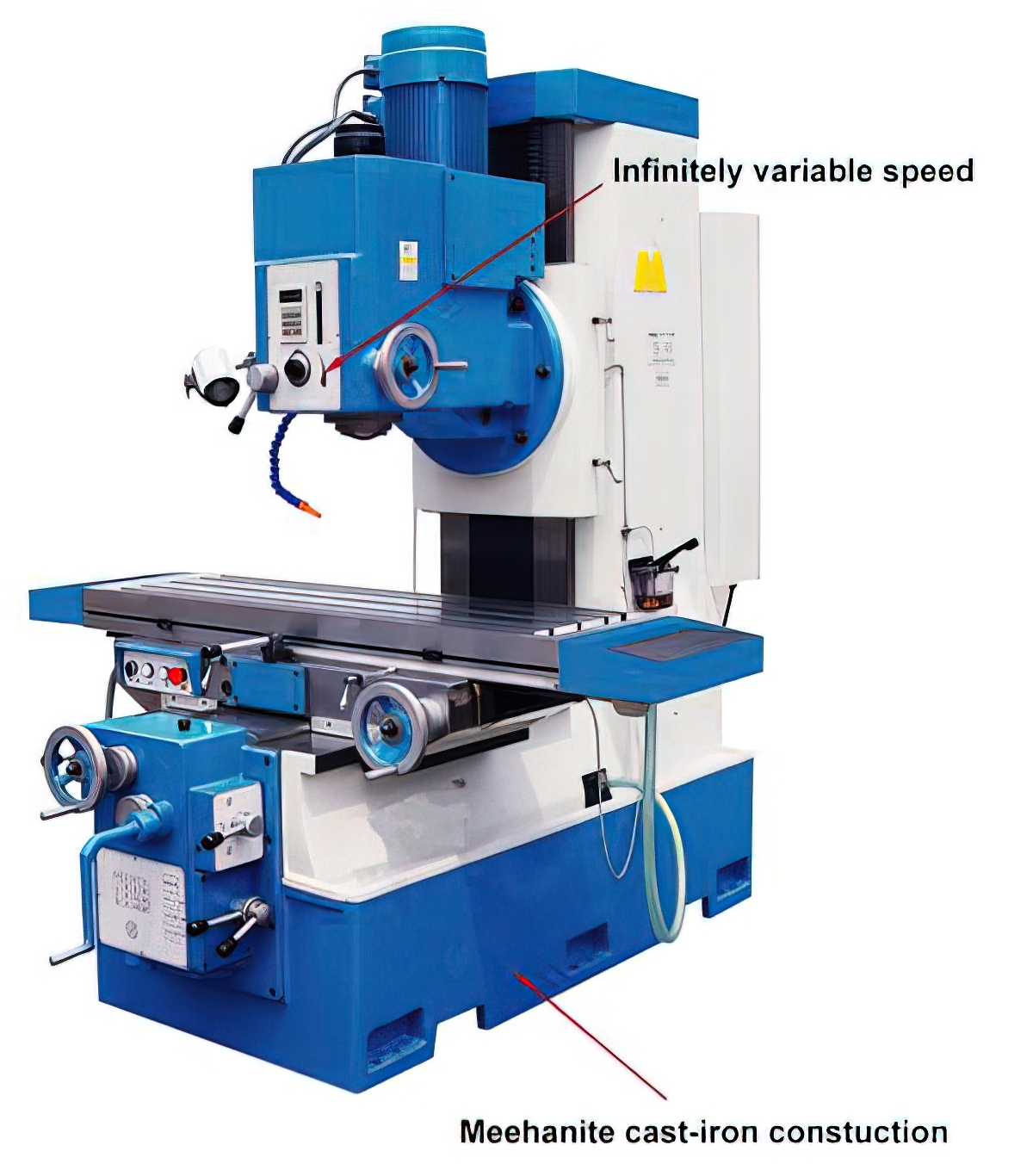

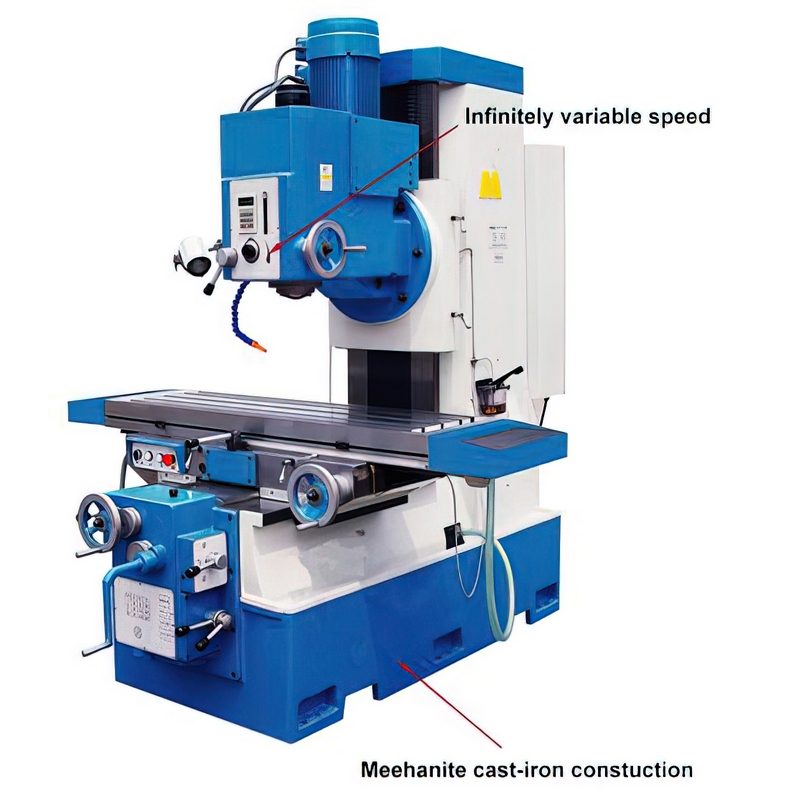

Model No. |
M7140 |
|
Item No. |
|
|
Specifications |
|
|
Table size |
1400 x 400 mm |
|
Table travel (X,Y) |
800 x 400 mm |
|
Table power feed speed range (X) |
18 ~ 627 mm/min |
|
Table power feed speed range (Y) |
18 ~ 627 mm/min |
|
Headstock feed speed range (Z) |
18 ~ 627 mm/min |
|
T-slot |
3 x18 - 100 mm |
|
Distance from spindle nose to table |
150 ~ 650 mm |
|
Distance from spindle axis to column |
525 mm |
|
Spindle taper |
ISO50 |
|
Spindle stroke |
105 mm |
|
Step of spindle speeds |
Variable |
|
Range of spindle speeds |
18 ~ 1800 rpm |
|
Head swivel |
±30° |
|
Automatic spindle feed |
－ |
|
Spindle motor |
7.5 kw |
|
Overall dimension |
2290 x 2040 x 2120 mm |
|
Net weight |
3860 kg |
