Milling Machine

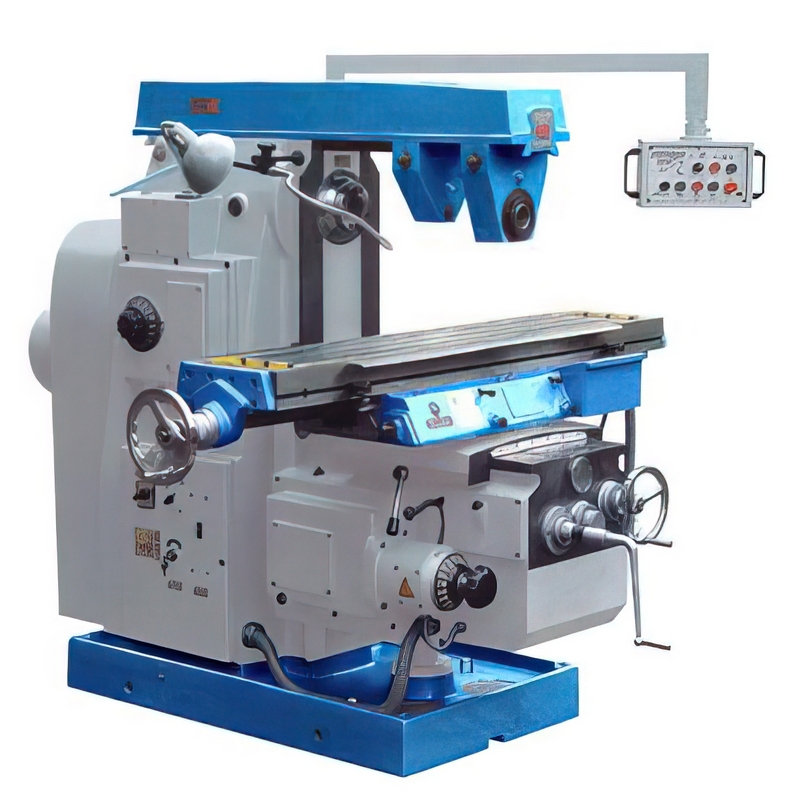

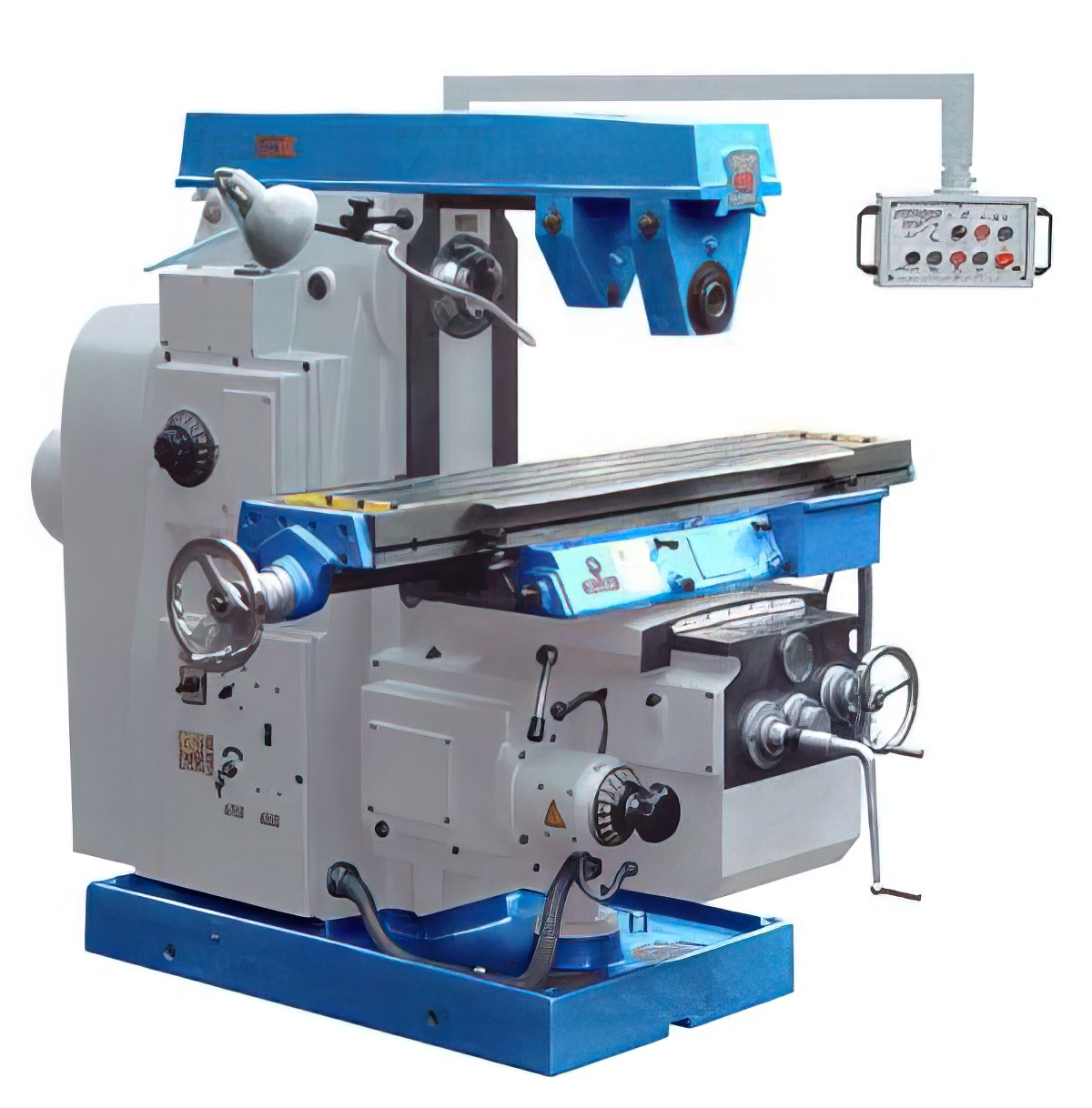

M6132L Knee-type Milling Machine



 Model No.

M6132L

    Item No.



 Specifications

 Table size

320 x 1600 mm

 T slots

3 x 18 x 80 mm

 Table Load-bearing

550 kg

 Max. lotary angle of table

± 45°

 Table travel (X,Y,Z) (Manual / power)

1020x300x410/1000x280x400 mm

 Feed speed steps

18 steps

 Table feed speed ranges:

 X

15~750 mm/min.

 Y

15~750 mm/min.

 Z

5.7~280 mm/min.

 Table raped fee ranges:

 X

2250 mm/min.

 Y

2250 mm/min.

 Z

844 mm/min.

 Distance from spindle end to table

30~440 mm

 Distance between table center to vertical guide way

235~535 mm

 Distance between spindle center to arm

155 mm

 Spindle taper

7:24 ISO50

 Arbor diameter

Φ22 Φ27 Φ32 mm

 Spindle speed steps

18 steps

 Spindle speed range

30 ~ 1500 r/min.

 Main motor power

7.5 kw

 Feed motor power

1.5 kw

 Overall dimension

2327 x 2067 x 1720 mm

 Net weight

3350 kg
