Milling Machine

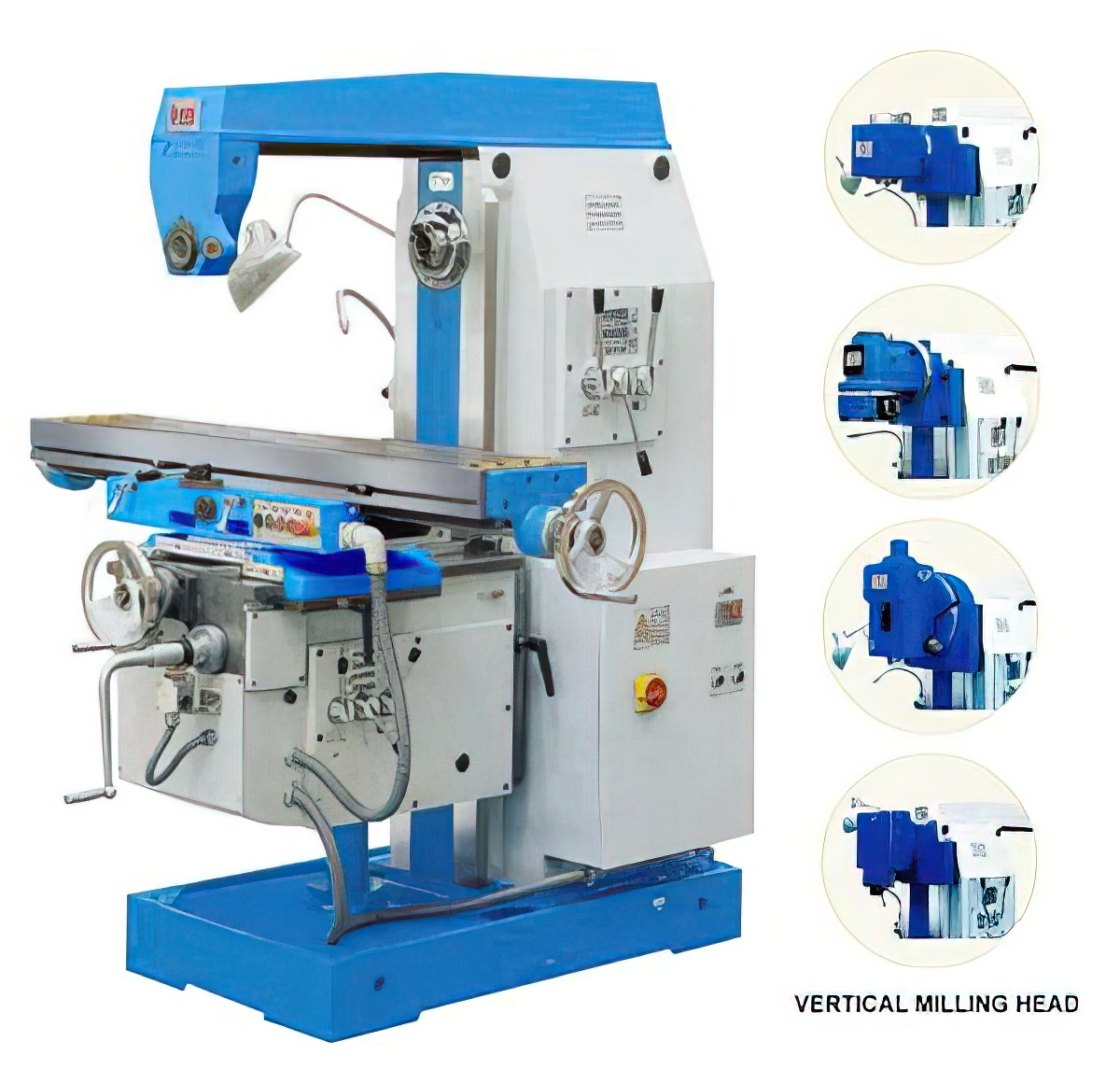

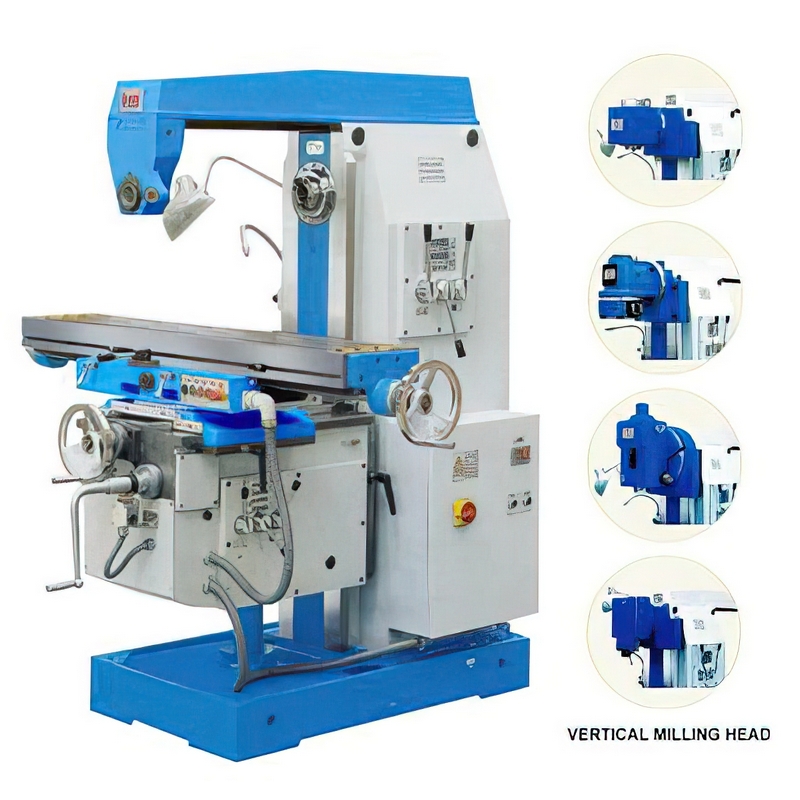

M6125 / M6130 Knee-type Milling Machine



  Model No.

M6125

M6130

    Item No.





 Specifications

 Table size

250 x 1250 mm

300 x 1250 mm

 T slots

3 x 14 x 63 mm

 Table Load-bearing

250 kg

 Max. lotary angle of table

± 45°

 Table travel (X,Y,Z) (Manual / power)

800 x 235 x 440 mm

 Feed speed steps

12 steps

 Table feed speed ranges:

(X) 15~800 mm/min.

(y) 15~800 mm/min.

(Z) 6~270 mm/min.

 Table raped fee ranges:

(X) 2100 mm/min.

(Y) 2100 mm/min.

 (Z) 880 mm/min.

 Distance from spindle end to table

30~470 mm

 Distance between spindle center to arm

161 mm

 Spindle taper

7:24 ISO40

 Spindle hole

Φ29

 Arbor diameter

Φ22 Φ27 mm

 Spindle speed steps

12 steps

 Spindle speed range

35 ~ 1600 r/min.

 Main motor power

4 kw

 Feed motor power

750W

 Coolant pump power

-

 Overall dimension

1650 x 1540 x 1720 mm

 Net weight

1650 kg

1700 kg
