Milling Machine

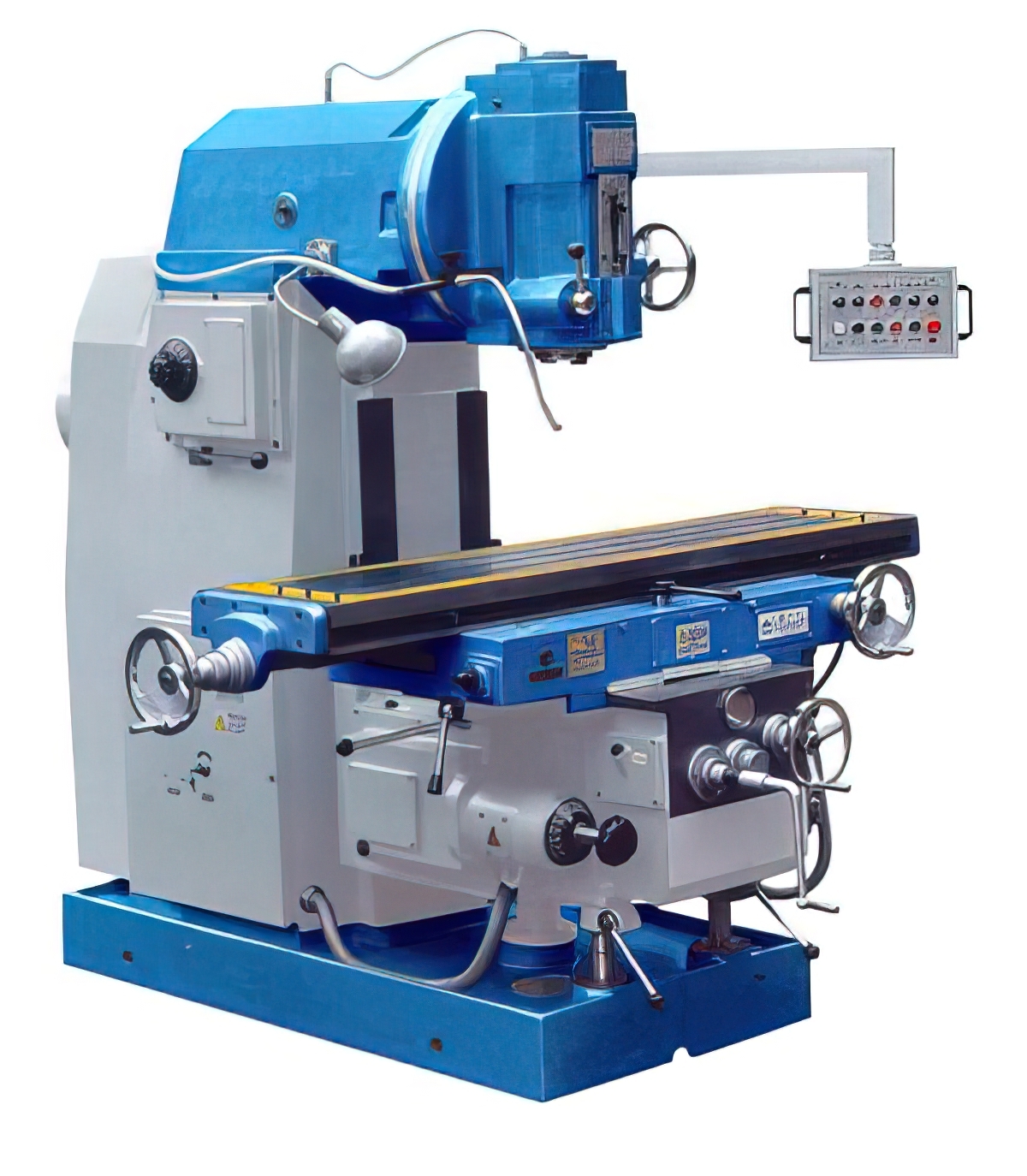

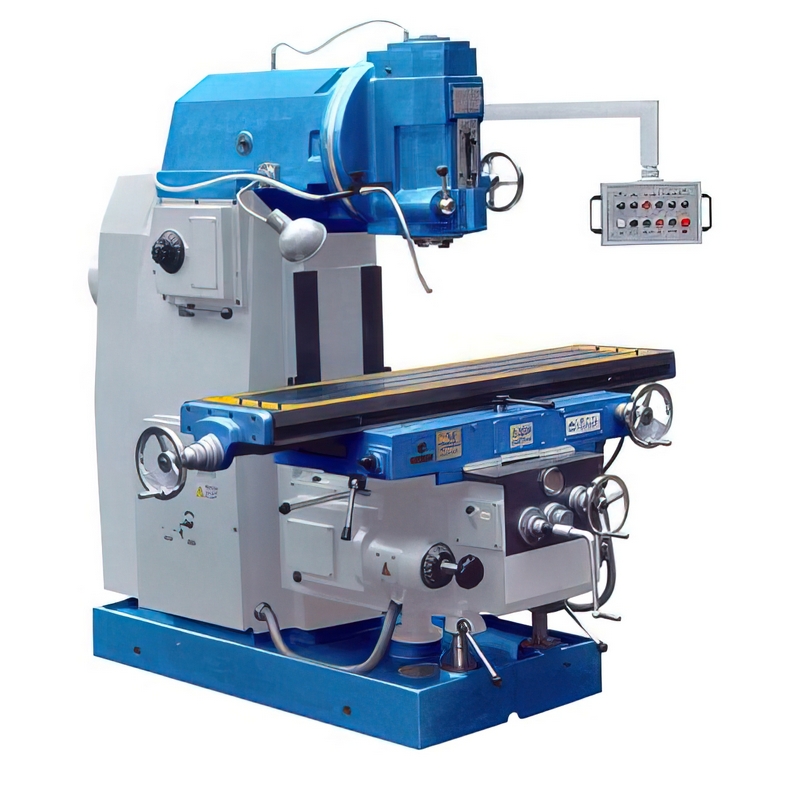

M5042 Knee-type Milling Machine



  Model No.

M5042

    Item No.



 Specifications

 Table size

420 x 1800 mm

 T slots

3 x 18 x 90 mm

 Table Load-bearing

800 kg

 Table travel (X,Y,Z) (Manual / power)

1280x360x470/1250x350x450 mm

 Feed speed steps

18 Steps.

 Table feed speed ranges:

 X

22~1100 mm/min

 Y

22~1100 mm/min.

 Z

8.3~410 mm/min.

 Table raped fee ranges:

 X

2400 mm/min.

 Y

2400 mm/min.

 Z

900 mm/min.

 Vertical milling head rotary angle

± 45°

 Distance from spindle center to vertical guide way

450 mm

 Distance from table center to vertical guide way

275~655 mm

 Distance from spindle nose to worktable surface

40~510 mm

 Spindle taper

7:24 ISO50

 Spindle stroke

85 mm

 Arbor diameter

Φ32 Φ50 mm

 Spindle speed steps

18 steps

 Spindle speed range

30 ~ 1500 r/min.

 Main motor power

11 kw

 Feed motor power

3 kw

 Overall dimension

2522 x 2265 x 2432 mm

 Net weight

5000 kg



Ask about this product
