Milling Machine

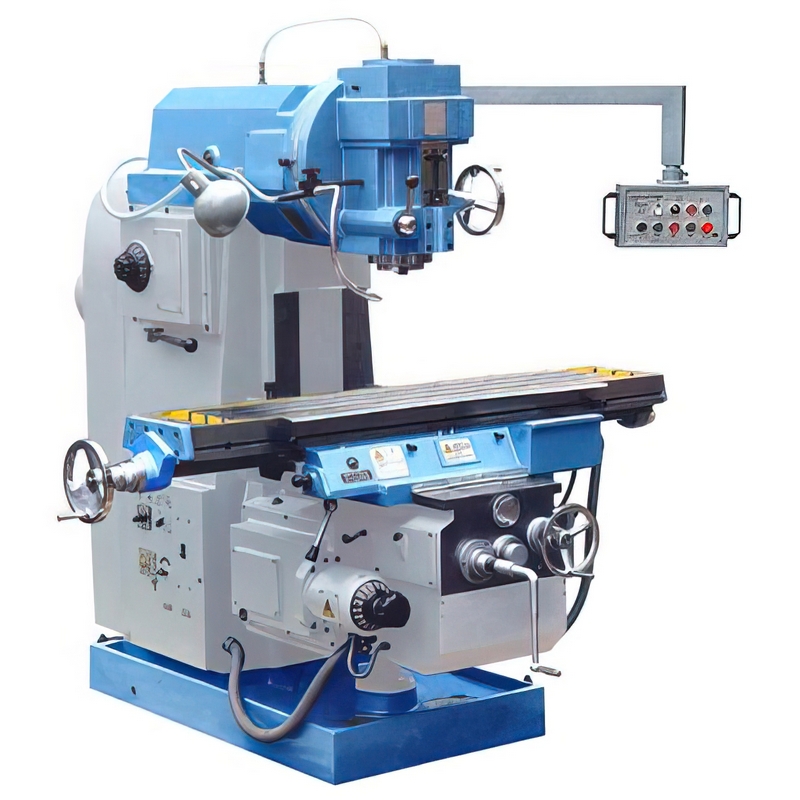

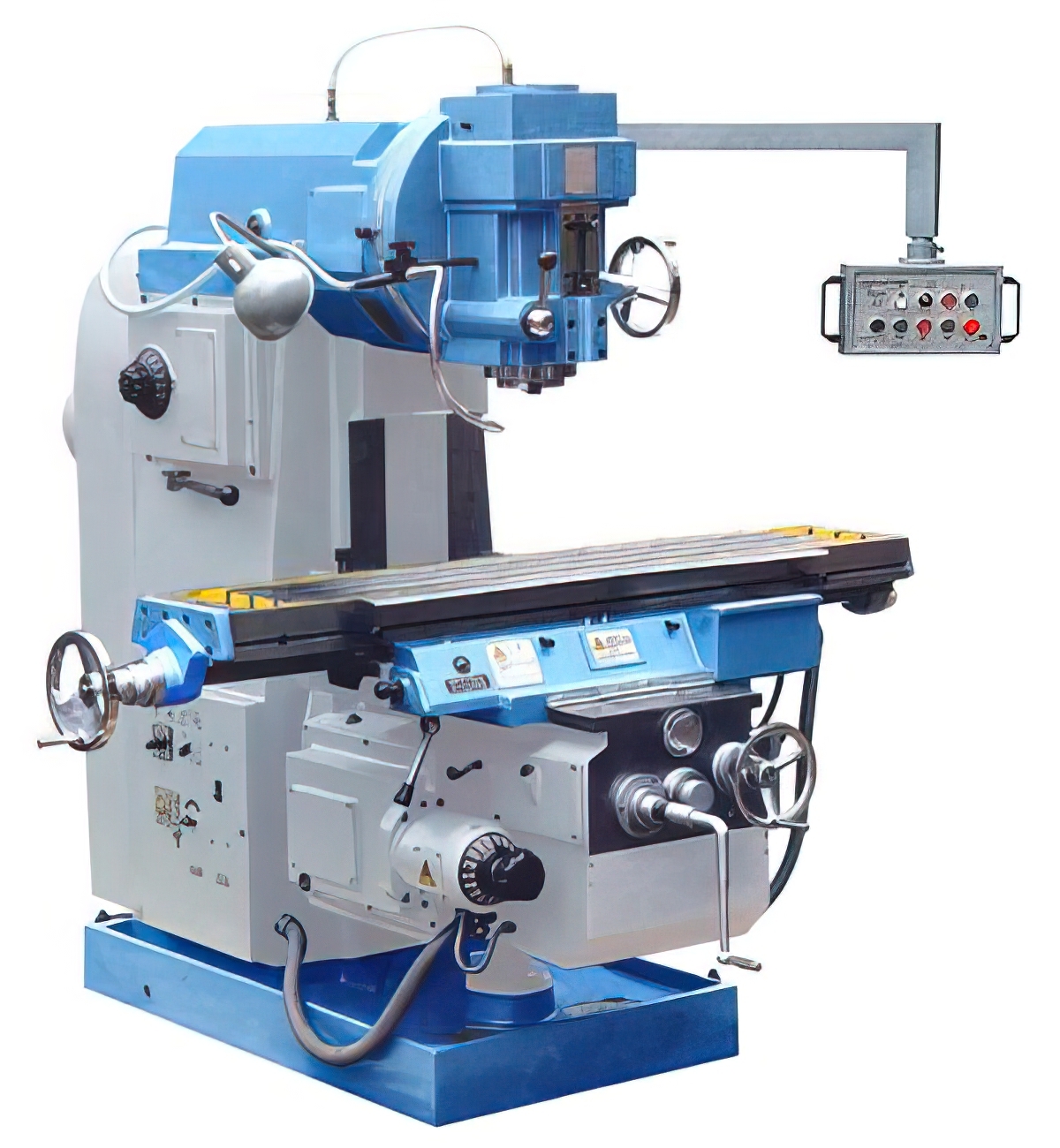

M5032B Knee-type Milling Machine



  Model No.

M5032B

    Item No.



 Specifications

 Table size

320 x 1600 mm

 T slots

3 x 18 x 80 mm

 Table Load-bearing

550 kg

 Table travel (X,Y,Z) (Manual / power)

1020x300x410/1000x280x400 mm

 Feed speed steps

18 Steps

 Table feed speed ranges:

 X

15~750 mm/min.

 Y

15~750 mm/min.

 Z

5.7~280 mm/min.

 Table raped fee ranges:

 X

2250 mm/min.

 Y

2250 mm/min.

    Z

844 mm/min.

 Vertical milling head rotary angle

± 45°

 Distance from spindle nose to table

60~470 mm

 Distance from spindle center to column

235-535 mm

 Spindle taper

7:24 ISO50

 Spindle stroke

75 mm

 Arbor diameter

Φ32 Φ40 mm

 Spindle speed steps

18 Stapes

 Spindle speed range

30 ~ 1500 r/min.

 Main motor power

7.5 kw

 Feed motor power

1.5 kw

 Coolant pump power

120W

 Overall dimension

2307 x 2067 x 2096 mm

 Net weight

3350 kg



Ask about this product
