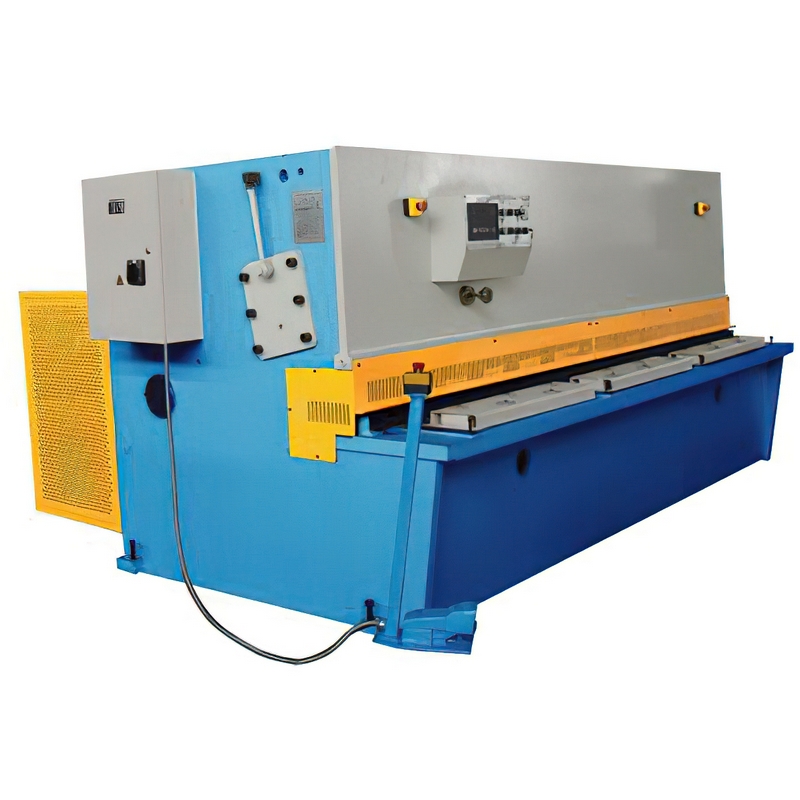

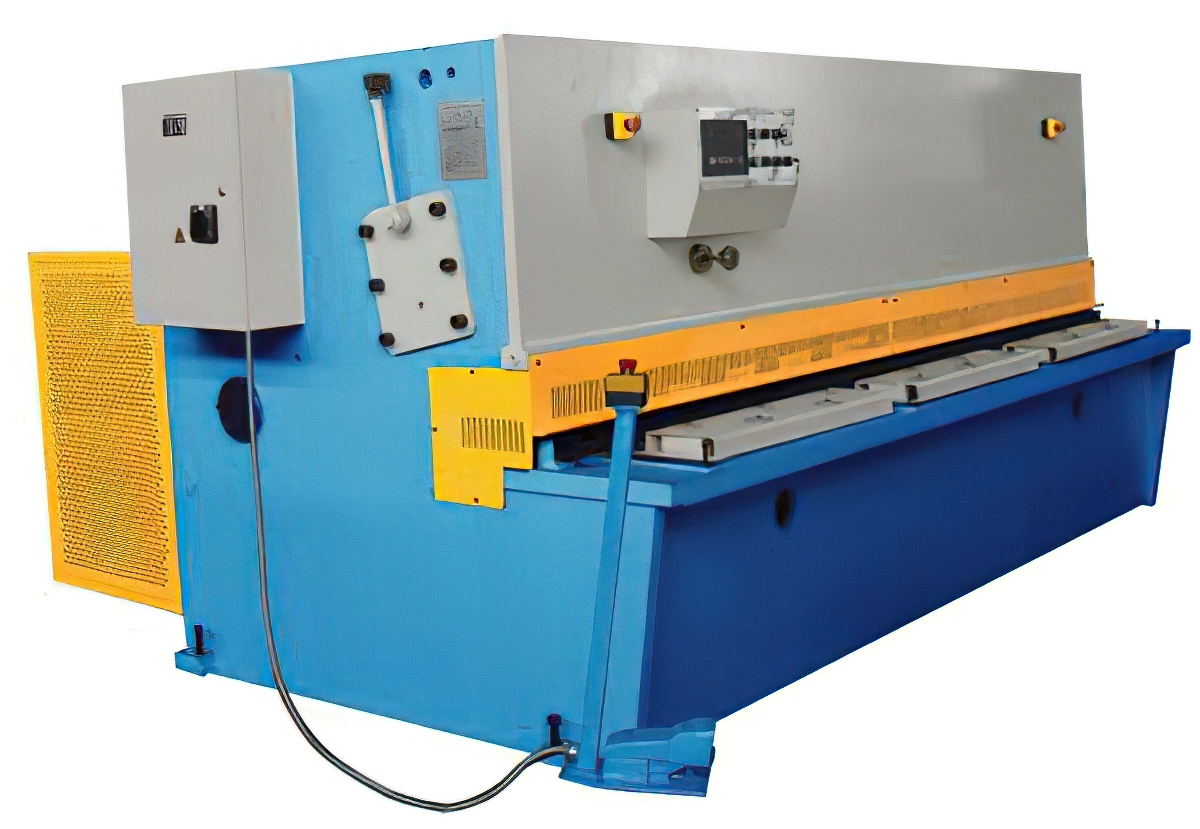

QC12Y HYDRAULIC SWING BEAM SHEARING MACHINE
FEATURES:
●Welded frame stress relived for reliability
●Hydraulic drive, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder
●Manual adjustable blade clearance
●Front and side safety guards
●Back gauge with two photo-electric
●Swing up electric back gauge
●Chinese high quality gear pump
●American OMG valve,
●Japanese sealing rings,
●E10 LCD Display,
●CE electrical components
|
Model No. |
QC12Y |
QC12Y |
QC12Y |
QC12Y |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Max. Shearing Thickness (mm) |
4 mm |
4 mm |
4 mm |
4 mm |
|
Max.Shearing Width (mm) |
2000 mm |
2500 mm |
3200 mm |
4000 mm |
|
Shearing Angle (°) |
1°30′ |
1°30′ |
1°30′ |
1°30′ |
|
Number of Stroke (min)-1 |
20 |
20 |
18 |
18 |
|
Backgauge Rang (mm) |
20~600 mm |
20~480 mm |
20~600 mm |
20~600 mm |
|
Motor Power |
4 kw |
4 kw |
5.5 kw |
5.5 kw |
|
Net Weight (kg) |
- |
3800 kg |
5600 kg |
7000 kg |
|
PackingSize(cm) |
256x140x145 |
313x203x160 |
384x218x160 |
464x232x160 |
|
Model No. |
QC12Y |
QC12Y |
QC12Y |
QC12Y |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Max. Shearing Thickness (mm) |
4 mm |
6 mm |
6 mm |
6 mm |
|
Max.Shearing Width (mm) |
5000 mm |
2000 mm |
2500 mm |
3200 mm |
|
Shearing Angle (°) |
1°30′ |
1°30′ |
1°30′ |
1°30′ |
|
Number of Stroke (min)-1 |
14 |
20 |
18 |
16 |
|
Backgauge Rang (mm) |
20~600 mm |
20~600 mm |
20~600 mm |
20~600 mm |
|
Motor Power |
7.5 kw |
7.5 kw |
7.5 kw |
7.5 kw |
|
Net Weight (kg) |
- |
- |
5200 kg |
6500 kg |
|
PackingSize(cm) |
566x185x185 |
258x153x160 |
313x232x160 |
384x232x162 |
|
Model No. |
QC12Y |
QC12Y |
QC12Y |
QC12Y |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Max. Shearing Thickness (mm) |
6 mm |
6 mm |
6 mm |
8 mm |
|
Max.Shearing Width (mm) |
4000 mm |
5000 mm |
6000 mm |
2500 mm |
|
Shearing Angle (°) |
1°30′ |
1°30′ |
1°30′ |
1°30′ |
|
Number of Stroke (min)-1 |
14 |
8 |
6 |
14 |
|
Backgauge Rang (mm) |
20~600 mm |
20~600 mm |
20~600 mm |
20~600 mm |
|
Motor Power |
7.5 kw |
11 kw |
11 kw |
11 kw |
|
Net Weight (kg) |
8500 kg |
- |
16800 kg |
6200 kg |
|
PackingSize(cm) |
463x250x170 |
569x200x210 |
665x253x225 |
314x235x162 |
|
Model No. |
QC12Y |
QC12Y |
QC12Y |
QC12Y |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Max. Shearing Thickness (mm) |
8 mm |
8 mm |
8 mm |
10 mm |
|
Max.Shearing Width (mm) |
3200 mm |
4000 mm |
6000 mm |
2500 mm |
|
Shearing Angle (°) |
1°30′ |
1°30′ |
1°30′ |
1°30′ |
|
Number of Stroke (min)-1 |
12 |
10 |
6 |
14 |
|
Backgauge Rang (mm) |
20~600 mm |
20~600 mm |
20~600 mm |
20~600 mm |
|
Motor Power |
11 kw |
11 kw |
15 kw |
15 kw |
|
Net Weight (kg) |
7300 kg |
9600 kg |
17600 kg |
8500 kg |
|
PackingSize(cm) |
385x235x162 |
463x250x170 |
665x285x170 |
323x255x181 |
|
Model No. |
QC12Y |
QC12Y |
QC12Y |
QC12Y |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Max. Shearing Thickness (mm) |
10 mm |
10 mm |
10 mm |
12 mm |
|
Max.Shearing Width (mm) |
3200 mm |
4000 mm |
6000 mm |
2500 mm |
|
Shearing Angle (°) |
1°30′ |
1°30′ |
1°30′ |
1°30′ |
|
Number of Stroke (min)-1 |
12 |
10 |
6 |
12 |
|
Backgauge Rang (mm) |
20~600 mm |
20~600 mm |
20~600 mm |
20~900 mm |
|
Motor Power |
15 kw |
15 kw |
18.5 kw |
18.5 kw |
|
Net Weight (kg) |
9800 kg |
11000 |
23500 kg |
9600 kg |
|
PackingSize(cm) |
394x255x181 |
474x275x192 |
675x320x210 |
324x305x210 |
|
Model No. |
QC12Y |
QC12Y |
QC12Y |
QC12Y |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Max. Shearing Thickness (mm) |
12 mm |
12 mm |
12 mm |
12 mm |
|
Max.Shearing Width (mm) |
3200 mm |
4000 mm |
5000 mm |
6000 mm |
|
Shearing Angle (°) |
1°30′ |
1°30′ |
1°30′ |
1°30′ |
|
Number of Stroke (min)-1 |
10 |
8 |
8 |
5 |
|
Backgauge Rang (mm) |
20~900 mm |
20~900 mm |
20~800 mm |
20~900 mm |
|
Motor Power |
18.5 kw |
18.5 kw |
18.5 kw |
22 kw |
|
Net Weight (kg) |
12000 kg |
14500 kg |
- |
29500 kg |
|
PackingSize(cm) |
395x305x210 |
475x321x220 |
575x226x224 |
675x343x230 |
|
Model No. |
QC12Y |
QC12Y |
QC12Y |
QC12Y |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Max. Shearing Thickness (mm) |
16 mm |
16 mm |
16 mm |
16 mm |
|
Max.Shearing Width (mm) |
2500 mm |
3200 mm |
4000 mm |
6000 mm |
|
Shearing Angle (°) |
2° |
2° |
2° |
2° |
|
Number of Stroke (min)-1 |
12 |
10 |
8 |
6 |
