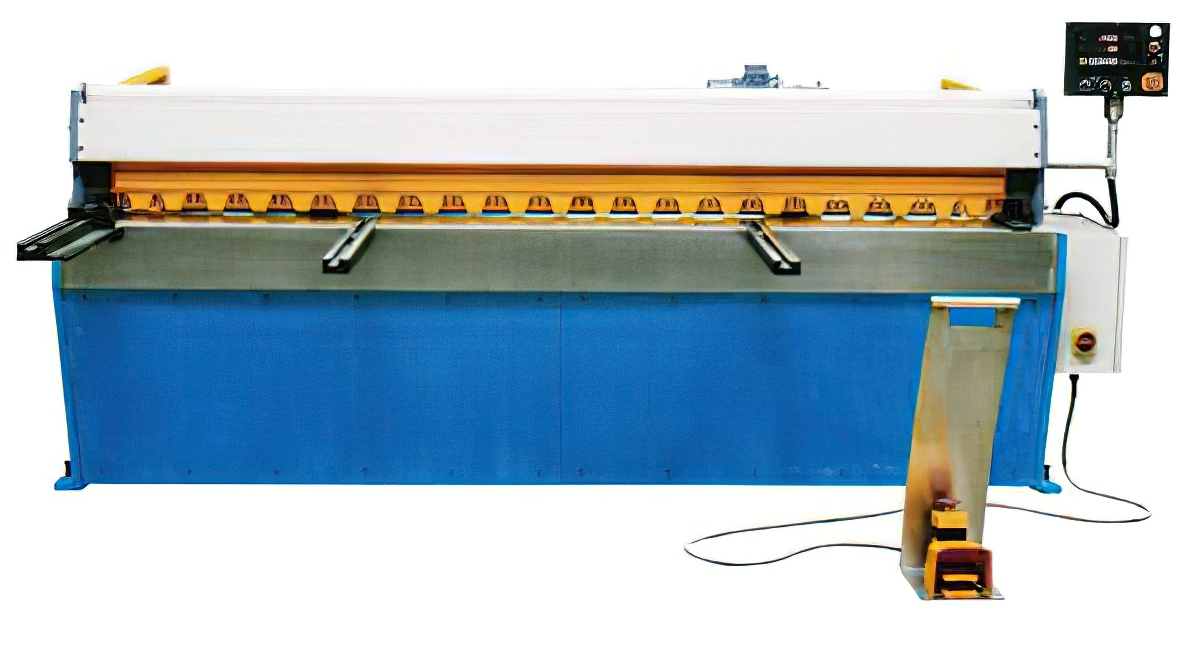

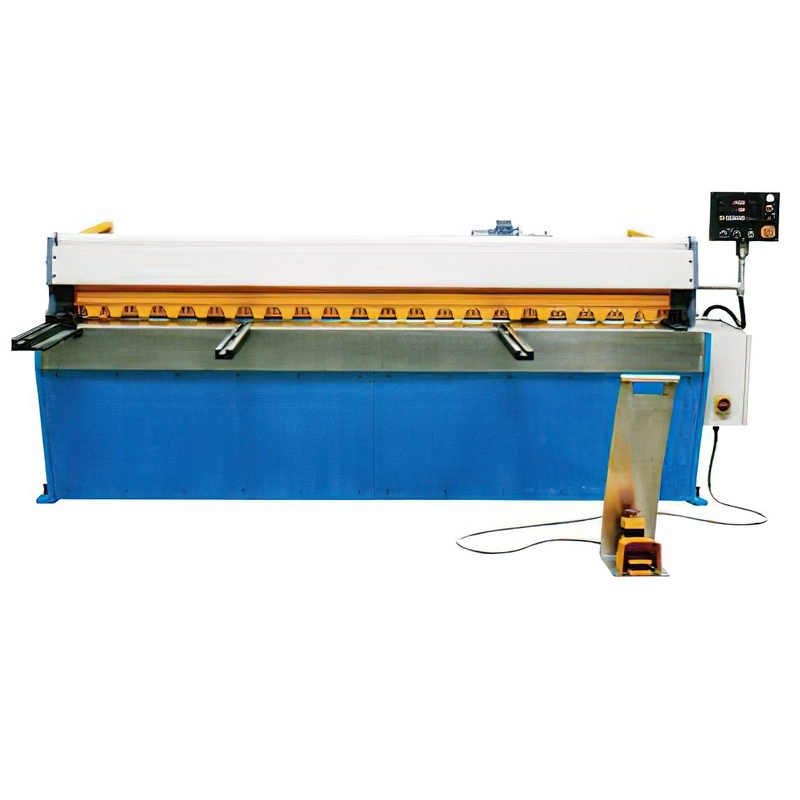

GUILLOTINES ELECTRO SHEARING SHEARING MACHINE
FEATURES:
●Brake motor driven through a shaft-mounted speed reduction unit and controlled by a selector switch for
single or continuous strokes, provides quiet instantenous engagement.
●Different from the traditional driving method of mechanical shear, it's one of the most advanced miniature
mechanical shears. The low cutting angle and inclined shear direction reduces bowing and twist to a minimum.
●Blade clearance is easily set by a manually operated Quick Set device Ideal true cut machining equipment of
metal sheet and nonferrous metal sheet.
|
Model No. |
GES-1300 |
GES-1500 |
GES-2000 |
GES-2500 |
GES-2500A |
|
Item No. |
|
|
|
|
|
|
Specifications |
|||||
|
Shearing thickness |
3.5 mm |
3.2 mm |
3.2 mm |
2.5 mm |
3.2 mm |
|
Shearing width (mm) |
1300 mm |
1500 mm |
2000 mm |
2500 mm |
2500 mm |
|
Shearing angle (°) |
1°30′ |
1°30′ |
1°45′ |
1° |
1°18′ |
|
Strokes per minute |
47 |
47 |
47 |
47 |
47 |
|
Back gauge range (mm) |
0~650 mm |
0~650 mm |
0~650 mm |
0~650 mm |
0~650 mm |
|
Motor (kw) |
5.5 kw |
5.5 kw |
7.5 kw |
7.5 kw |
7.5 kw |
|
Net Weight (kg) |
1450 kg |
1650 kg |
1800 kg |
2080 kg |
2200 kg |
