Roller Machine

W11Y-16x2500 ~ W11Y-120x3000 Roller Machine Metal Forming Machine

Category: Roller Machine

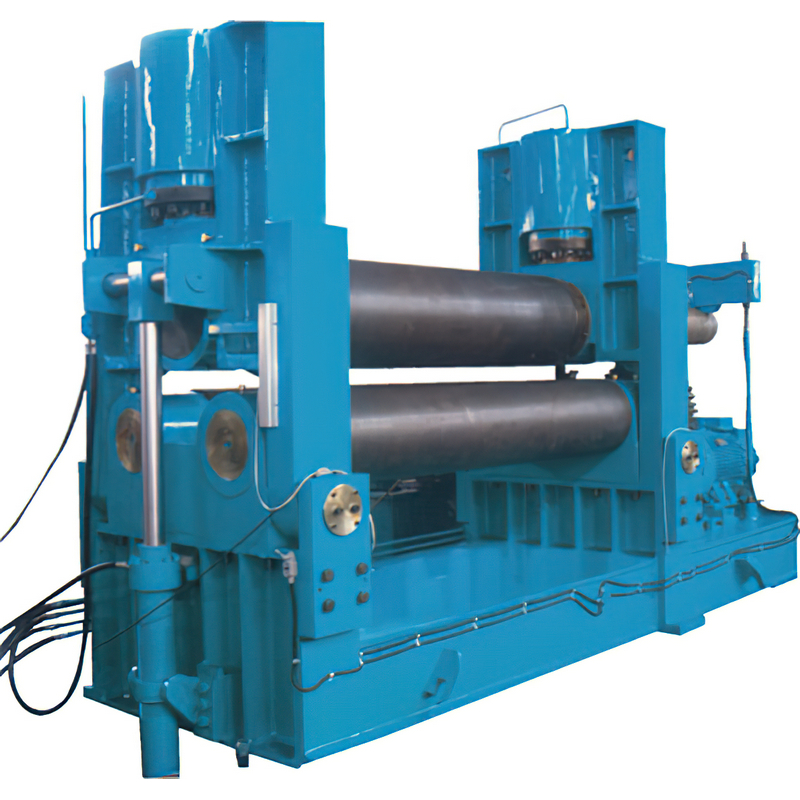

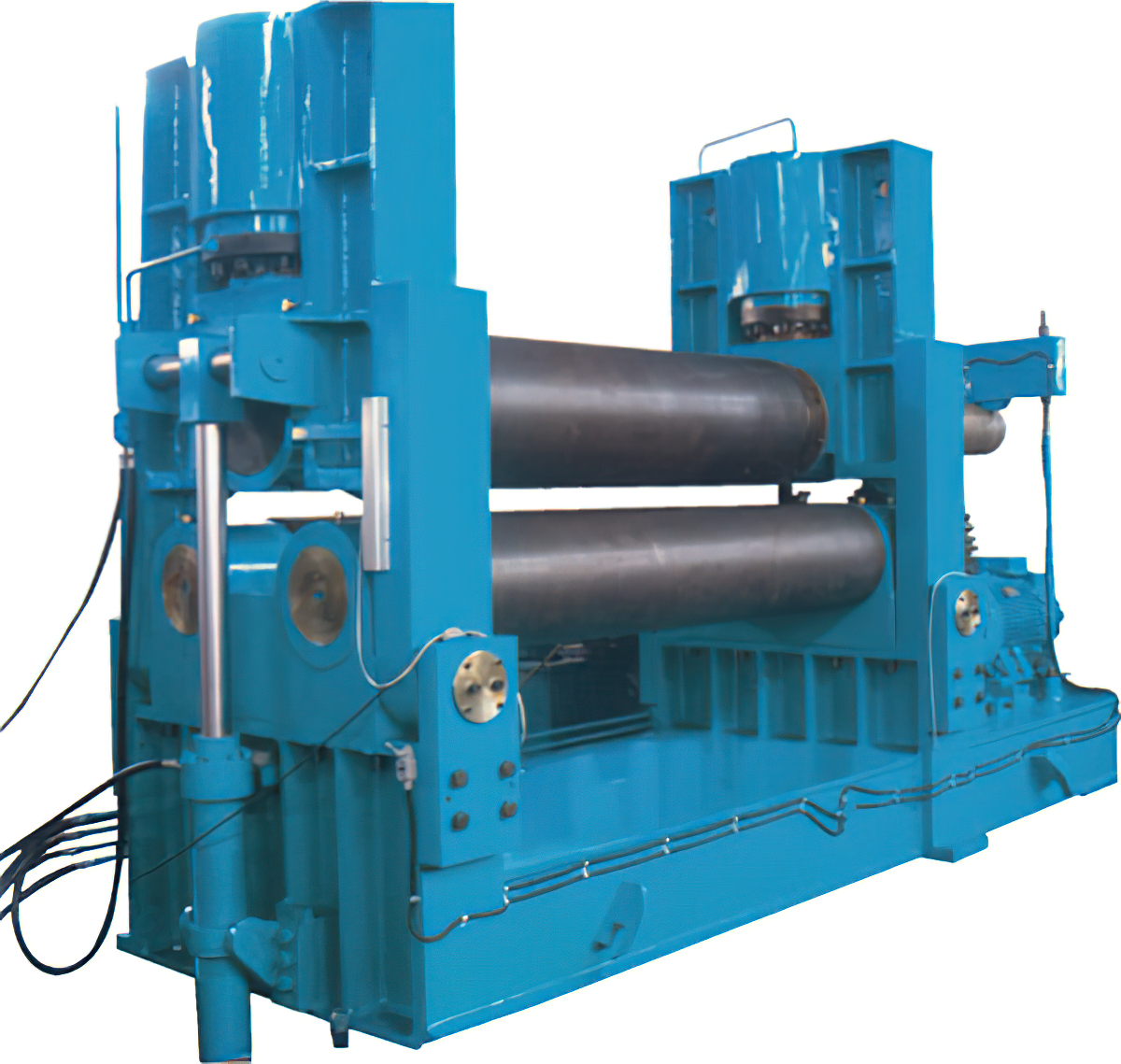

ASYMMETRIC 3-ROLLER BENDING MACHINE


Asymmetric 3-roller structure, the upper is the main drive, the down rollers take-off
and landing exercise in order to clamp plate, through the gears of the down rollers
and upper roll meshing at the same time as the main transmission; The side roll for
take-off and landing dumping campaign with pre-bending roll and a round of double
features. Compact, ease of operation and maintenance



 Model No.

W11Y-16x2500

W11Y-25x2000

W11Y-25x2500

W11Y-25x3000

W11Y-30x2000

 Item No.











 Specifications



 Max. Thickness (mm)

16 mm

25 mm

25 mm

25 mm

30 mm

 Max. width (mm)

2500 mm

2000 mm

2500 mm

3000 mm

2000 mm

 Yield Limit (mpa)

245 mpa

245 mpa

245 mpa

245 mpa

245 mpa

 Minimum Diameter full
 Capacity(mm)

Φ800

Φ1200

Φ1200

Φ1200

Φ1200

 Top roller Diameter (mm)

Φ300

Φ270

Φ370

Φ430

Φ360

 Bottom Roller Diameter

Φ250

Φ280

Φ300

Φ370

Φ290

 Central Distance between
 Bottom Shafts(mm)

370mm

480 mm

480 mm

550 mm

480 mm

 Motor (kw)

15 kw

22 kw

22 kw

30kw

22 kw

 Hydraulic Power (kw)

5.5 kw

7.5 kw

7.5 kw

11 kw

7.5 kw





 Model No.

W11Y-30x2500

W11Y-30x3000

W11Y-40x2500

W11Y-40x3000

W11Y-50x3000

 Item No.











 Specifications



 Max. Thickness (mm)

30 mm

30 mm

40 mm

40 mm

50 mm

 Max. width (mm)

2500 mm

3000 mm

2500 mm

3000 mm

3000 mm

 Yield Limit (mpa)

245 mpa

245 mpa

245 mpa

245 mpa

245 mpa

 Minimum Diameter full
 Capacity(mm)

Φ1200

Φ1200

Φ1400

Φ1600

Φ2000

 Top roller Diameter (mm)

Φ420

Φ450

Φ500

Φ540

Φ580

 Bottom Roller Diameter

Φ360

Φ390

Φ400

Φ440

Φ480

 Central Distance between
 Bottom Shafts(mm)

550mm

600 mm

600 mm

600 mm

750 mm

 Motor (kw)

30 kw

30 kw

37 kw

45kw

55 kw

 Hydraulic Power (kw)

11 kw

11 kw

15 kw

18.5 kw

22 kw





 Model No.

W11Y-60x3000

W11Y-70x3000

W11Y-80x3000

W11Y-90x3000

W11Y-100x3000

 Item No.











 Specifications



 Max. Thickness (mm)

60 mm

70 mm

80 mm

90 mm

100 mm

 Max. width (mm)

3000 mm

3000 mm

3000 mm

3000 mm

3000 mm

 Yield Limit (mpa)

245 mpa

245 mpa

245 mpa

245 mpa

245 mpa

 Minimum Diameter full
 Capacity(mm)

Φ2400

Φ2800

Φ3200

Φ3600

Φ4000

 Top roller Diameter (mm)

Φ660

Φ710

Φ770

Φ820

Φ860

 Bottom Roller Diameter

Φ560

Φ620

Φ680

Φ730

Φ770

 Central Distance between
 Bottom Shafts(mm)

800mm

850 mm

900 mm

950 mm

1000 mm

 Motor (kw)

75 kw

90 kw

90 kw

110kw

110 kw

 Hydraulic Power (kw)

30 kw

37 kw

37 kw

45 kw

45 kw





 Model No.

W11Y-110x3000

W11Y-120x3000



 Item No.







 Specifications



 Max. Thickness (mm)

110 mm

120 mm



 Max. width (mm)

3000 mm

3000 mm



 Yield Limit (mpa)

245 mpa

245 mpa



 Minimum Diameter full
 Capacity(mm)

Φ4400

Φ4800



 Top roller Diameter (mm)

Φ900

Φ950



 Bottom Roller Diameter

Φ810

Φ860



 Central Distance between
 Bottom Shafts(mm)

1080mm

1160 mm



 Motor (kw)

132 kw

132 kw



 Hydraulic Power (kw)

55 kw

55 kw
