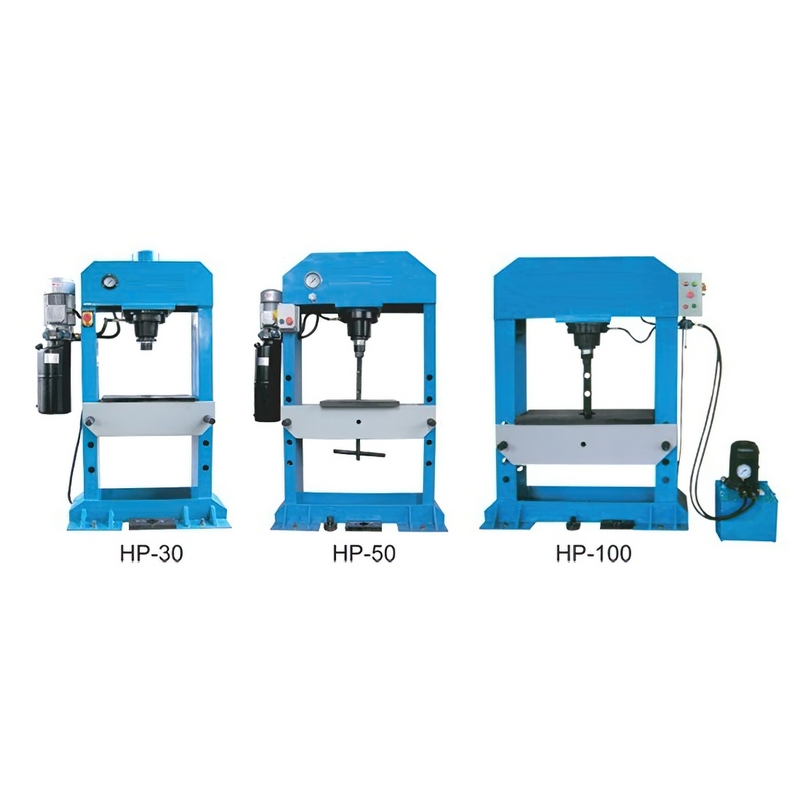

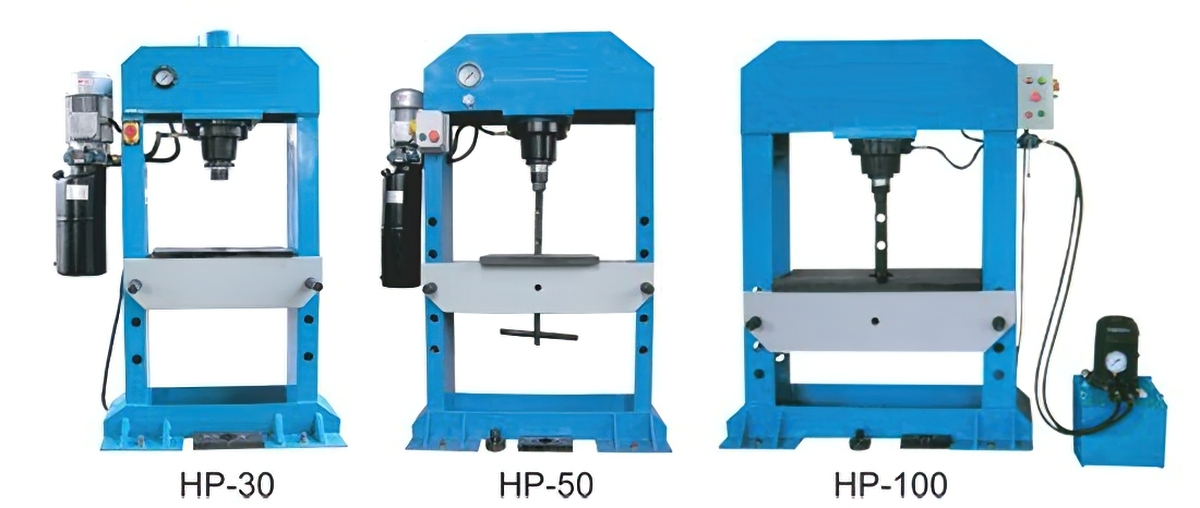

HP30 ~ HP500 Press Metal Forming Machine

Category: Press

HP HYDRAULIC PRESS



FEATURES:
●Hydraulic press include replaceable top tools V-block and support table with stops
●Table can be lifted through a chain driven by the main cylinder
●Extremly torsion-proof steel weldment
●Reliable, high accurate hydraulic system
●Micro-swich for traverse adjustment
●Operating modus: semi-automatic,fully.





 Model No.

 HP30

HP50

HP63

 Item No.







 Specifications







 Capacity (Kn)

300 Kn

500 Kn

630 kn

 Pressure (Mpa)

25 (Mpa)

25 (Mpa)

30 (Mpa)

 Travel (mm)

300+270mm

220+405mm

220+405mm

 Tale size (mm)

300x400mm

400x800mm

400x800mm

 Weitht (Kg)

420/650Kg

980/1100Kg

1020/1500Kg

 Dimension (cm)

116x55x160

150x65x195

150x65x195





 Model No.

HP100

 HP150

HP200

 Item No.







 Specifications







 Capacity (Kn)

1000 kn

1500 Kn

2000 Kn

 Pressure (Mpa)

30 (Mpa)

42 (Mpa)

40 (Mpa)

 Travel (mm)

250+405mm

250+405mm

300+405mm

 Tale size (mm)

460x980mm

460x980mm

500x1000mm

 Weitht (Kg)

1220/1420Kg

1350/1750Kg

2200/2400Kg

 Dimension (cm)

184x75x225 73x63x96

184x75x225 73x63x96

194x95x235 90x80x106





 Model No.

HP300

HP400

HP500

 Item No.







 Specifications







 Capacity (Kn)

3000 kn

4000 kn

5000 kn

 Pressure (Mpa)

42 (Mpa)

42 (Mpa)

45 (Mpa)

 Travel (mm)

300+405mm

300+405mm

300+405mm

 Tale size (mm)

700x1200mm

900x1200mm

900x1200mm

 Weitht (Kg)

4200Kg

5500Kg

6500Kg

 Dimension (cm)

210x95x270 110x120x135

230x100x290 110x120x135

230x100x290 110x120x135
