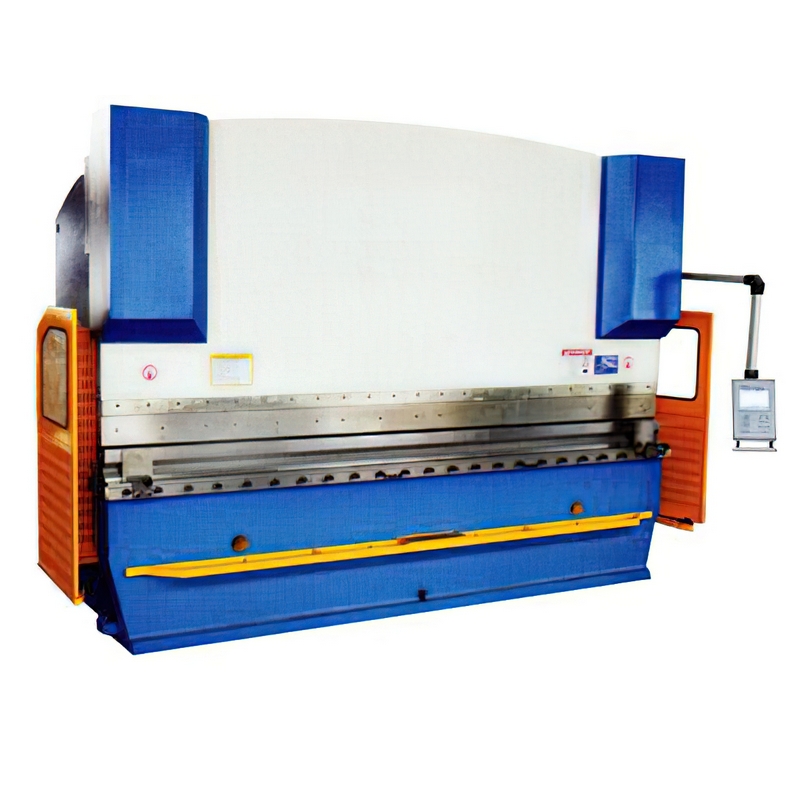

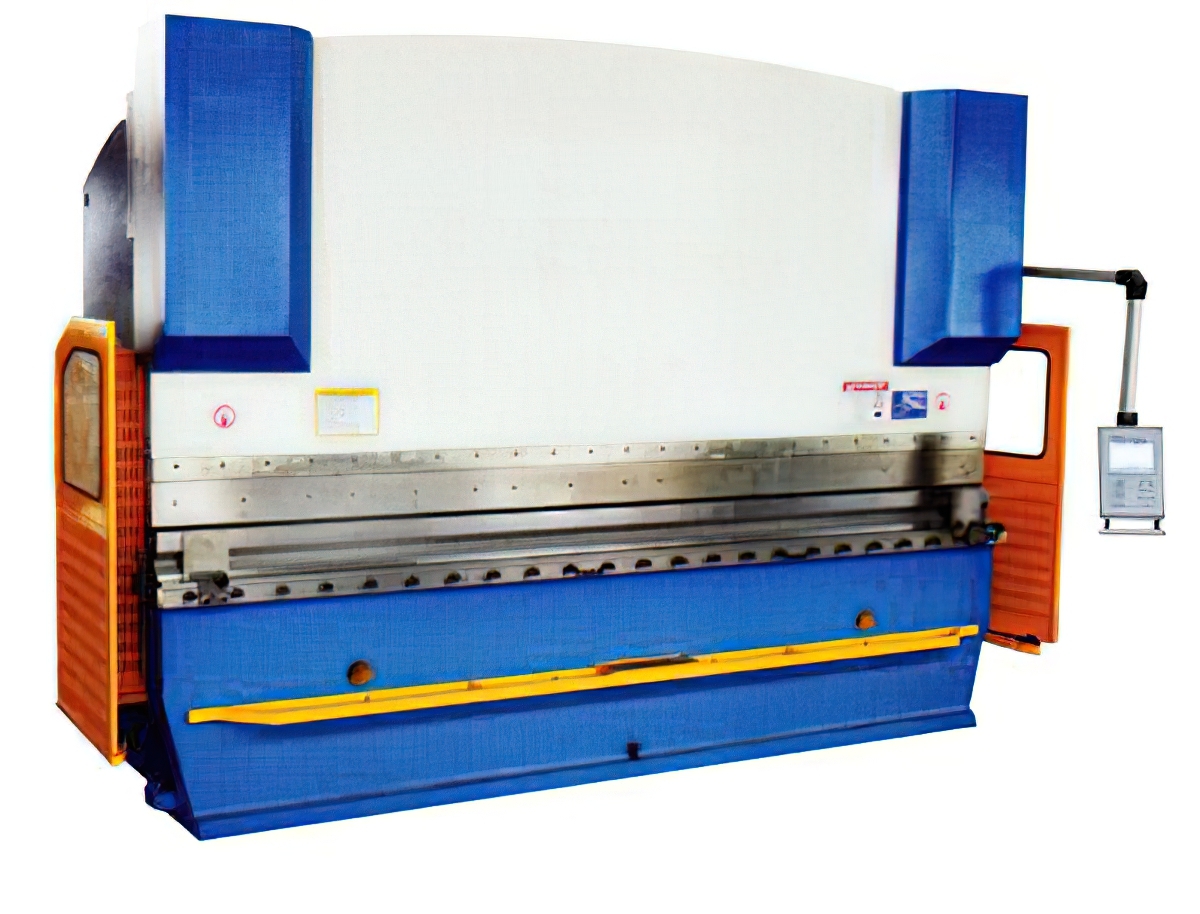

FEATURES:
●Equipped with Delem control system(made in netherland)(cybelec could be used also),
raster displayer, hydraulic value, servomotor are all importing products.
●Adopting reliable elector-hydraulic proportional synchronization servo and its parallelism
preision could reach 0.02mmo It can support eccentric load.
●Ram stroke(Y1, Y2)and back gauge(X,R,Z)are controlled by controller.
●Back gauge is adopted ball-screw and linear guide way, the repeat positioning
precision of X is very high and act smartly.
|
Model No. |
WE67K |
WE67K |
WE67K |
WE67K |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Normal Pressure (Kn) |
1000 kn |
1000 kn |
1600 kn |
1600 kn |
|
Working Table Length(mm) |
3200 mm |
4000 mm |
3200 mm |
4000 mm |
|
Distance Between Housing |
2900 mm |
3700 mm |
2880 mm |
3680 mm |
|
Throat Depth (mm) |
320 mm |
320 mm |
320 mm |
320 mm |
|
Ma.open height (mm) |
400 mm |
400 mm |
400 mm |
400 mm |
|
Side stroke (mm) |
200 mm |
200 mm |
200 mm |
200 mm |
|
Motor Power (kw) |
7.5 kw |
7.5 kw |
11 kw |
11 kw |
|
Net Weight (kg) |
8100 kg |
8300 kg |
10500 kg |
12000 kg |
|
PackingSize(cm) |
345x150x268 |
420x156x271 |
345x155x276 |
425x155x282 |
|
Model No. |
WE67K |
WE67K |
WE67K |
WE67K |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Normal Pressure (Kn) |
2000 kn |
2000 kn |
2500 kn |
2500 kn |
|
Working Table Length(mm) |
3200 mm |
4000 mm |
3200 mm |
4000 mm |
|
Distance Between Housing |
2880 mm |
3680 mm |
2770 mm |
3560 mm |
|
Throat Depth (mm) |
320 mm |
320 mm |
400 mm |
400 mm |
|
Ma.open height (mm) |
400 mm |
400 mm |
450 mm |
450 mm |
|
Side stroke (mm) |
200 mm |
200 mm |
250 mm |
250 mm |
|
Motor Power (kw) |
15 kw |
15 kw |
18.5 kw |
18.5 kw |
|
Net Weight (kg) |
10500 kg |
12000 kg |
14000 kg |
15500 kg |
|
PackingSize(cm) |
345x160x276 |
425x160x282 |
350x180x350 |
447x197x335 |
|
Model No. |
WE67K |
WE67K |
WE67K |
WE67K |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Normal Pressure (Kn) |
3000 kn |
3000 kn |
4000 kn |
4000 kn |
|
Working Table Length(mm) |
3200 mm |
4000 mm |
3200 mm |
4000 mm |
|
Distance Between Housing |
2760 mm |
3560 mm |
2750 mm |
3550 mm |
|
Throat Depth (mm) |
400 mm |
400 mm |
400 mm |
400 mm |
|
Ma.open height (mm) |
500 mm |
500 mm |
500 mm |
500 mm |
|
Side stroke (mm) |
300 mm |
300 mm |
300 mm |
300 mm |
|
Motor Power (kw) |
22 kw |
22 kw |
30 kw |
30 kw |
|
Net Weight (kg) |
16500 kg |
22000 kg |
25000 kg |
29800 kg |
|
PackingSize(cm) |
356x197x335 |
460x200x350 |
360x210x340 |
460x210x350 |
|
Model No. |
WE67K |
WE67K |
WE67K |
WE67K |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Normal Pressure (Kn) |
5000 kn |
5000 kn |
5000 kn |
6000 kn |
|
Working Table Length(mm) |
4000 mm |
5000 mm |
6000 mm |
5000 mm |
|
Distance Between Housing |
3500 mm |
4500 mm |
4800 mm |
4000 mm |
|
Throat Depth (mm) |
400 mm |
400 mm |
400 mm |
500 mm |
|
Ma.open height (mm) |
630 mm |
630 mm |
630 mm |
630 mm |
|
Side stroke (mm) |
320 mm |
320 mm |
320 mm |
320 mm |
|
Motor Power (kw) |
37 kw |
37 kw |
37 kw |
37 kw |
|
Net Weight (kg) |
40000 kg |
45000 kg |
45000 kg |
50000 kg |
|
PackingSize(cm) |
460x218x360 |
560x218x360 |
615x362x520 |
515x382x520 |
|
Model No. |
WE67K |
WE67K |
WE67K |
WE67K |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Normal Pressure (Kn) |
6000 kn |
6500 kn |
8000 kn |
8000 kn |
|
Working Table Length(mm) |
6000 mm |
7000 mm |
5000 mm |
6000 mm |
|
Distance Between Housing |
5050 mm |
5400 mm |
4000 mm |
5050 mm |
|
Throat Depth (mm) |
450 mm |
450 mm |
500 mm |
500 mm |
|
Ma.open height (mm) |
630 mm |
650 mm |
800 mm |
800 mm |
|
Side stroke (mm) |
320 mm |
350 mm |
350 mm |
350 mm |
|
Motor Power (kw) |
45 kw |
45 kw |
55 kw |
55 kw |
|
Net Weight (kg) |
58000 kg |
65000 kg |
75000 kg |
85000 kg |
|
PackingSize(cm) |
625x370x490 |
516x450x530 |
516x450x530 |
620x492x580 |
|
Model No. |
WE67K |
|||
|
Item No. |
|
|
|
|
|
Specifications |
|
|||
|
Normal Pressure (Kn) |
10000 kn |
|||
|
Working Table Length(mm) |
6000 mm |
|||
|
Distance Between Housing |
5050 mm |
|||
|
Throat Depth (mm) |
500 mm |
|||
|
Ma.open height (mm) |
800 mm |
|||
|
Side stroke (mm) |
400 mm |
|||
|
Motor Power (kw) |
55 kw |
|||
|
Net Weight (kg) |
105000 kg |
|||
|
PackingSize(cm) |
650x494x630 |
|||
