FEATURE:
●V-way bed is precisioon ground.
●Spindle is supported by precision tapered bearing.
●Lathe headstock is constantly oiled during operating.
●Belt drived mill head get quiet operation.
●Mill head can be tilted ±90°.
●Power longitudinal feed allows threading.
●Adjustable gids for slidways.
●Equipped with leadscrew cover and work table.
●Change gears has large feed and threading functions.
●Tailstock can be offset for turning tapers
●Tolerance test certificate,test flow chart included.
|

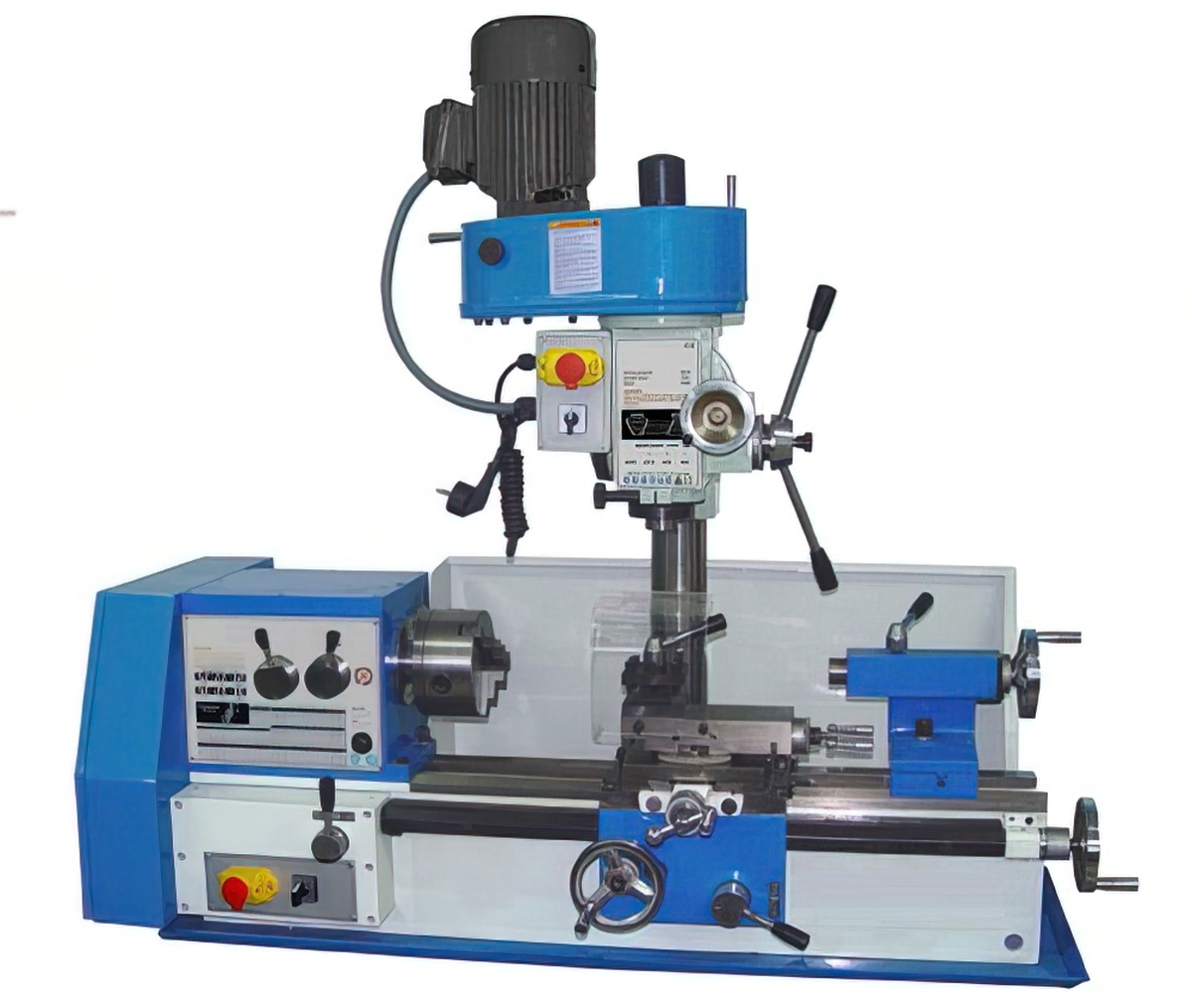

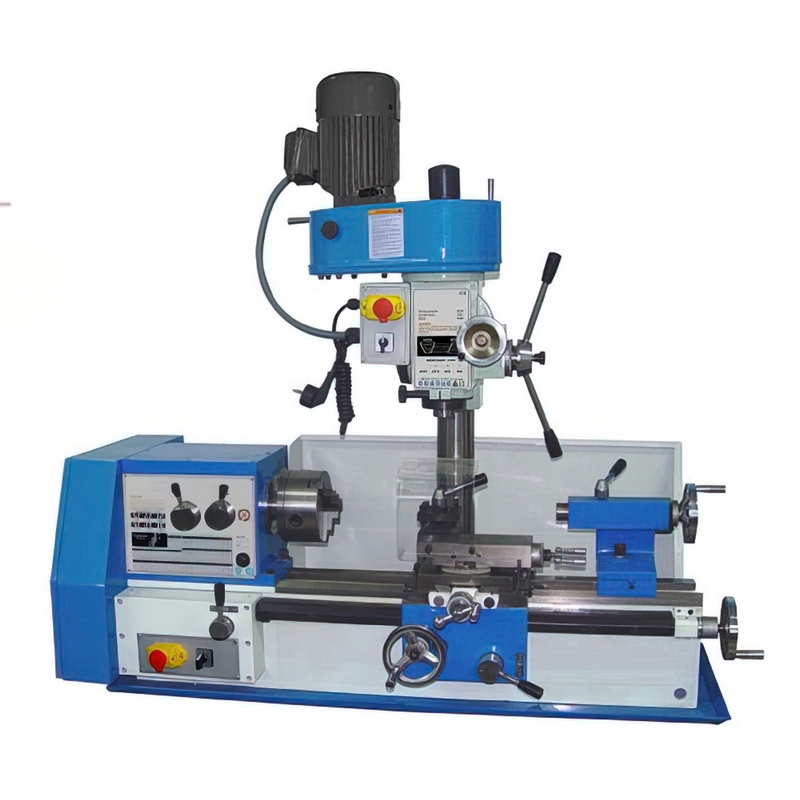

Model No. |
LM250 |
|
Item No. |
|
|
Lathe |
|
|
Distance between centers |
450/700 mm |
|
Swing over bed |
250 mm |
|
Taper of spindle bore |
MT4 |
|
Spindle bore |
27 mm |
|
Range of spindle speeds |
115-1620 rpm |
|
Range of inch threads |
8-56 T.P.I |
|
Range of metric threads |
0.2-3.5 mm |
|
Travel of cross slide |
140 mm |
|
Taper of tailstock quill |
MT3 |
|
Motor |
750W |
|
Mill & drill |
|
|
Taper of spindle bore |
MT3 |
|
Spindle stroke |
80 mm |
|
Step of spindle speeds |
4 |
|
Range of spindle speeds |
400-1600 rpm |
|
Head stroke |
240 mm |
|
Head tilt |
±90° |
|
Motor |
550W |
|
Packing size |
1510x670x920 mm |
|
Net weight |
245 kg |
|
|
|
|
Standard Accessories |
Optional Accessories |
|
3-jaw chuck |
4-jaw chuck (160mm) |
|
Splash guard |
Backplate |
|
Chip tray |
Follow rest |
|
Drawbar |
Steady rest |
|
Arbor |
Face plate |
|
Toolbox & tools |
Turning tools |
|
|
Stand |
