FEATURE:
● V-way bed is hardened and precision ground
● Super width bedway gets more capacity.
● Independent leadscrew and feedshaft.
● Power cross feed function.
● Automatic feed and threading are fully interlocked
● T-slotted cross slide
● Top design of gearbox gets more function
● Tailstock may be offset for turning tapers
● Geared mill head gets more torque.
● Mill head can be tilted ±90°.
● Tolerance test certificate, test flow chart included.
|

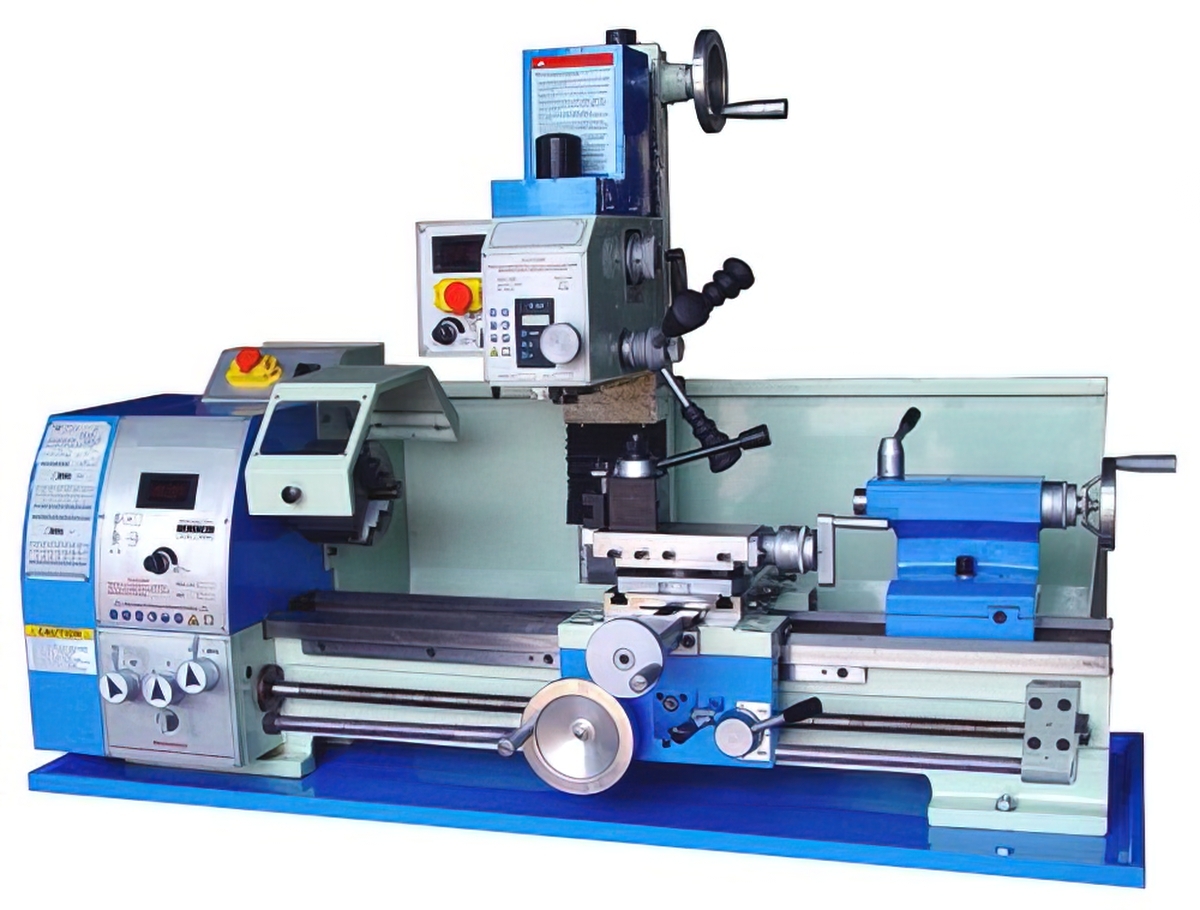

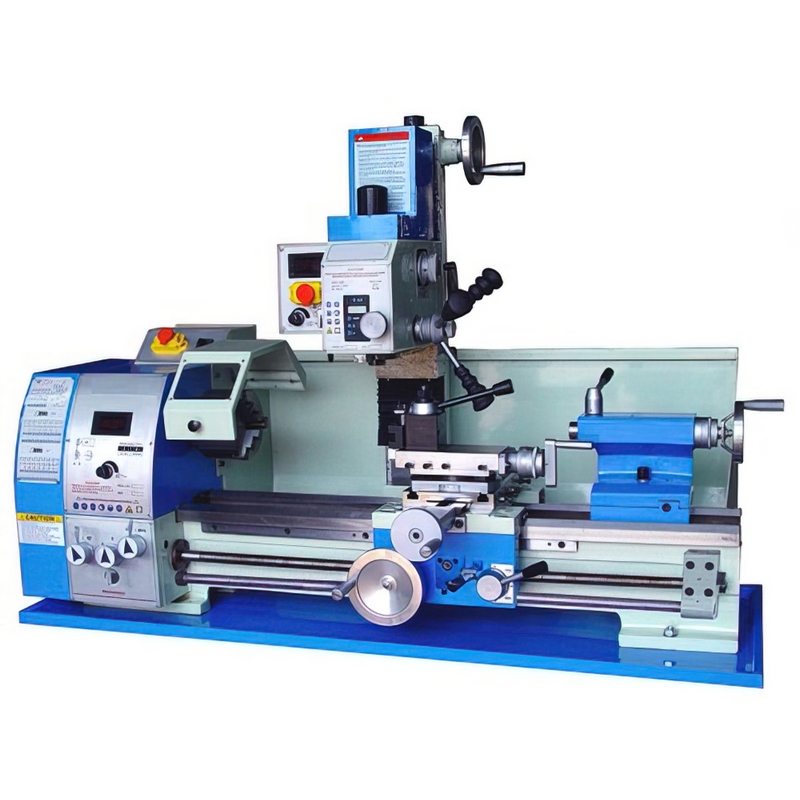

Model No. |
LMP280V-F |
|
Item No. |
|
|
Lathe |
|
|
Distance between centers |
700 mm |
|
Swing over bed |
280 mm |
|
Swing over cross slide |
165 mm |
|
Width of bed |
180 mm |
|
Taper of spindle bore |
MT4 |
|
Spindle bore |
26 mm |
|
Number of spindle speeds |
Variable |
|
Range of spindle speeds |
50-2000 rpm |
|
Range of longitudinal feeds |
0.07-0.20 mm/r |
|
Range of inch threads |
8-56 T.P.I |
|
Range of metric threads |
0.4-3.5 mm |
|
Top slide travel |
65 mm |
|
Cross slide travel |
155 mm |
|
Tailstock quill travel |
85 mm |
|
Taper of tailstock quill |
MT2 |
|
Motor |
1.1 kw |
|
Mill & drill |
|
|
Taper of spindle bore |
MT2 |
|
Spindle stroke |
50 mm |
|
Spindle speed |
50-2250 rpm |
|
Max. distance spindle to table |
375 mm |
|
Max. distance spindle to column |
182 mm |
|
Motor |
600W |
|
Packing size |
1400x780x1070 mm |
|
Net weight |
230 kg |
|
|
|
|
|
|
|
Standard Accessories |
Optional Accessories |
|
3-jaw chuck (160mm) |
4-jaw chuck (160mm) |
|
Splash guard |
Backplate |
|
Chip tray |
Follow rest |
|
Drawbar |
Steady rest |
|
Arbor |
Face plate |
|
Speed DRO for lathe |
ER25 collet chuck for lathe |
|
Depth ruler for mill |
ER25 collet chuck for mill |
|
Speed DRO for mill |
Turning tools |
|
Toolbox & tools |
Stand |
