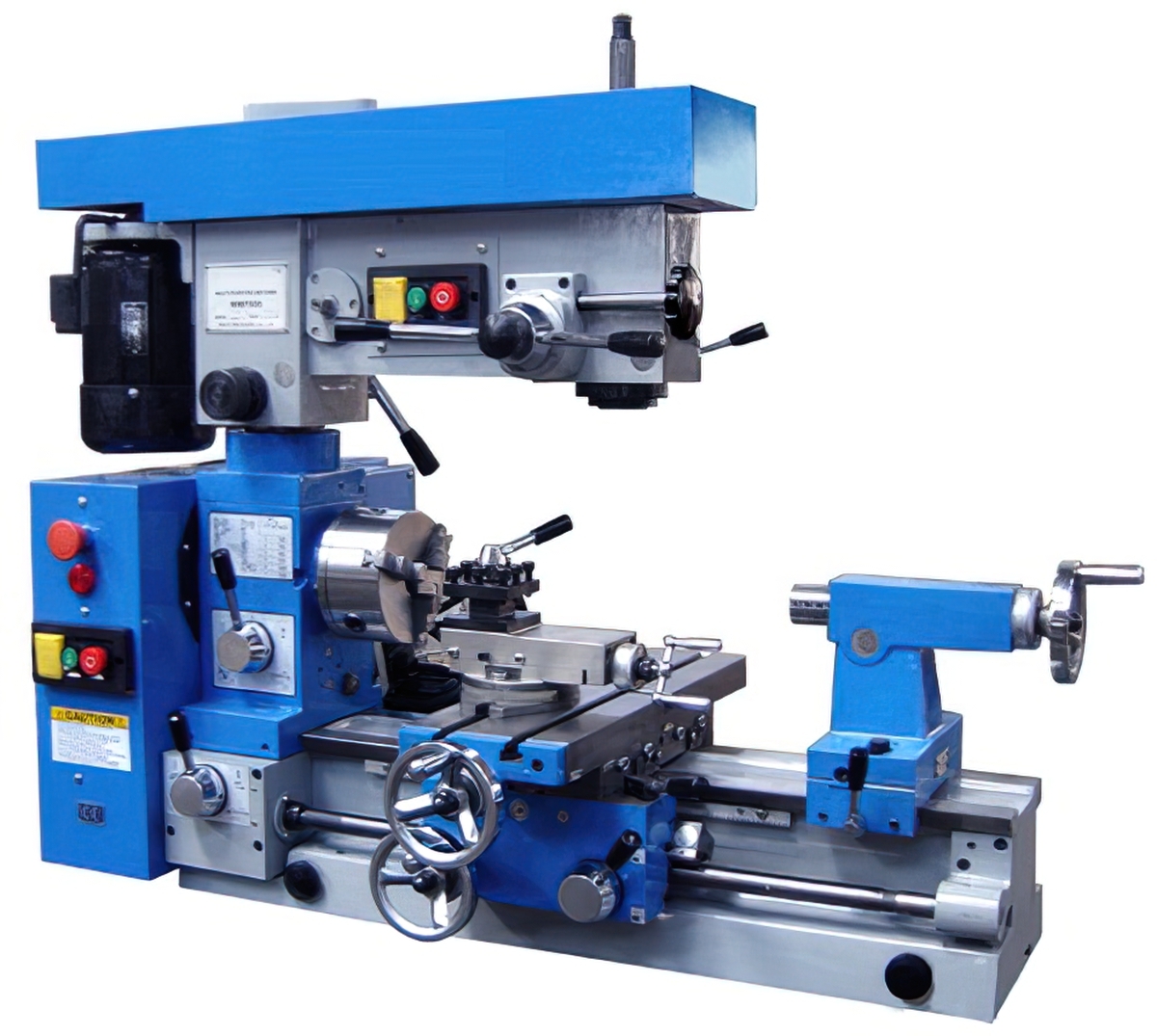

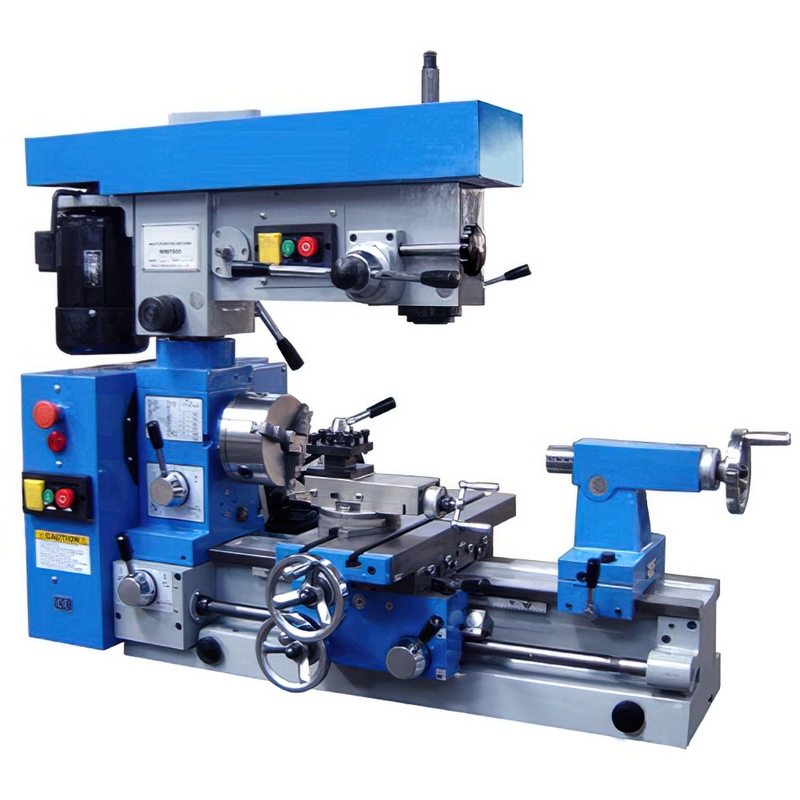

LM500 Multi-Purpose Lathe Machine FEATURE:
●Compact, versatile combination machine.
●Adjustable height drill/mill head increases capacity.
●Large MT4 spindle bore.
●Fine feed handle and clutch for precision milling.
●Headstock provides two step of feeds.
●Spindle is supported by high precision bearing.
●Headstock is constantly oiled during operation.
●T-slot cross slide.
●Adjustable gibs for the slideway.
●Power longitudinal & cross feed.
●Right & left hand threads cutting is available.
●High precision chuck.
●Equipped with emergency stop button.
●Tailstock may be offset for turning taper.
|
Model No. |
LM500 |
|
Item No. |
|
|
Lathe |
|
|
Distance between centers |
500 mm |
|
Swing over bed |
300 mm |
|
Taper of spindle bore |
MT4 |
|
Spindle bore |
26 mm |
|
Range of spindle speeds |
160-1600 rpm |
|
Range of cross feed |
0.003-0.134 mm/r |
|
Range of longitudinal feeds |
0.036-1.43 mm/r |
|
Range of inch threads |
11- 40 T.P.I |
|
Range of metric threads |
0.5-3 mm |
|
Travel of top slide |
75 mm |
|
Travel of cross slide |
200 mm |
|
Taper of tailstork quill |
MT3 |
|
Motor |
550W |
|
Mill & drill |
|
|
Taper of spindle bore |
MT3 |
|
Spindle stroke |
80 mm |
|
Range of spindle speeds |
315-2000 rpm |
|
Head stroke |
85 mm |
|
Head swivel |
360 ° |
|
Table size |
425x150 mm |
|
Motor |
370W |
|
Packing size |
1170x580x980 mm |
|
Net weight |
220 kg |
|
|
|
|
Standard Accessories |
Optional Accessories |
|
3-jaw chuck |
4-jaw chuck |
|
Threading dial |
Backplate |
|
Drill chuck |
Face plate |
|
Toolbox & tools |
Steady rest |
|
|
Follow rest |
|
|
Stand & oil tray |
|
|
Drilling vise |
|
|
Turning tools |
