FEATURE:
● Induction hardened, precision ground V-way bed.
● D1-4 spindle is supported by high quality tapered roller bearing.
● Hardened, precision ground gears in headstock.
● High precision directly mounting chuck.
● Gap bed section provided for larger diameter work.
● Gearbox has large feed and threading functions.
● Carriage mounted spindle control lever.
● Adjustable gibs for slideways.
● Automatic feed and threading are fully interlocked.
● Tailstock may be offset for turning tapers.
● Tolerance test certificate, test flow chart included.
|

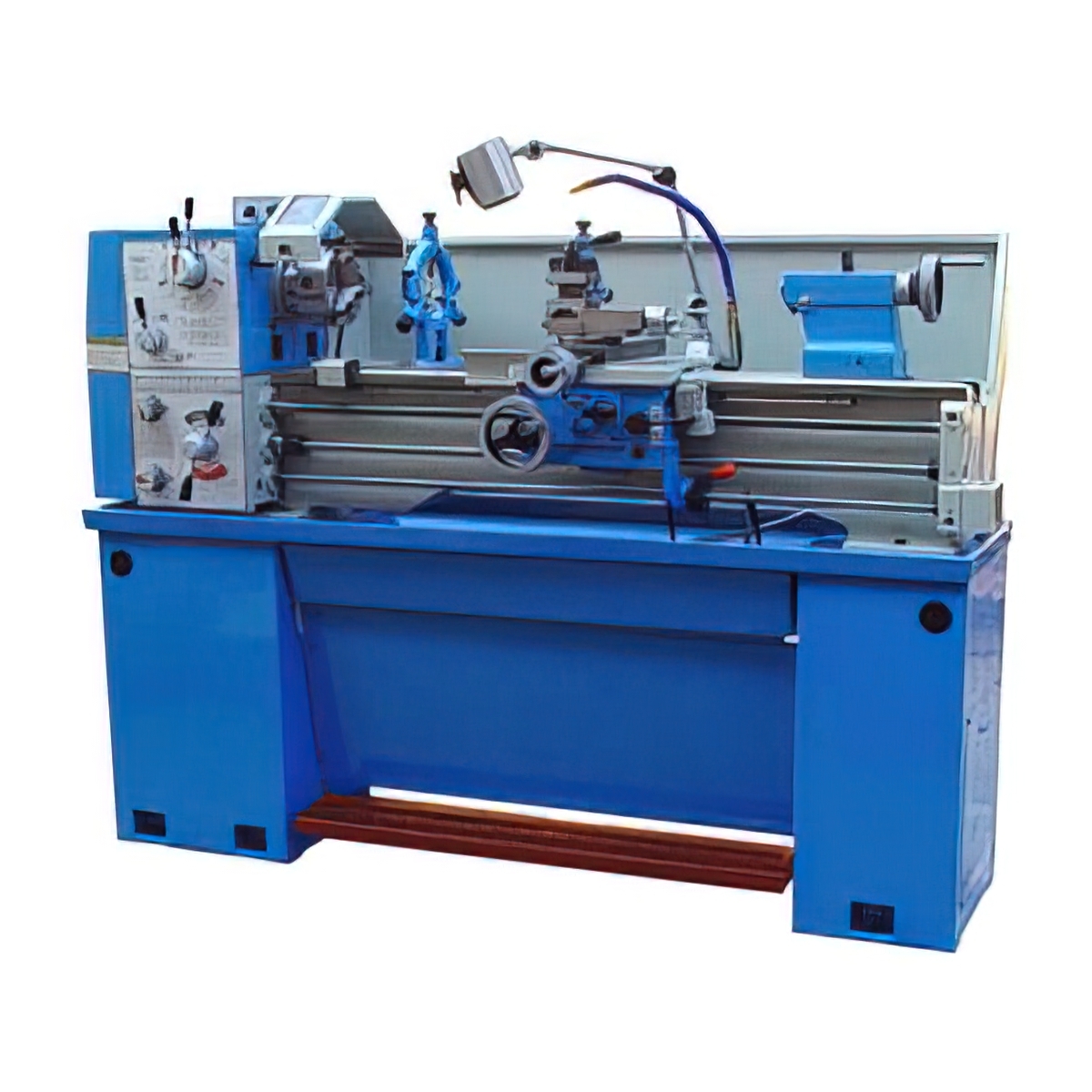

Model No. |
TN330 |
|
Item No. |
|
|
Specifications |
|
|
Distance between centers |
750/1000 mm |
|
Swing over bed |
330 mm |
|
Swing over gap |
476 mm |
|
Swing over cross slide |
198 mm |
|
Bed width |
187 mm |
|
Taper of spindle bore |
MT5 |
|
Spindle nose |
D1-4 |
|
Spindle bore |
38 mm |
|
Step of spindle speeds |
8 |
|
Range of spindle speeds |
70-2000 rpm |
|
Range of cross feeds |
0.018-0.275 mm/r |
|
Range of longitudinal feeds |
0.067-1.019 mm/r |
|
Range of inch threads |
3-1/2-80 T.P.I |
|
Range of metric threads |
0.45-10 mm |
|
Top slide travel |
76 mm |
|
Cross slide travel |
160 mm |
|
Tailstock quill travel |
92 mm |
|
Taper of tailstock quill |
MT3 |
|
Motor |
1.5 kw |
|
Packing size |
1700/1920 x 750 x 1500 mm |
|
Net weight |
560 / 580 kg |
|
Standard Accessories |
Optional Accessories |
|
3-jaw chuck (160mm) |
Quick change tool post |
|
4-jaw chuck (200mm) |
Turning tools |
|
Face plate (250mm) |
Micro carriage stop |
|
Steady rest |
Halogen work lamp |
|
Follow rest |
Leadscrew cover |
|
Splash guard |
Chuck guard |
|
Stand & oil tray |
Tool post cover |
|
Toolbox & tools |
Digital readout system |
|
Coolant system |
Taper turning attachment |
|
Foot brake |
Collet attachment |
