FEATURE:
● Induction hardened, precision ground V-way bed.
● D1-4 spindle is supported by high quality tapered roller bearing.
● Hardened, precision ground gears in headstock.
● Gearbox has large feed and threading functions.
● Independent leadscrew and feed rod.
● Carriage mounted spindle control lever.
● Adjustable gibs for slideways.
● Automatic feed and threading are fully interlocked.
● Tailstock can be offset for turning tapers.
● Tolerance test certificate, test flow chart included.
|

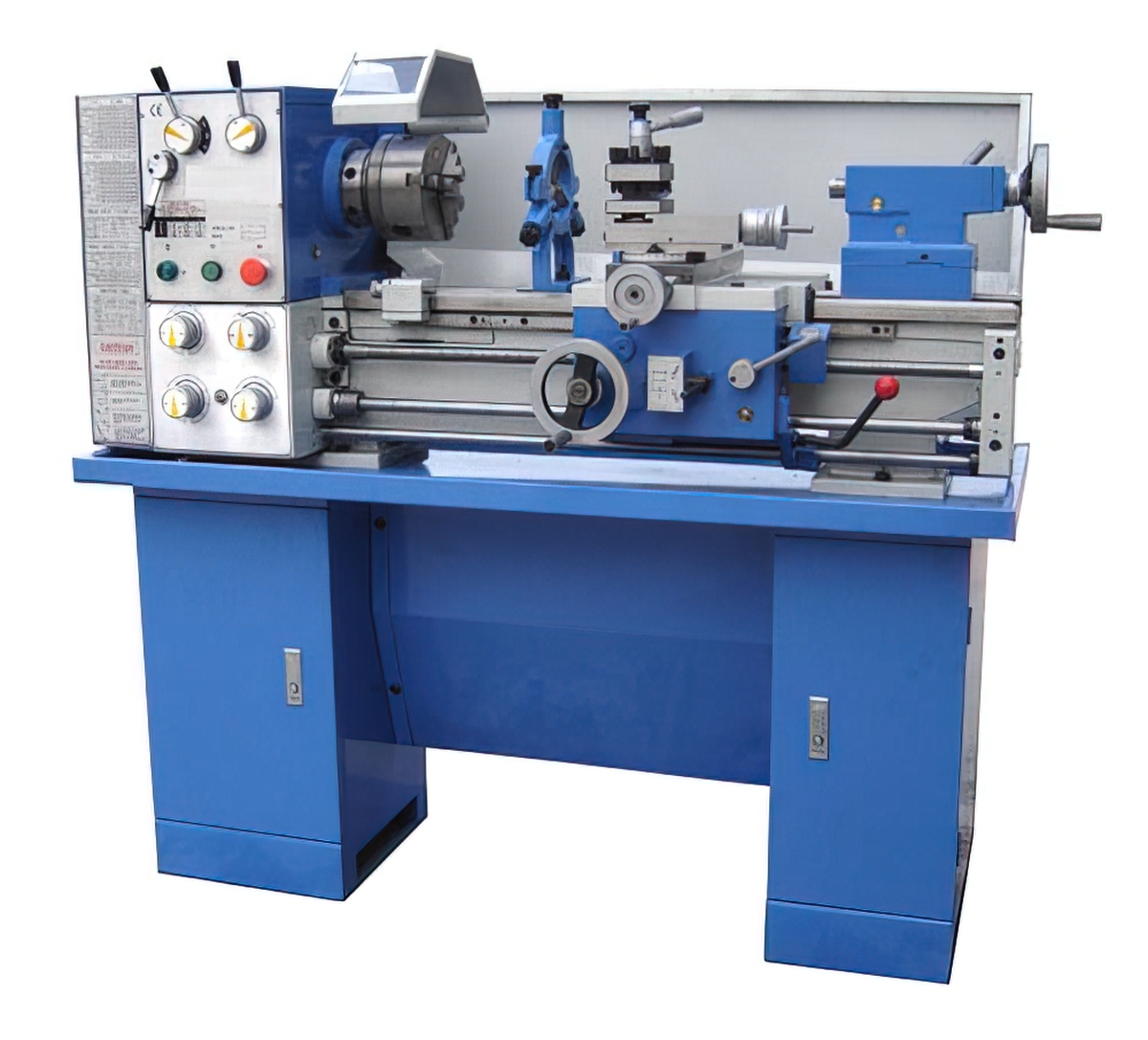

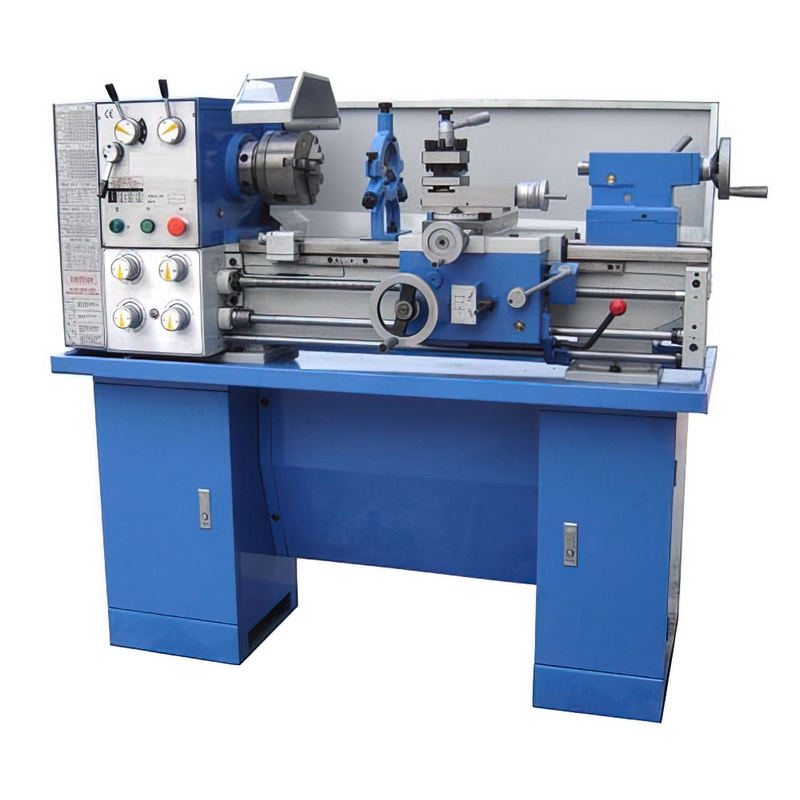

Model No. |
TN300 |
|
Item No. |
|
|
Specifications |
|
|
Distance between centers |
914/1000 mm |
|
Swing over bed |
300 mm |
|
Swing over gap |
430 mm |
|
Swing over cross slide |
180 mm |
|
Width of bed |
181 mm |
|
Taper of spindle bore |
MT5 |
|
Spindle bore |
38 mm |
|
Step of spindle speeds |
9 |
|
Range of spindle speeds |
75-1400 rpm |
|
Range of cross feeds |
0.017-0.276 mm/r |
|
Range of longitudinal feeds |
0.079-1.291 mm/r |
|
Range of inch threads |
4-60 T.P.I |
|
Range of metric threads |
0.4-7 mm |
|
Top slide travel |
76 mm |
|
Cross slide travel |
175 mm |
|
Tailstock quill travel |
90 mm |
|
Taper of tailstock quill |
MT3 |
|
Motor |
1.1 kw |
|
Packing size |
1680/1940x750x1450 mm |
|
Net weight |
540/620 kg |
|
Standard Accessories |
Optional Accessories |
|
3-jaw chuck (160mm) |
Coolant system |
|
4-jaw chuck (200mm) |
Foot brake |
|
Face plate (250mm) |
Halogen work lamp |
|
Steady rest |
Taper turning attachment |
|
Follow rest |
Digital readout system |
|
Splash guard |
Micro carriage stop |
|
Stand & oil tray |
Leadscrew cover |
|
Toolbox & tools |
Chuck guard |
|
|
Tool post cover |
|
|
Quick change tool post |
|
|
Turning tools |
