Bench Lathe

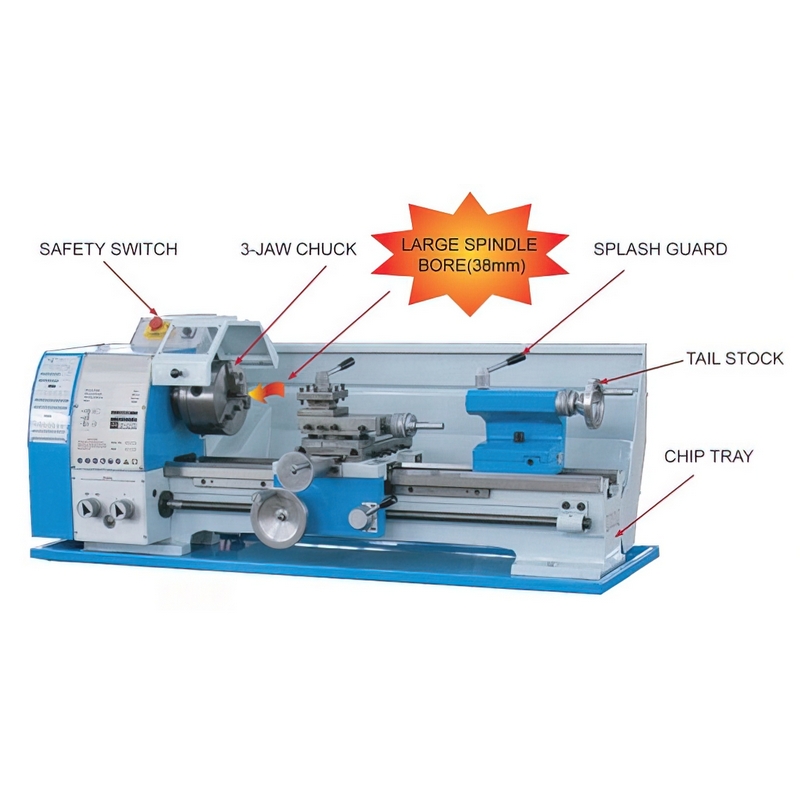

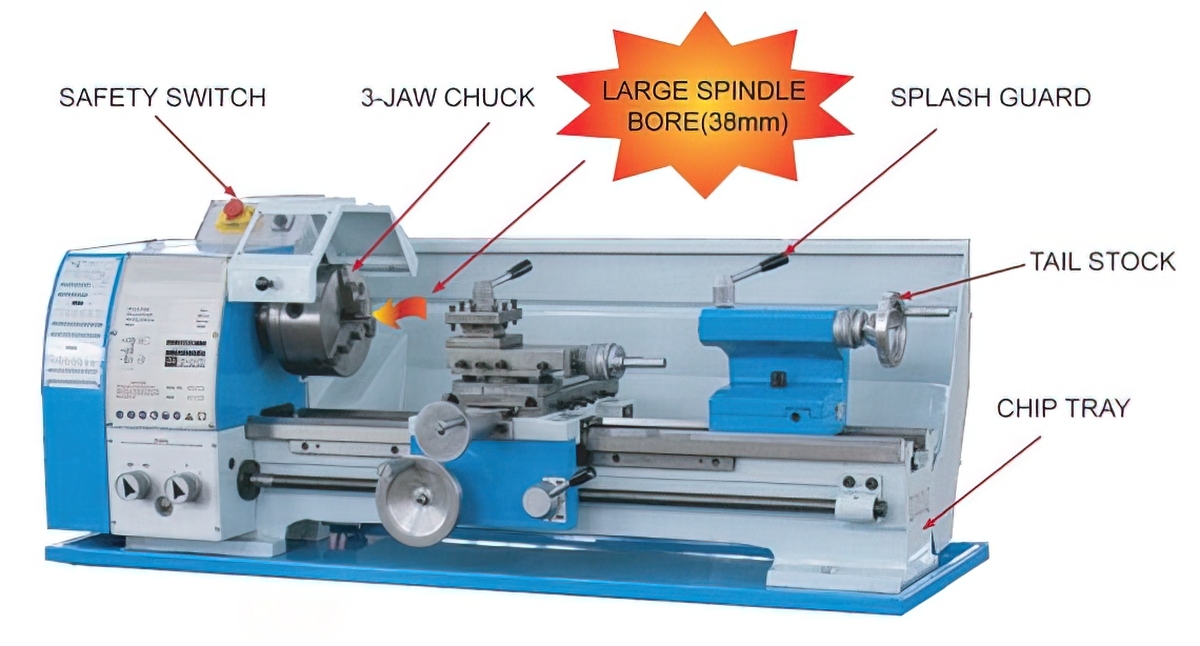

TN290 Bench Lathe Machine

Category: Bench Lathe

FEATURE:
● Hardened and ground bedway.
● Large bore (38mm) spindle supported on taper roller bearing.
● T-slotted cross slide.
● Enclosed gearbox enables large feed and threading cutting.
● Right & left hand threads cutting is available.
● Tailstock can be offset for turning tapers.
● Tolerance test certificate, test flow chart included.



  Model No.

TN290

    Item No.



 Specifications

 Distance between centers

700 mm

 Swing over bed

280 mm

 Swing over cross slide

165 mm

 Width of bed

180 mm

 Taper of spindle bore

MT5

 Spindle bore

38 mm

 Number of spindle speeds

6

 Range of spindle speeds

125-2000

 Range of longitudinal feeds

0.07-0.20 mm/r

 Range of inch threads

8-56 T.P.I

 Range of metric threads

0.4-3.5 mm

 Top slide travel

80 mm

 Cross slide travel

140 mm

 Tailstock quill travel

80 mm

 Taper of tailstock quill

MT3

 Motor

0.75 kw (AC)

 Packing size

1400x700x680 mm

 Net weight

190 kg





 Standard Accessories

 Optional Accessories

 3-jaw chuck (160mm)

 4-jaw chuck (160mm)

 Splash guard

 Backplate

 Chip tray

 Follow rest

 Toolbox & tools

 Steady rest



 Face plate (160mm)



 ER25 collet chuck



 Collet holder



 Turning tools



 Quick change tool post



 Threading dial



 Stand
