Bench Lathe

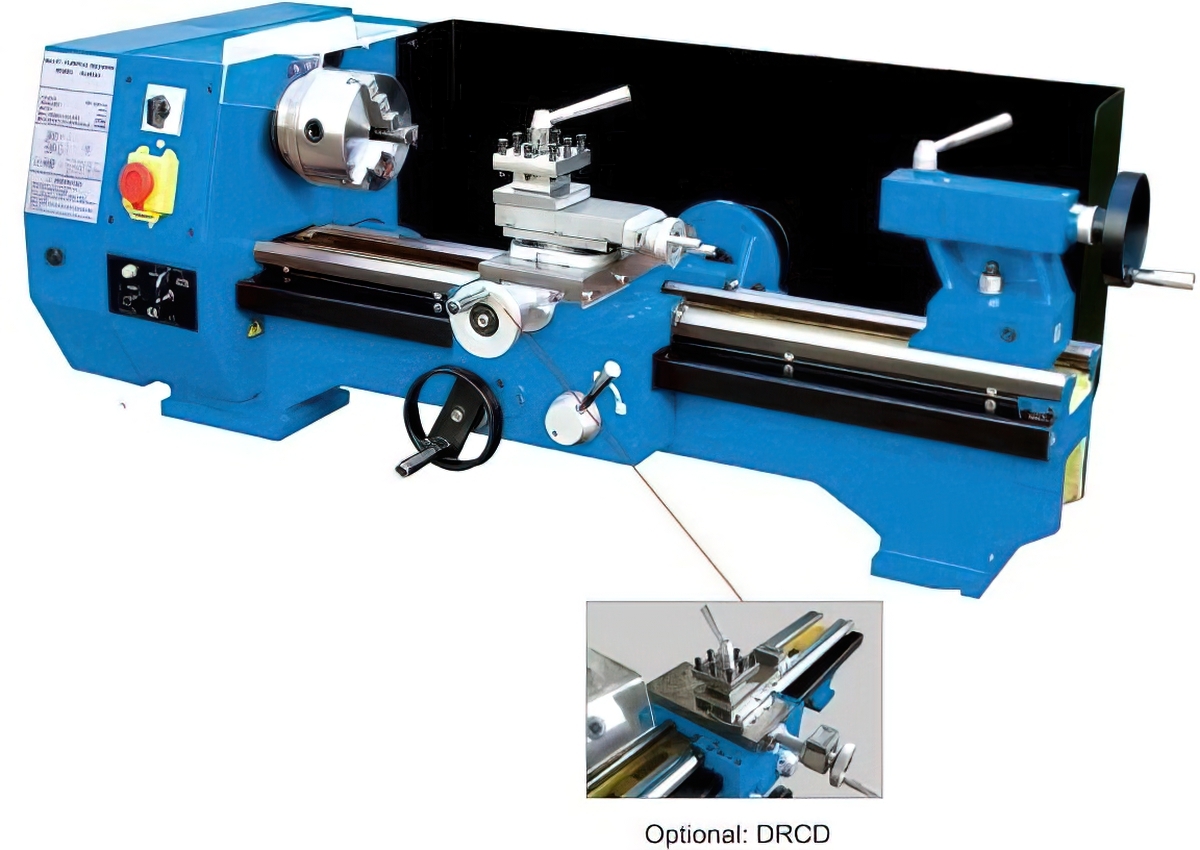

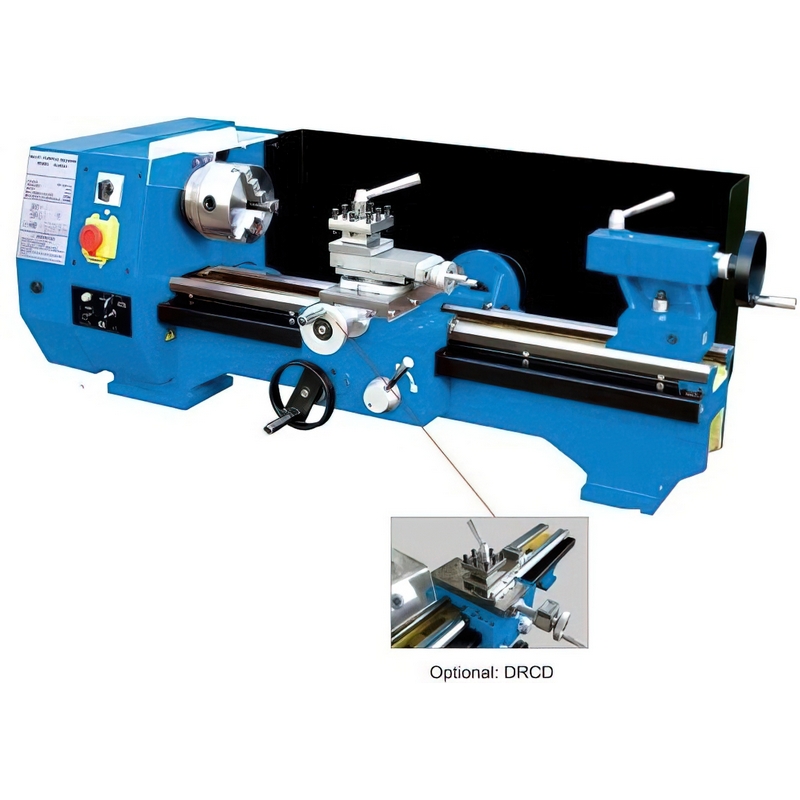

TN250 Bench Lathe Machine

Category: Bench Lathe

FEATURES:

Perfect introduction to metal turning. High accuracy.

Cast iron and steel construction giving great rigidity.

Near silent running

Converts to a multi-purpose machine with the milling attachment

High quality lathe suitable for workshop or school use





 Model No.

             TN250 x 400/550

 Item No.



Specifications

Swing over bed

250mm

Distance between centers

400mm / 550mm

Hole through spindle

20 mm

Spindle taper

MT3

Tailstock taper

MT2

Spindle speed

6 step, 125-2000 rpm

Cross slide travel

110 mm

Compound travel

75 mm

Motor output power

550 W

Range of metric threads

0.4-3.0 mm (12 threads pitches)

Range of inch threads

10-44 TPI ( 8 threads pitches)

Overall dimension (LxWxH)

1040x600x450 mm/1140x600x450 mm

Weight (Net/Gross)

125/160kg / 145/180kg

Packing size (LxWxH)

1140x600x450mm/1170x640x580mm





 Standard Accessories

 Optional Accessories

125mm 3 jaw chuck

 4-jaw chuck (100mm)

MT2 center

 Backplate

Change gear set

 Follow rest

Wrench set

 Steady rest



 Face plate (175mm)



 Threading dial



 Stand
