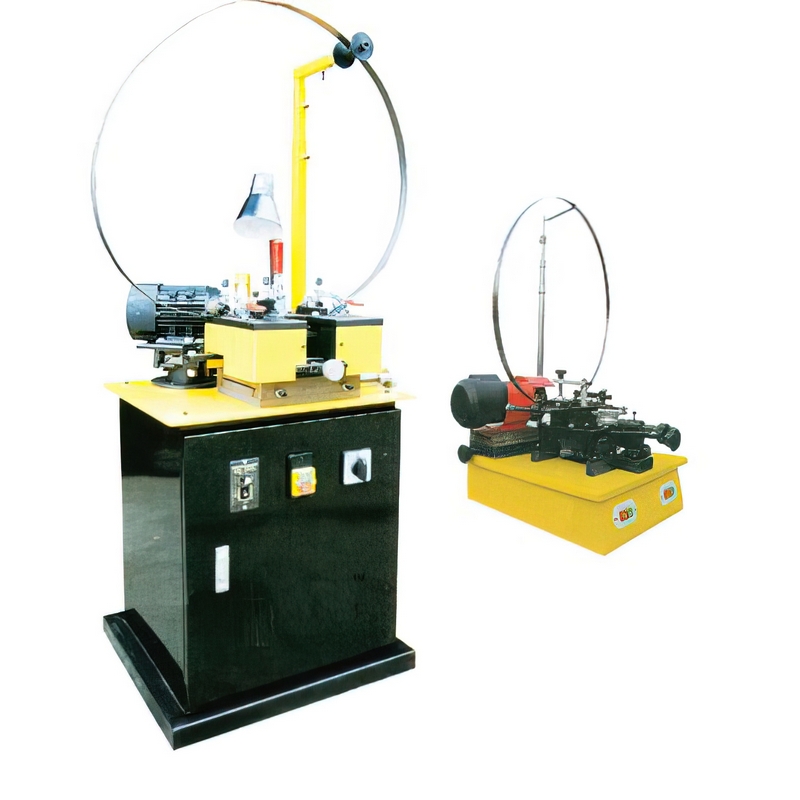

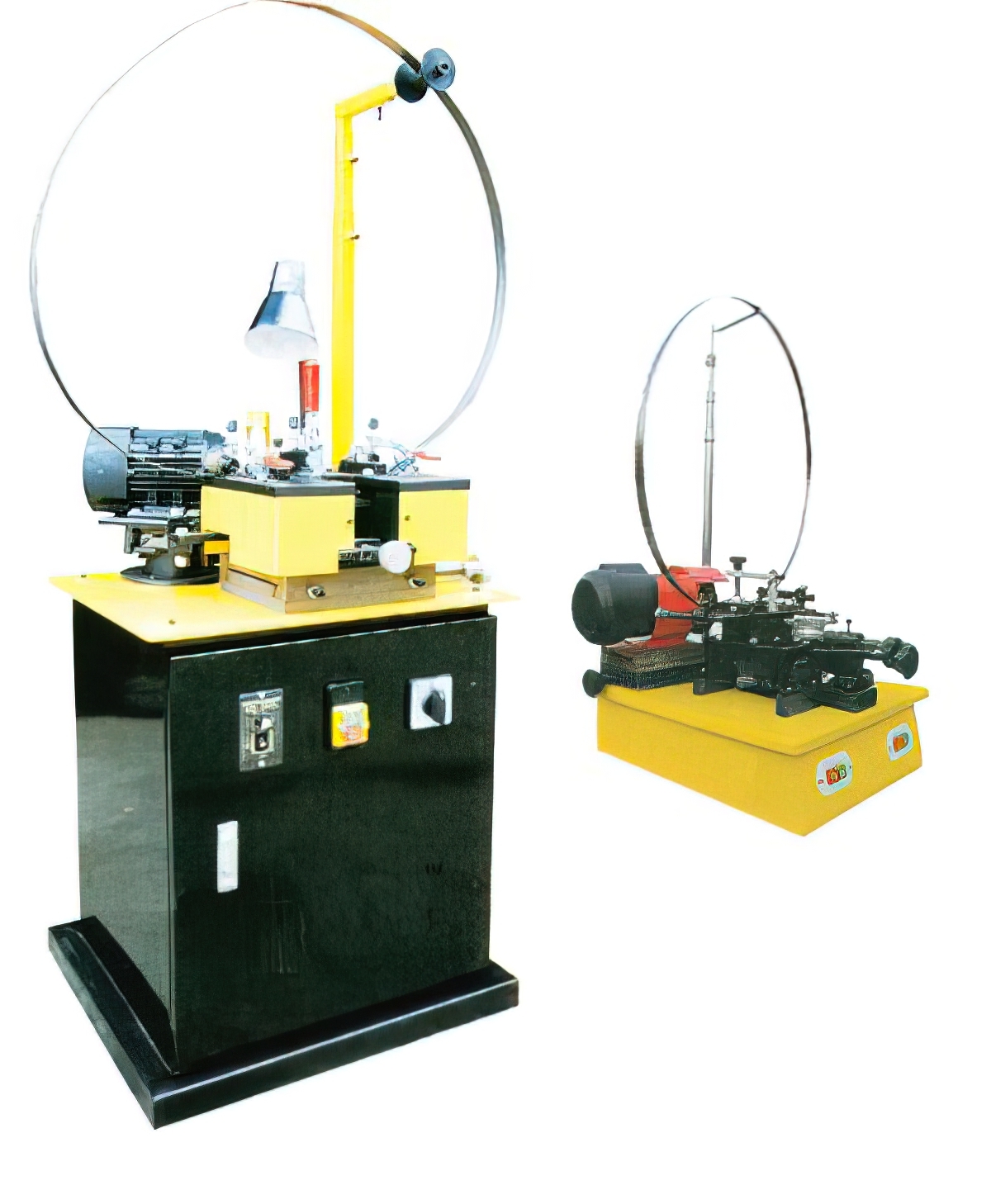

SBG-S280 SBG-S350 BAND SAW BLADE GRINDER
|
Model No. |
SBG-S280 |
SBG-S350 |
|
Item No. |
|
|
|
Specifications |
|
|
|
Saw blade width |
5~ 75 mm |
27 ~ 45 mm |
|
Saw pitch |
2 ~ 30 mm |
3 ~ 30 mm |
|
Feed speed |
40 ~ 60 teeth /min. |
|
|
Grind wheel |
150 mm |
|
|
Speed |
2800 rpm |
|
|
Motor |
250W |
|
|
Dimension |
650 x 450 x 380 mm |
600 x 500 x 1000 mm |
|
Weight |
30 kg |
80 kg |
|
● S280 can grind various thin woodworkers saw blade, double metal saw blade, |
|
● S350 is suitable for type 27, 34, 41 and could grind various of gear's type. |
