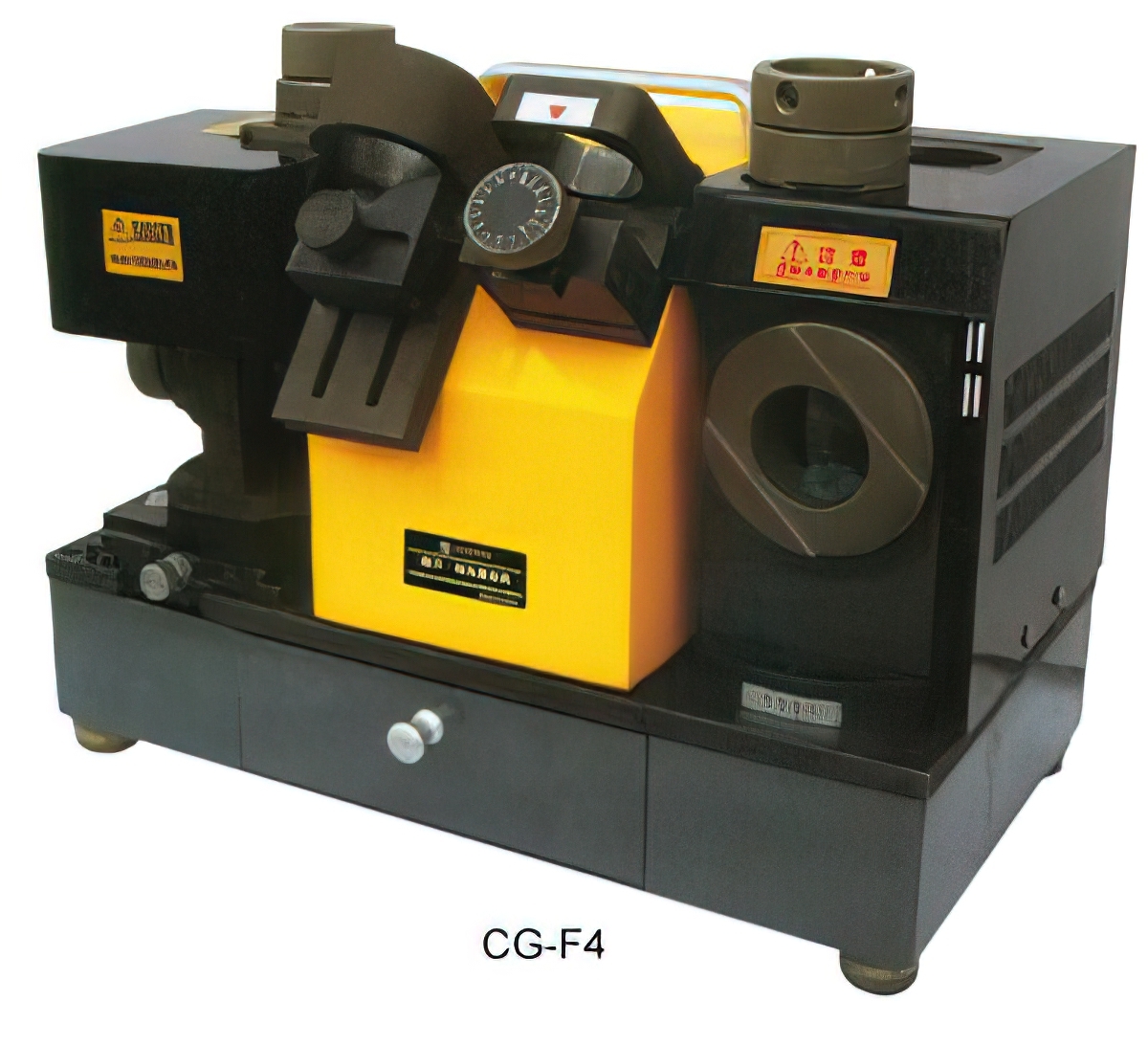

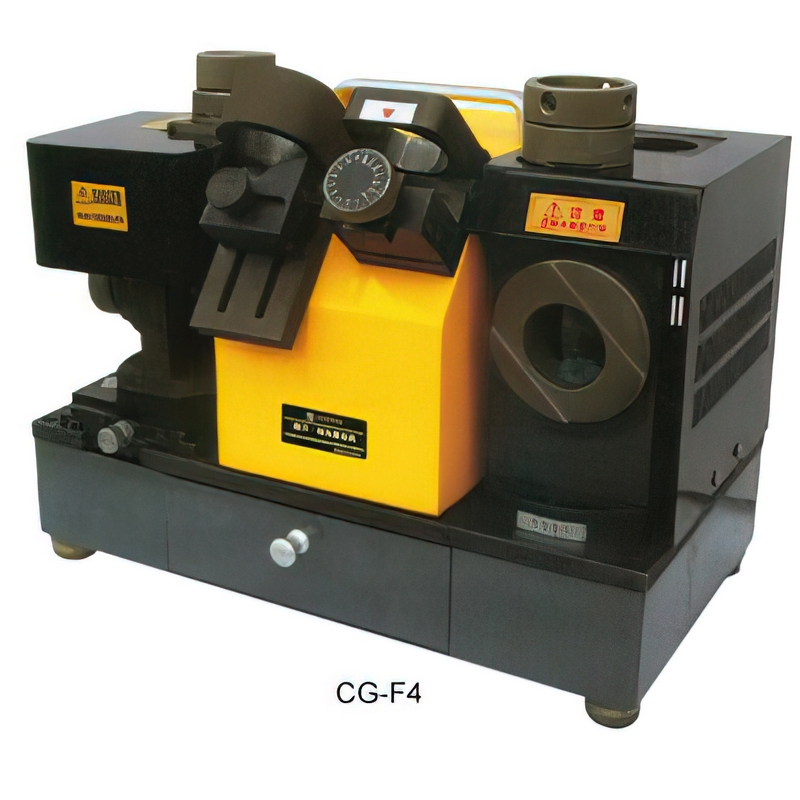

CG-F4 CG-F6COMPLEX GRINDER OF END MILL & DRILL
|
Model No. |
CG-F4 CG-F6 |
|
|
SCREW TAP |
DRILL |
|
|
Item No. |
|
|
|
Specifications |
|
|
|
Area |
Φ4 ~ Φ15 / Φ13 ~ Φ32 mm |
Φ2 ~ Φ15 / Φ8 ~ Φ32 mm |
|
Motor |
180W / 400W |
|
|
Speed |
5300 rpm |
4000 rpm |
|
Wheel |
CBN or SDC |
|
|
Dimension |
320 x 210 x 200 mm |
500 x 290 x 300 mm |
|
Weight |
20 kg |
50 kg |
|
●The side for end mill can grind 2-flute, 3-flute, 4-flute and |
