Surface Grinder

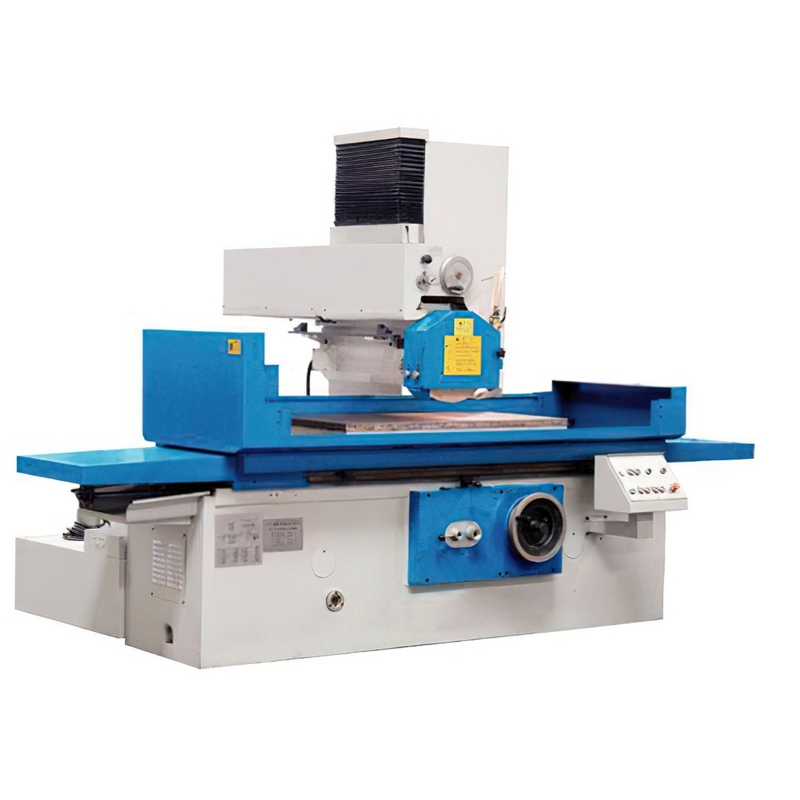

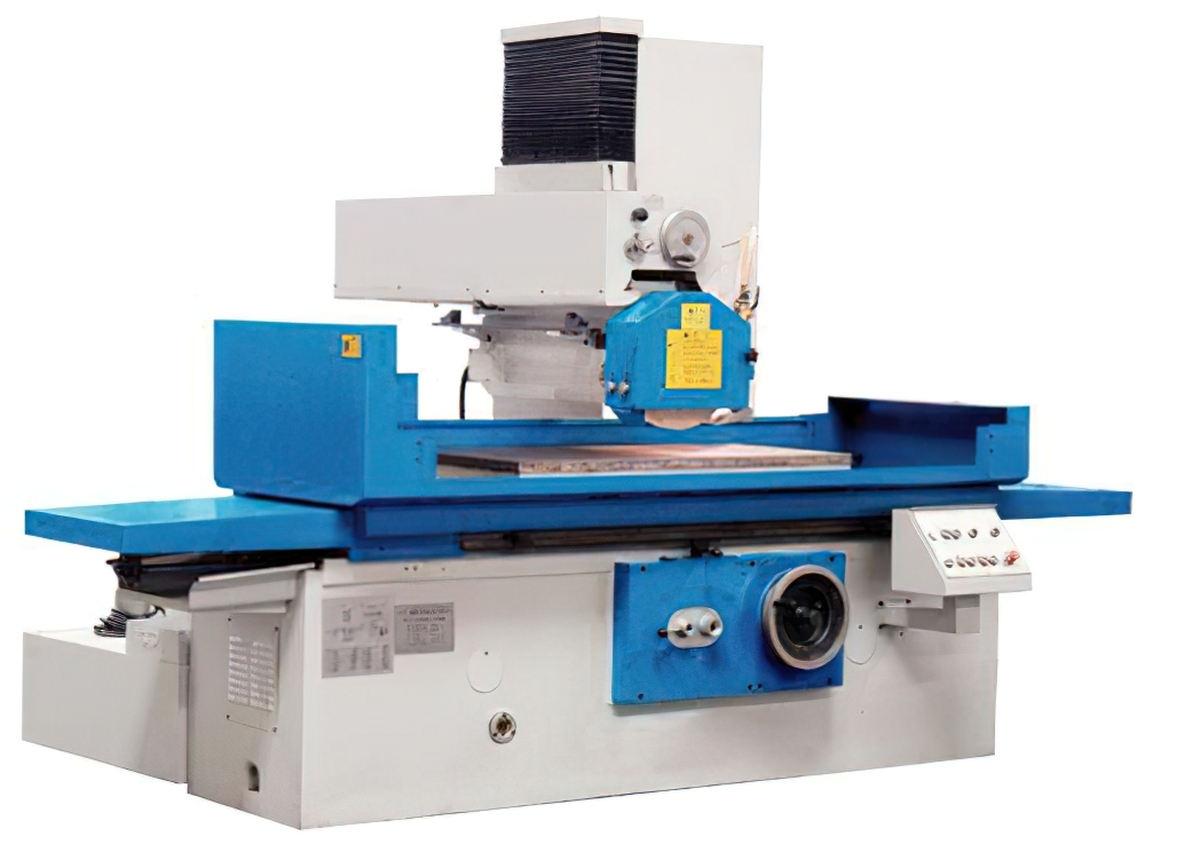

M7150AX2200 / M7163X1250 Surface Grinder Grinding Machine

Category: Surface Grinder



  Model No.

M7150Ax2200

M7163x1250

 Item No.

G1133

G1140

 Specifications





 Table size

500x2200 mm

630x1250 mm

 Max. machining dimension (mm)

500x2200 mm

630x1250 mm

 Distance from spindle to table

700 mm

 Longitudinal feed speed of worktable

3-27 m/min.

 T-slot

3x22 mm

 Wheelhead
 cross moving

 Continuous feed speed

0.5-4.5 m/min.

 Intermittent feed speed

3-30 mm/t

 Handwheel feed

0.01 mm/gra

 Vertical moving
 of wheel head

 Rapid speed

400 mm/min.

 Handwheel feed

0.005 mm/gra

 Wheel head
 motor

 Power

7.5 kw

 Rotation speed

1440 rpm

 Total power

15.75 kw

13.75 kw

 Max loading of able (with chuck)

1410 kg

1010 kg

 Chuck size (mm)

500x1000x2

630x1250x1

 Wheel size (ODxWxlD) (mm)

400x40x203

400x40x203

 Machine dimension (cm)

674x190x242

399x220x242

 Package dimension (cm)

680x228x252

410x228x252 cm

 Net weight

8780 kg

6860 kg
