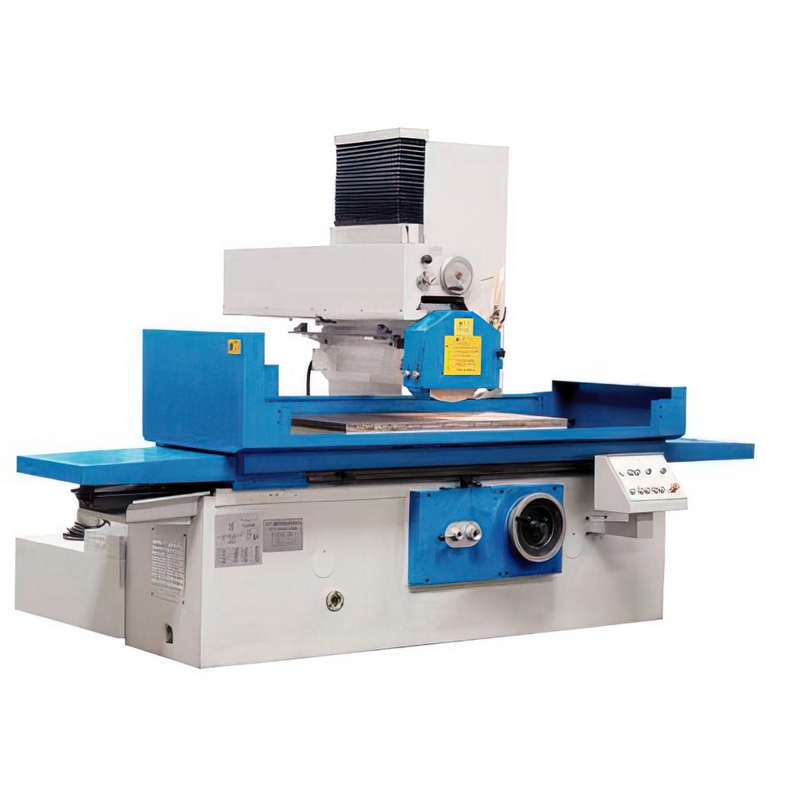

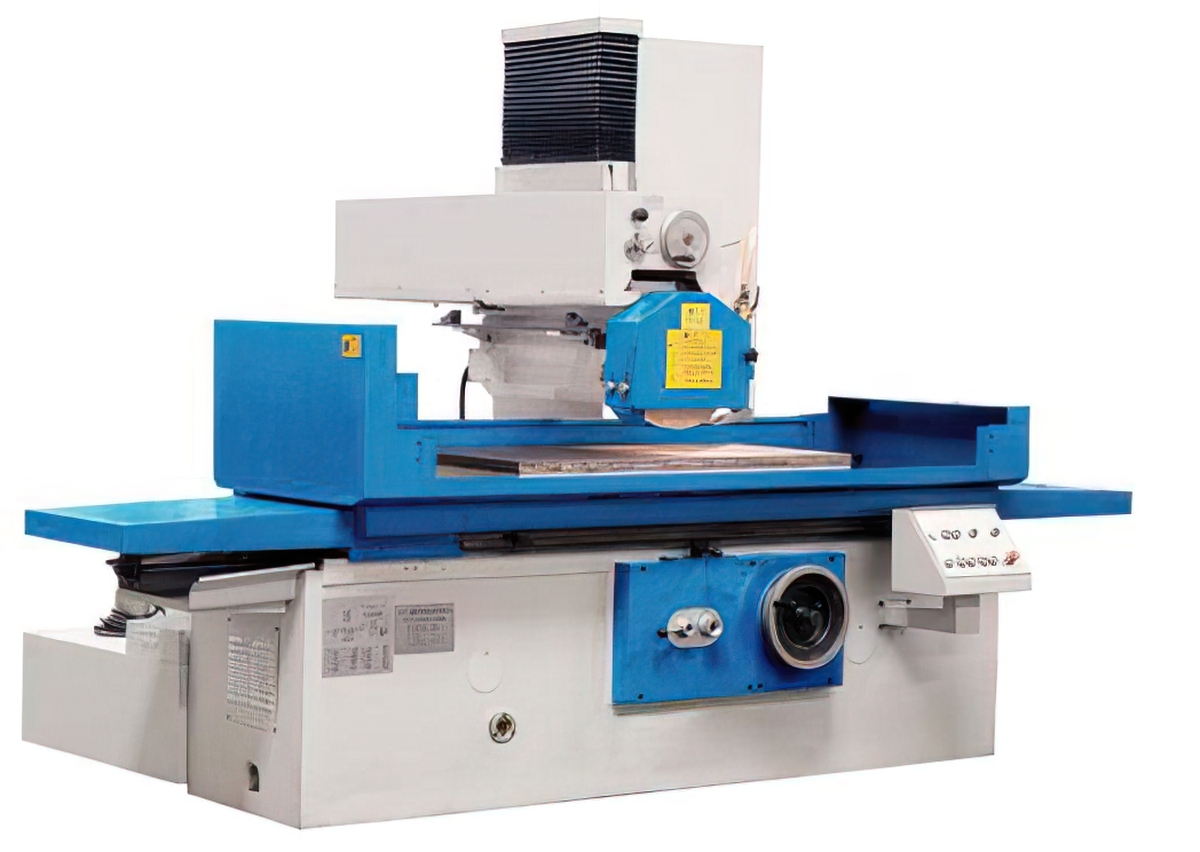

Model No. |
M7163Ax1600 |
M7163Ax2200 |
|
|
Item No. |
G1141 |
G1142 |
|
|
Specifications |
|
|
|
|
Table size |
630x1600 mm |
630x2200 mm |
|
|
Max. machining dimension (mm) |
630x1600 mm |
630x2200 mm |
|
|
Distance from spindle to table |
700 mm |
||
|
Longitudinal feed speed of worktable |
3-27 m/min. |
||
|
T-slot |
3x22 mm |
||
|
Wheelhead |
Continuous feed speed |
0.5-4.5 m/min. |
|
|
Intermittent feed speed |
3-30 mm/t |
||
|
Handwheel feed |
0.01 mm/gra |
||
|
Vertical moving |
Rapid speed |
400 mm/min. |
|
|
Handwheel feed |
0.005 mm/gra |
||
|
Wheel head |
Power |
7.5 kw |
|
|
Rotation speed |
1440 rpm |
||
|
Total power |
15.75 kw |
15.75 kw |
|
|
Max loading of able (with chuck) |
1290 kg |
1780 kg |
|
|
Chuck size (mm) |
630x800x2 |
630x1000x2 |
|
|
Wheel size (ODxWxlD) (mm) |
400x40x203 |
400x40x203 |
|
|
Machine dimension (cm) |
514x220x242 |
674x220x242 |
|
|
Package dimension (cm) |
520x228x252 |
680x228x252 |
|
|
Net weight |
7850 kg |
9650 kg |
|
