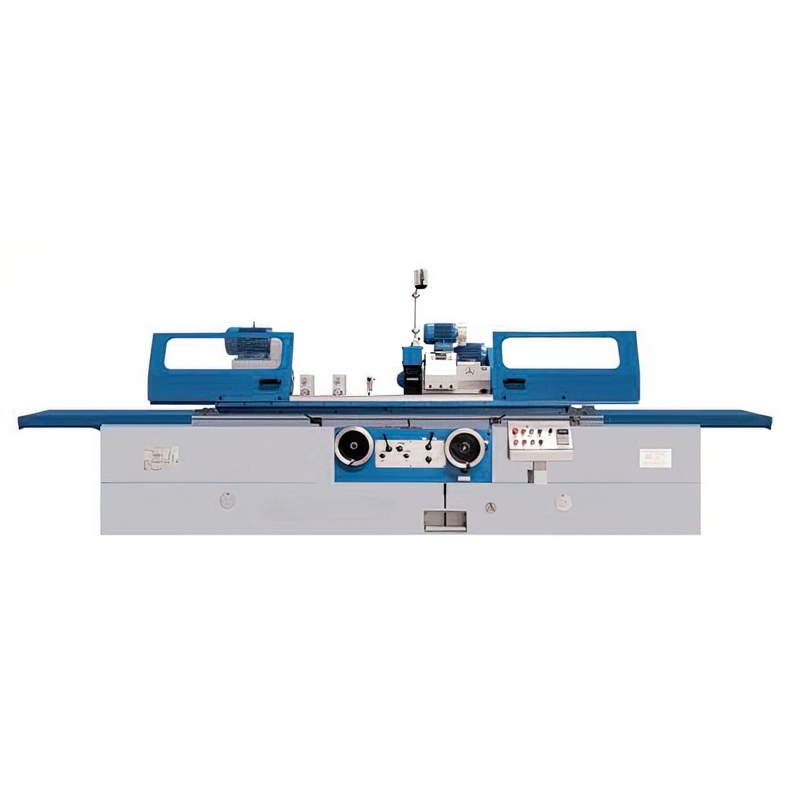

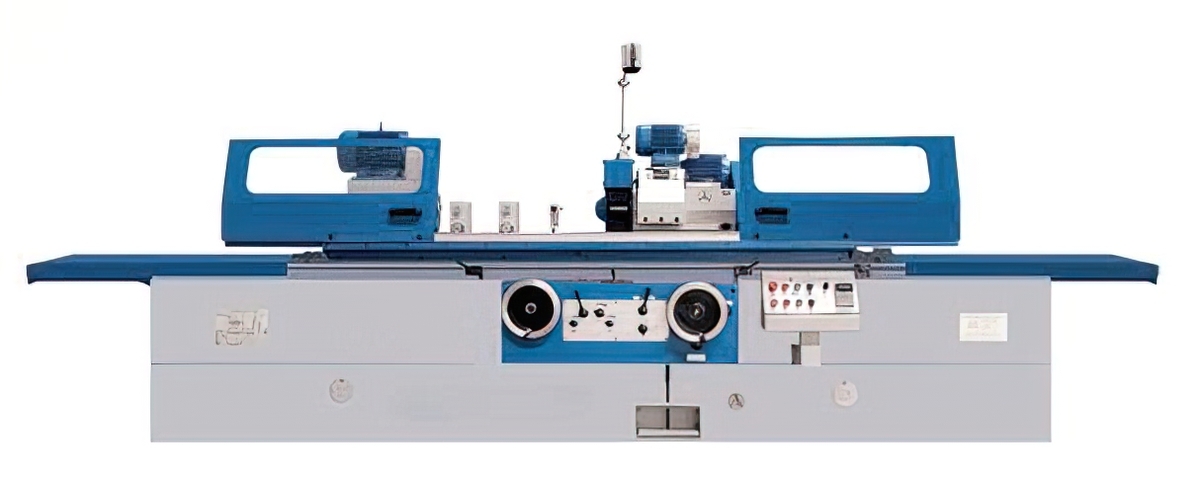

Model No.

M1463

　Specifications

　Distance between centers (mm)

2000/3000/4000/5000

　Center height (mm)

370 mm

　Dia. Ground (O.D) (mm)

30~630

　Dia. Ground (I.D) (mm)

30~250

　Max. length ground (O.D) (mm)

2000/3000/4000/5000

　Max. length ground (I.D) (mm)

320 mm

　Max. weight of work piece (mm)

3000 mm

　Workhead

　Swiveling angle

+90°

　Center taper (MT)

6 MT

　Spindle speed (r/min)

14~140 stepless

　Wheelhead

　Wheel spindle speed

1100/550 r/min.

　Wheelhead rapid travel

100 mm

　Max. travel

450 mm

　Swiveling angle

±30°

　Hand feed per. rev (mm)

Rough:4 fine:0.5

　Hand feed per. gra (mm)

Rough:0.02 fine:0.0025

　Wheel size (O.DxWxlD) (mm)

600 x 75 x 305 mm

　Peripheral velocity

35/17.5 m/s

　Internal grinding device

　Spindle speed (r/min.)

10000 r/min.

　Dimension of wheel (mm)

Max: 175x32x32 min:30x25x10

　Table

　Hand feed per. rev

5 mm

　Max swiveling angle
　of table

　Clockwise

3°(1500) 2°(2000/3000) 1°(4000)

　Anticlockwise

6°(1500) 5°(2000)
3°(3000) 2°(4000)

　Longitudinal speed range of table

0.1~ 2.5 m/min.

　Tailstock

　Center tape

(metric) 80#

　Quill travel

70 mm

　Motor

　Wheelhead motor power (kw)

7/11 kw

　Internal grinding (kw)

1.5 kw

　Workhead motor power (kw)

1.5 kw

　Machine

　Gross weight (t)

22t (2000) 28t (3000)
34t (4000) 39t (5000)

　Packing dimension (cm)

695x242x226(2000)
890x242x226(2000)
1100x242x26(4000)
1250(5000)
