Vertical Drilling Machine

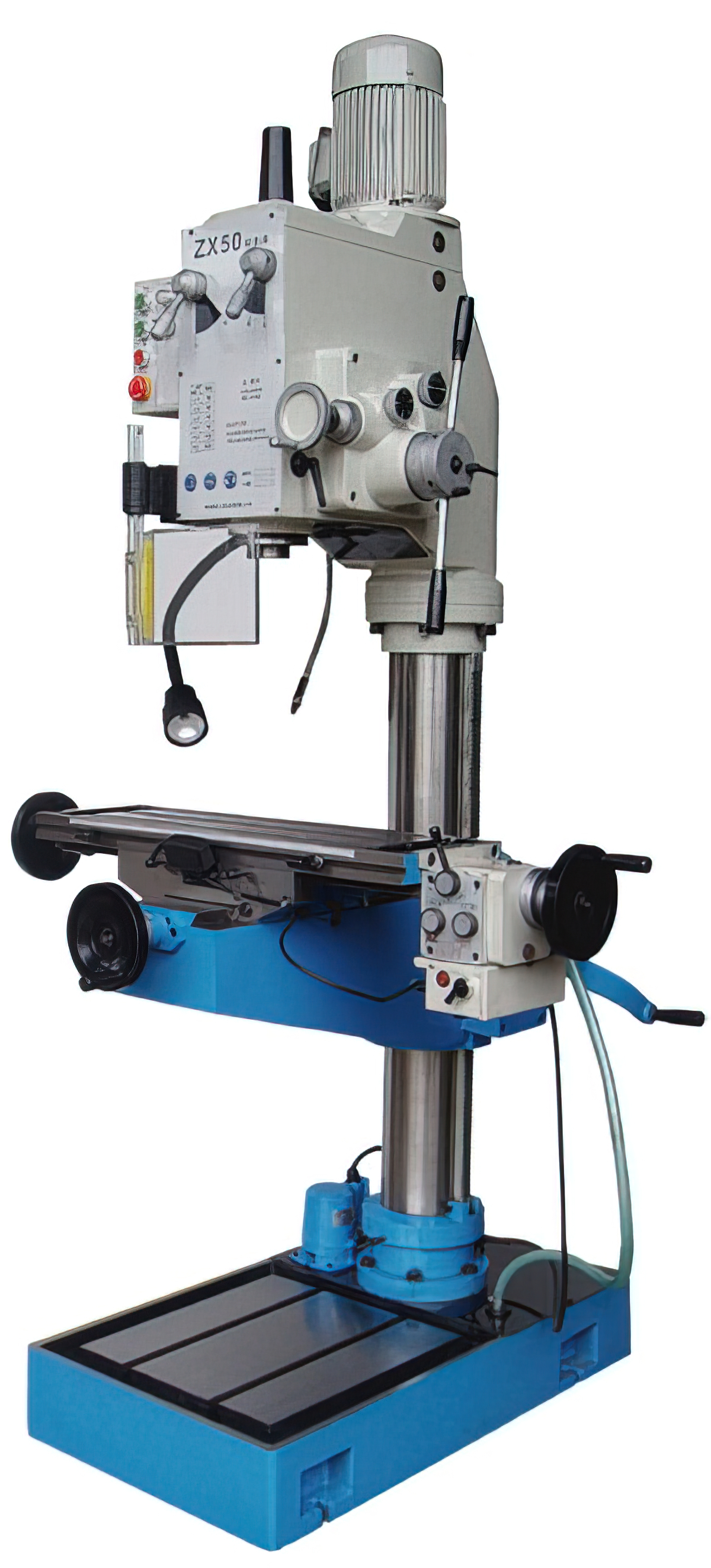

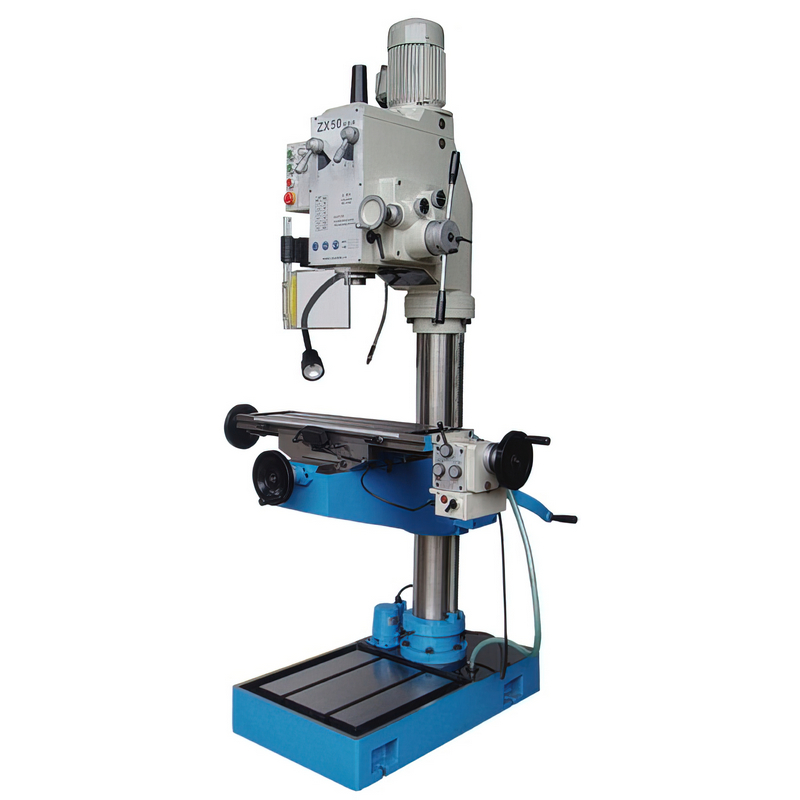

ZX50 Vertical Drilling Machine



 Model No.

ZX50

    Item No.



 Specifications

 Max. drilling capacity (Iron/steel)

Φ60 / 50 mm

 Max. tapping capacity

33 mm

 Max. face milling capacity

100 mm

 Max. end milling capacity

32 mm

 Spindle taper

MT4

 Spindle stroke

210 mm (manual) / 180 mm

 Step of spindle speeds

6

 Range of spindle speeds (50/60Hz)

50-1510 rpm / 60-1810 rpm

 Spindle feed range

0.1/0.2/0.3/0.4 mm/rev.

 Diameter of quill

100 mm

 Diameter of column

160 mm

 Distance from spindle to column

350 mm

 Distance from spindle nose to table

700 mm

 Distance from spindle end to base

1290 mm

 Table size

800 x 240 mm

 Table travel

500 x 280 mm

 Table longitudinal feed range

20 ~ 125 mm/min.

 T-slot

3 x 18 - 80 mm

 Base size

940 x 580 mm

 Main Motor

3 kw

 Coolant motor

60 w

 Packing size

1010 x 1200 x 2134 mm

 Net / Gross weight

830 / 880 kg



Standard accessories:
Draw bar, Adapter, Taper shank for drilling chuck ,Drilling chuck ,Arbor ,T slot bolt ,Washer ,Nut ,Tilted wedge ,Spanner ,Oil gun



Optional accessories:

Worktable auto up-down system, depth indicator ,spring collet , vices , milling collet ,milling clamp
