Vertical Drilling Machine

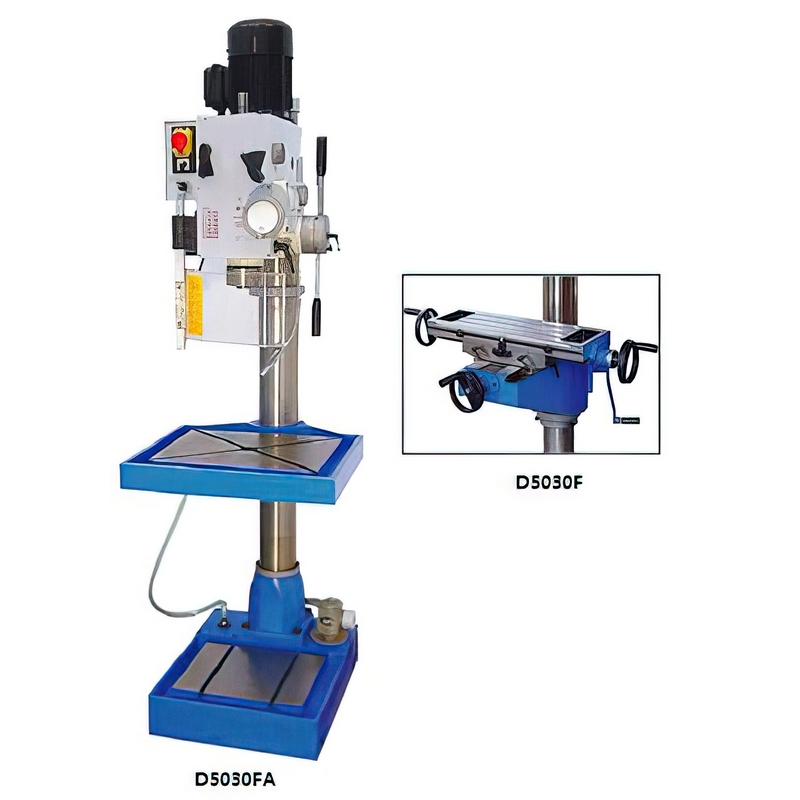

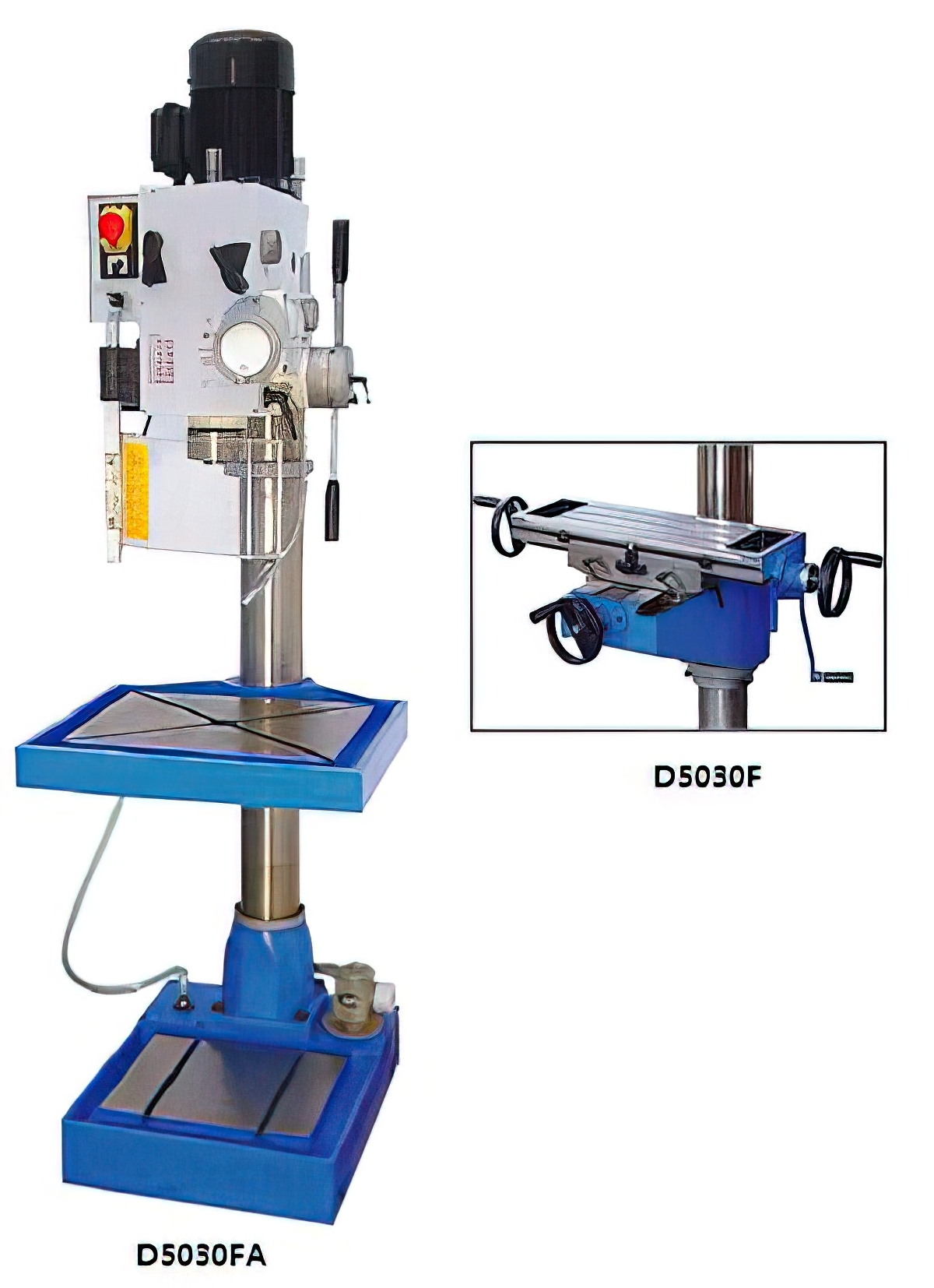

D5030F, 30FA Vertical Drilling Machine



 Model No.

D5030F

D5030FA

    Item No.





 Specifications

 Max. drilling capacity

30mm (MT3) 40mm (MT4)

 Spindle taper

MT3, MT4, R8 or ISO30

 Spindle stroke

120 mm

 Step of spindle speeds

6 (for single speed motor)

 Range of spindle speeds

75 ~1600 rpm

 Diameter of column

Φ115 mm

 Distance from spindle to column

272 mm

 Distance from spindle nose to table

610 mm

 Distance from spindle end to base

1180 mm

 Table size

540 x 470 mm

600 x 190 mm

 Table travel

370 x 190 mm

 T-slot

3 x 12mm

 Base size

650 x 450 mm

 Main Motor

0.85 / 1.1 kw

 Packing size

740x720x1830mm

820x720x1830mm

 Net weight

330 kg

350 kg



Ask about this product
