Drilling Machine

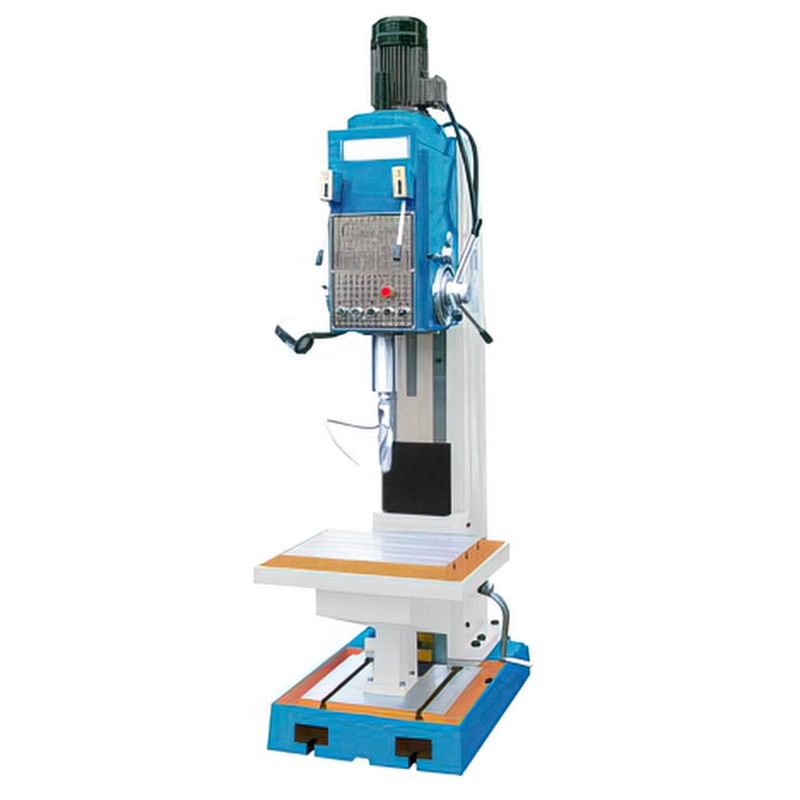

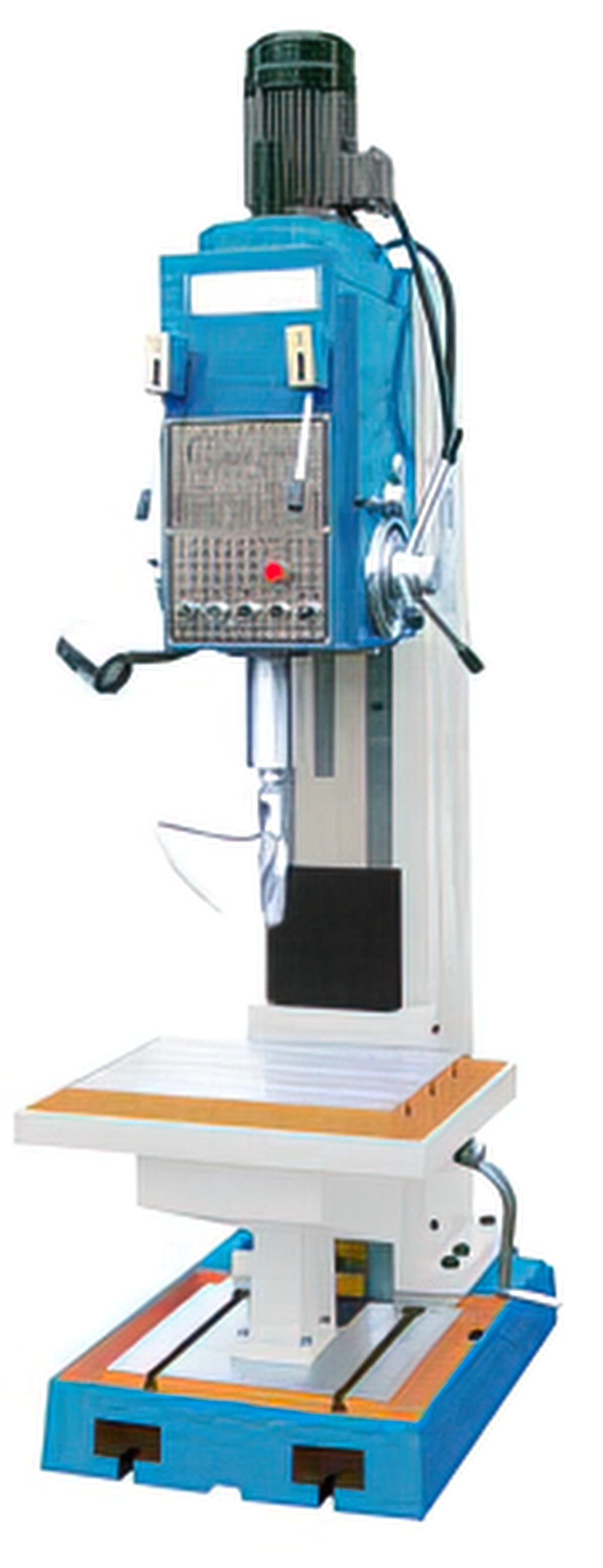

D5140, 50 Box-type Drilling Machine



  Model No.

D5140

D5150

    Item No.





 Specifications

 Max. drilling capacity

Φ40 mm

Φ50 mm

 Max. feed resistance

16000 N

16000 N

 Max. permissible spindle torque

350 N.m

350 N.m

 Main motor

3 kw

3 kw

 Throat distance

335 mm

335 mm

 Spindle taper

MT4

MT5

 Spindle stroke

250 mm

250 mm

 Spindle box travel (manual)

200 mm

200 mm

 Step of spindle speeds

12

12

 Range of spindle speeds

31.5 ~ 1400 rpm

31.5 ~ 1400 rpm

 Feed rates (steps)

0.056 ~ 1.80 mm/rev. (9)

0.056 ~ 1.80 mm/rev. (9)

 Max. travel of table

300 mm

300 mm

 Table size

560 x 480 mm

560 x 480 mm

 Distance from spindle nose to table

750 mm

750 mm

 Overall dimension

1090 x 905 x 2535 mm

1090 x 905 x 2535 mm

 Packing size

2660 x 1120 x 1144 mm

2660 x 1120 x 1144 mm

 Net weight

1250 kg

1250 kg
