CNC Lathe

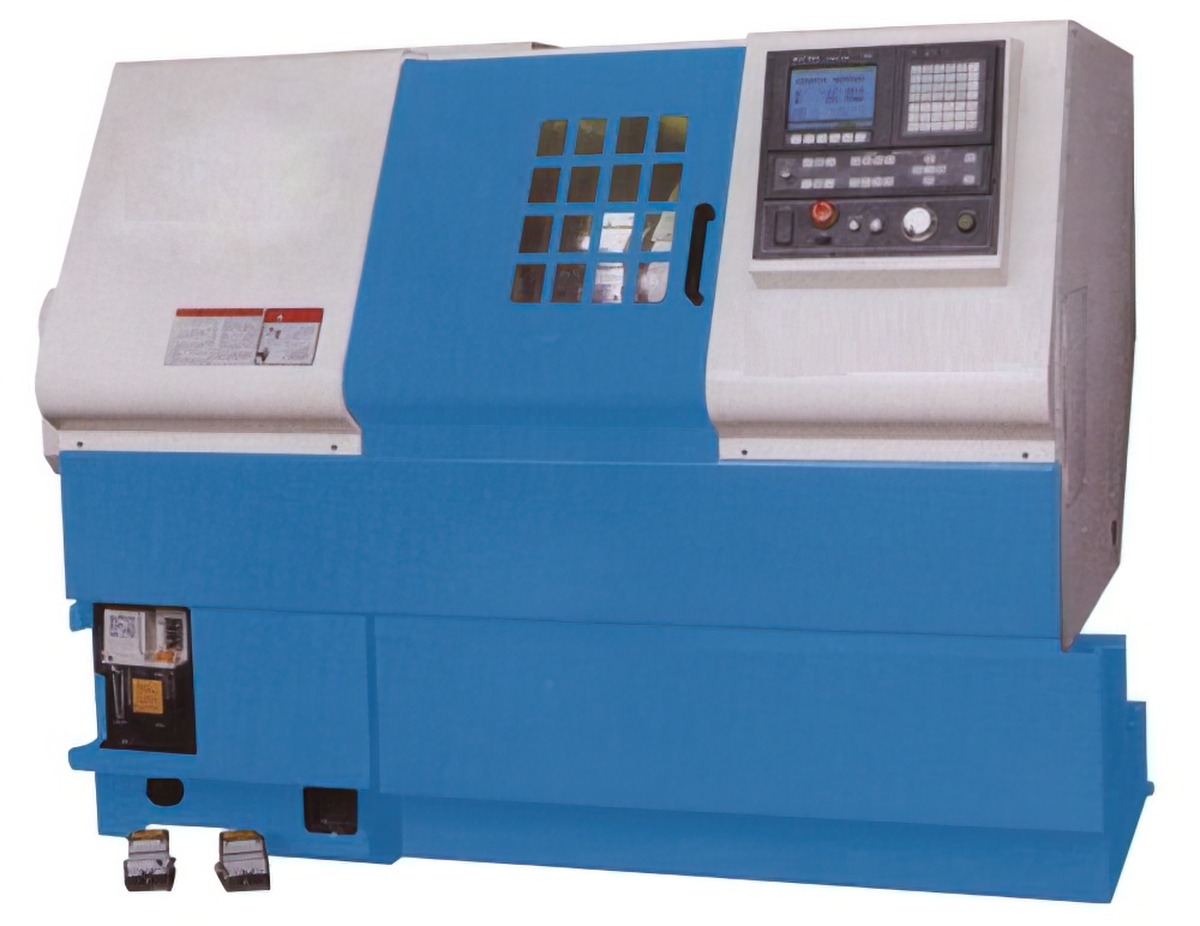

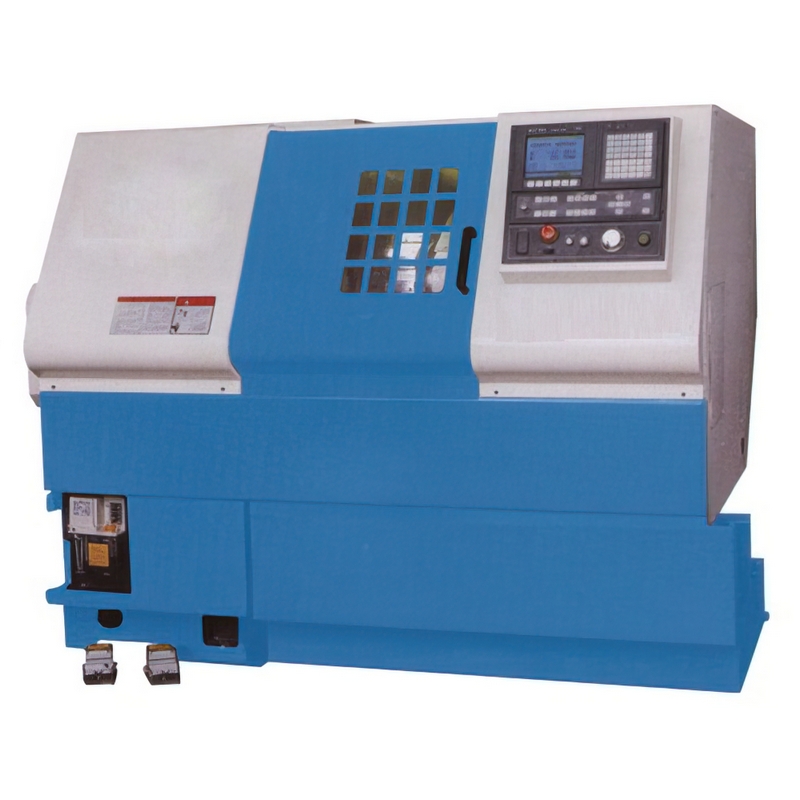

SL25 / 25A CNC Lathe Machine

Category: CNC Lathe

Slant Bed CNC Lathe




 Model No.

SL25

SL25A

 Max. swing over bed

Φ500 mm

 Max. cutting dia. for disc parts

Φ300 mm

 Max. cutting dia. for axle parts

Φ250 mm

 Maximum turned length for axle parts

400 mm

 Max. cross travel (X)

180 mm

 Max. longitudinal travel (Z)

500 mm

 Spindle bore

Φ62 mm

Φ63 mm

 Spindle nose

Φ170 mm

A2-6

 Chuck dia.

8"

 Spindle speed

3000 rpm

5000 rpm

 Rapid feed for X axis

10 m/min.

 Rapid feed for Zaxis

20 m/min

 Number of tool post

8

 Outside dia. cutting tool shank

25x25 mm

 Max. inner dia. Cutting tool shank

Φ40 mm

 Guide ways X & Z

Precision linear ball rail

 Servo motor for X axis

7 Nm

 Servo motor for Z axis

7 Nm

 Tailstock sleeve dia.

Φ63 mm

 Tailstock sleeve travel

115 mm

 Taper hole of tailstock quill

M.T.4

 Type of spindle motor

Frequency

Servo

 Spindle motor power

7.5 kw

7.5/11 kw

 Bed structure

30° Slant bed

 Min. Input

0.001 mm

 Repeatability

0.005/0.006 mm

 Capacity of coolant

150L

 Surface roughness

≤Ra0.8 um(Nonferrous)     ≤Ra1.6 um(Steel part)

 Overall dimensions(L x W x H)

1950 x 1650 x 1680 mm

 Net weight

3400 kg





 Standard Accessories

 Optional Accessories

 Total sealed fencing system

 Hollowed hydraulic chuck

 Solid hydraulic chuck

 Automatic chip conveying system

 Lubrication system

 Hydraulic tailstock

 Hydraulic system (for SL35)

 Bar feeder system (for CSL35)
