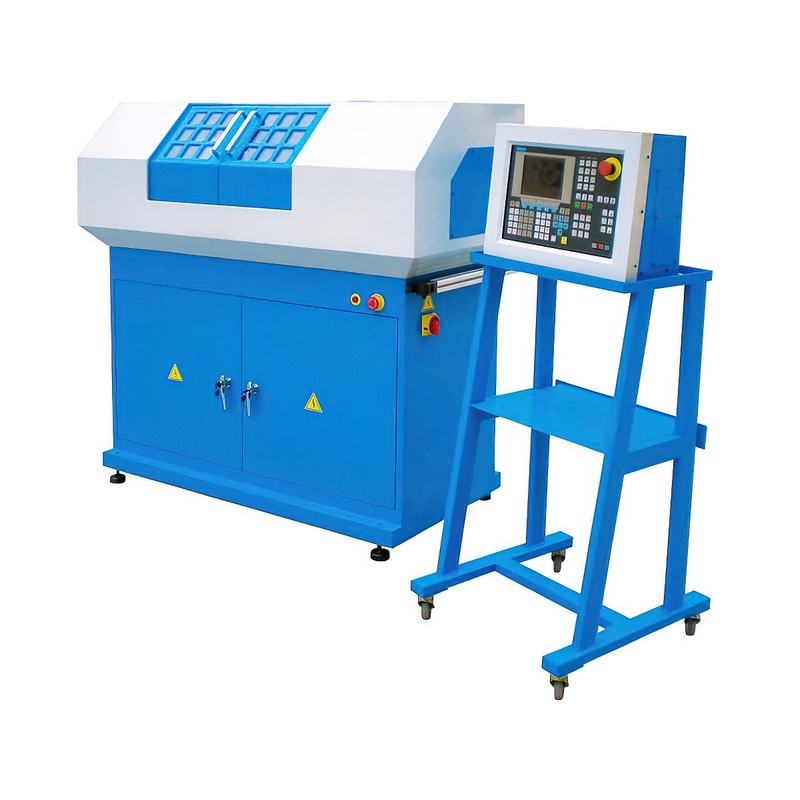

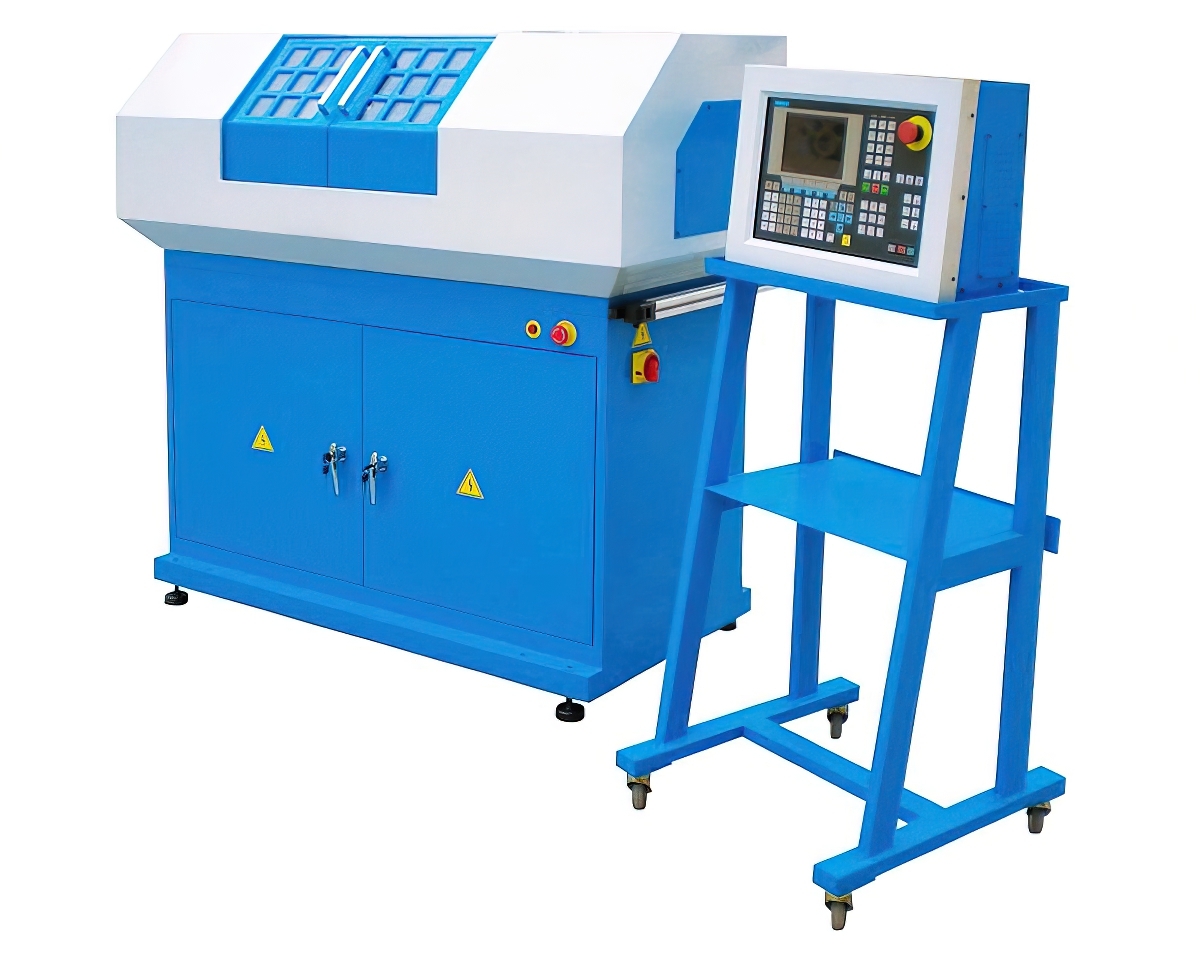

TNK260 x 550 - CNC Lathe Machine
|
Model No. |
TNK260 x 550 |
|
|
Max. Swing over bed |
260mm |
|
|
Max. Swing over slide |
110mm |
|
|
Max. distance between centers |
550mm |
|
|
Width of bed |
135mm |
|
|
Spindle speed |
100 – 3000 r/min |
|
|
Spindle taper |
MT3 |
|
|
Max. speed of moving (X, Z) |
2000mm/min |
|
|
Max. feeding speed (X, Z) |
500mm/min |
|
|
Max. cross travel (X) |
180mm |
|
|
Max. longitudinal cross travel (Z) |
320mm |
|
|
Motor of X / Z axis |
4 / 4 N.m |
|
|
Tool position |
4 |
|
|
Angle of tool post |
360º |
|
|
Taper of tailstock |
MT2 |
|
|
Travel of tailstock |
50mm |
|
|
Position accuracy |
0.015mm |
|
|
Repeatability position accuracy |
0.01mm |
|
|
Tool post return orientation precision |
0.005mm |
|
|
Main motor power |
1000w |
|
|
CNC Controller |
Siemens 802S / Siemens 808D |
|
|
Machine size |
1460*760*1450mm |
|
|
Packing size |
1630*1070*1685mm |
|
|
Weight (NW / GW) |
440 / 530kg |
|
