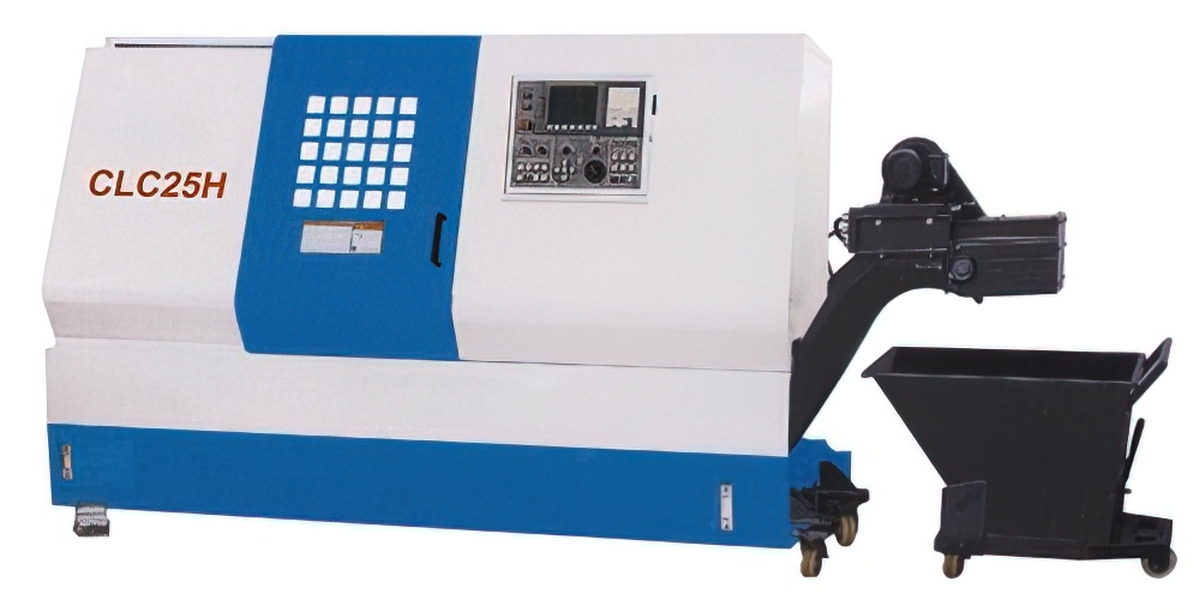

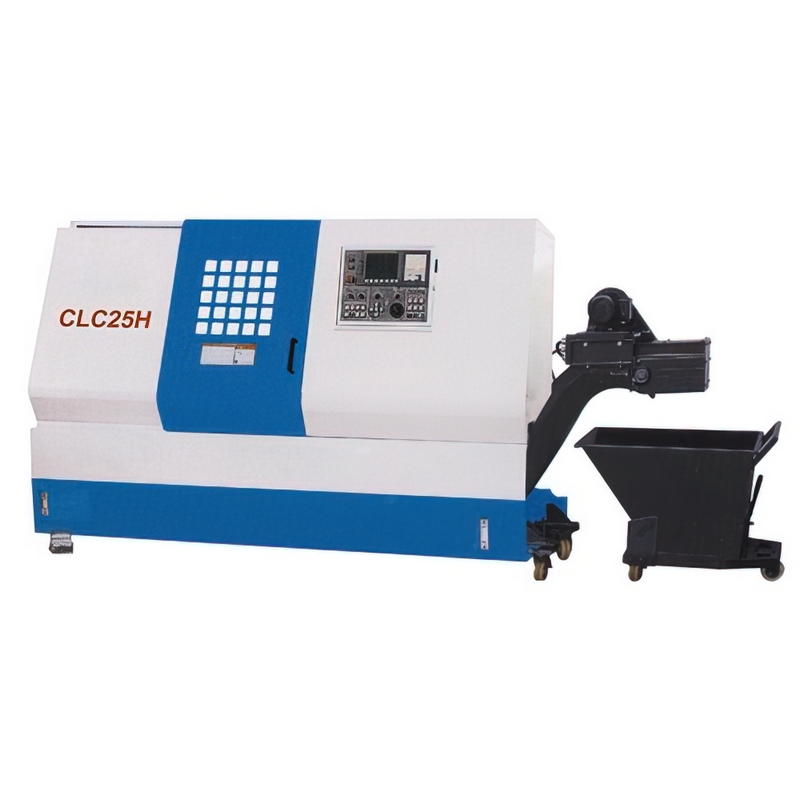

CLC25 / 25H CNC Lathe Machine

Category: CNC Lathe

CNC LATHE CENTER





FEATURE:

●  FANUC control system and servo motors.

●  The spindle is supported by NSK bearings.

●  Automatic timely lubrication device.

●  Stainless steel inner protection, totally sealed outside protection.

●  Different control and parts can be combined according to customers' requirement.







 Model No.

CLC25

CLC25H

 Max. swing over bed

Φ500 mm

 Max. cutting dia. for disc parts

Φ420 mm

Φ370 mm

 Max. cutting dia. for axle parts

Φ250 mm

 Max. cross travel (X)

220 mm

 Max. longitudinal travel (Z)

550 mm

550 mm

 Spindle bore

Φ65 mm

 Spindle nose

A2 - 6

 Taper of spindle bore

Φ 80 mm 1:20

 Spindle speed (Max.)

4000 r/min

 Hydraulic chuck dia.

8"

 Rapid feed for X axis

12 m/min

 Rapid feed for Z axis

20 m/min

 Number of tool post

12 (Hydraulic)

12 (Servo)

 Servo motor for power tool

2.2/3.7 kw

 Max. speed of power tool

5000 r/min

 Outside dia. Cutting tool shank

25 x25 mm

20 x20 mm

 Max. inner dia. Cutting tool shank

Φ40 mm

Φ32 mm

 Guide ways X & Z

Precision linear ball rail

 Tailstock sleeve dia.

Φ80 mm

 Tailstock sleeve travel

100 mm

 Tailstock center type

M.TNo.4

 Type of spindle motor

Servo

 Spindle motor power

11/15 kw

15/18.5 kw

 Bed structure

45° Slant bed integrated with stand

 Min. Input

0.001 mm

 Repeatability

± 0.003mm

 Capacity for coolant

120L

 Overall dimensions (L x W x H)

2712 x 1660 x 1850 mm

 Net weight

4500 kg
