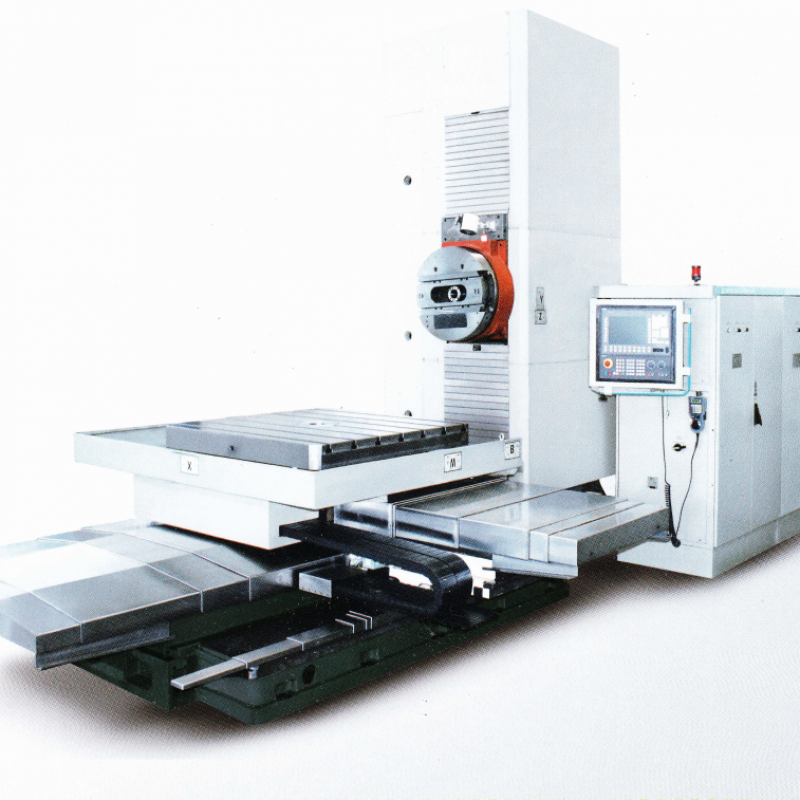

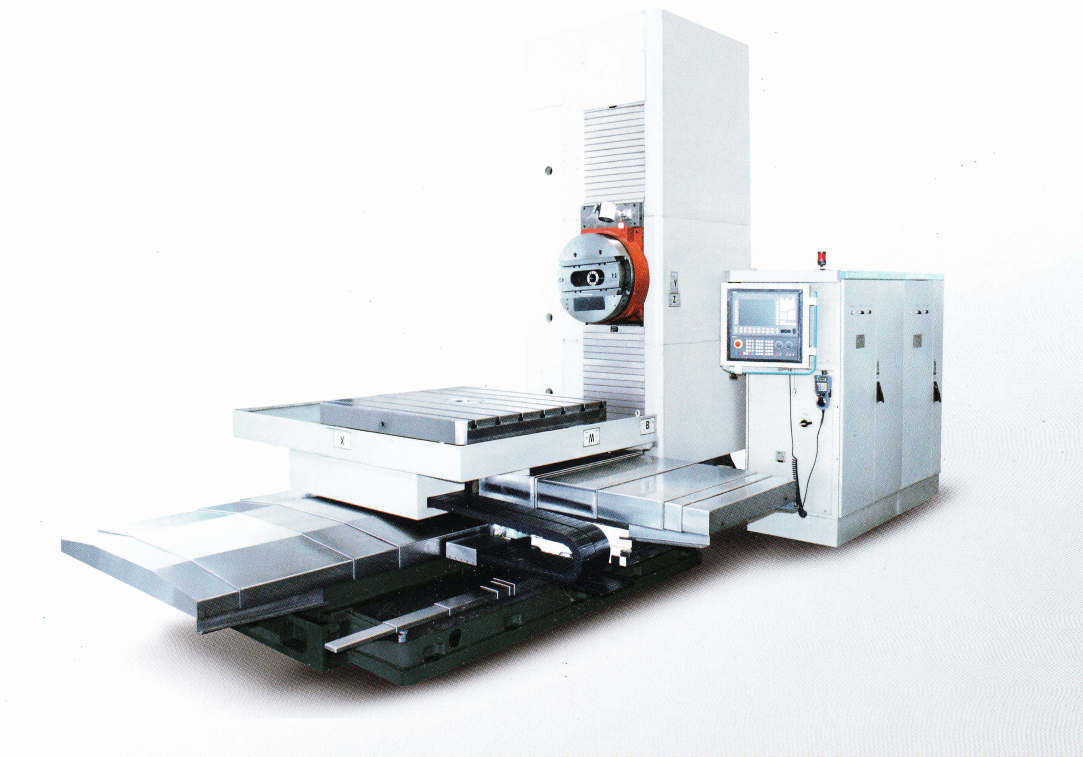

Model No. |
JNK6113 |
JNK6113B |
|
Item No. |
|
|
|
Specifications |
||
|
Table cross travel(X) |
1800mm |
1800mm |
|
Spindle head travel(Y) |
1600mm(optional 2000mm) |
|
|
Table longitudinal travel(W) |
2000mm |
|
|
Spindle travel(Z) |
900mm |
|
|
Travel of facing head slide(U) |
200mm |
- |
|
Table size(W*L) |
1400*1600mm(optional 1600*1800mm) |
|
|
Max. load of table |
8000kg |
|
|
Spindle diameter |
130mm |
130mm |
|
Speed of facing head |
6-1000r/min |
7-2000r/min |
|
Taper |
ISO 50 |
|
|
Main motor power |
17kw |
30kw |
|
Speed of facing head |
4-165r/min |
- |
|
Rapid feed X/Y/W |
10000mm/min |
|
|
Z |
3000mm/min |
|
|
U |
1000mm/min |
- |
|
B |
2r/min |
|
|
Feed rate X/Y/W |
1-6000mm/min |
|
|
Z |
1-2000mm/min |
|
|
U |
1-500mm/min |
- |
|
B |
2r/min |
|
|
Positioning accuracy X/Y/W |
0.024(±0.012)mm |
|
|
Z/U |
0.03(±0.015)mm |
0.03(±0.015)mm (Z) |
|
B |
±6mm |
10''mm |
|
Repeatability X/Y/W |
0.015(±0.008)mm |
|
| Z/U |
0.02(±0.008)mm |
0.02(±0.01)mm (Z) |
| B |
±3'' |
5'' |
| CNC System |
SIEMENS 840D & FANUC 31i |
- |
| Total power |
76kva |
|
| Weight of machine |
32000kg |
38000kg |
| Overall dimensions(L*W*H) |
6720*4104*4085mm |
- |
