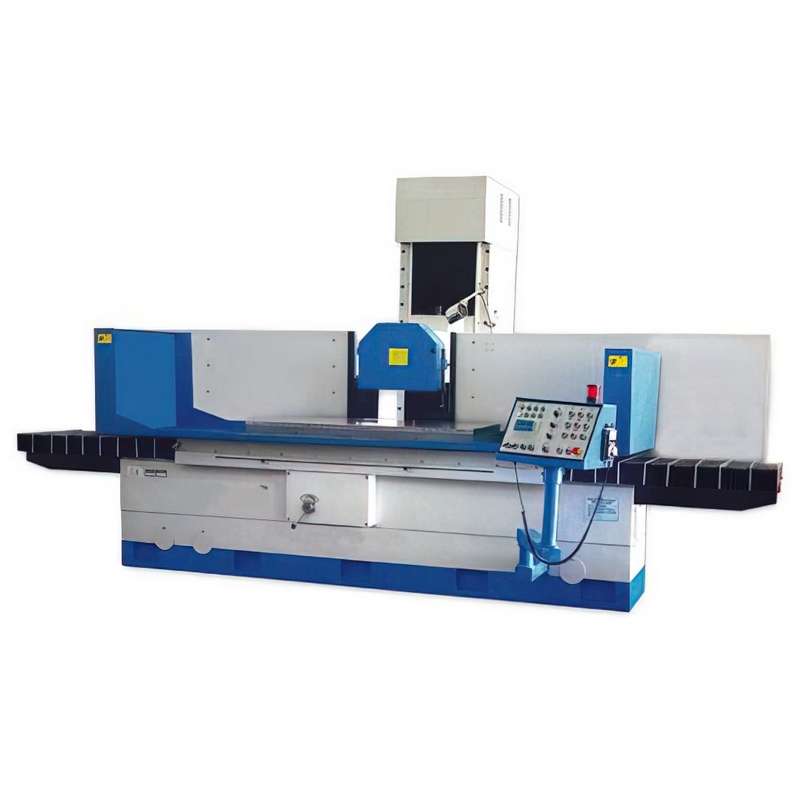

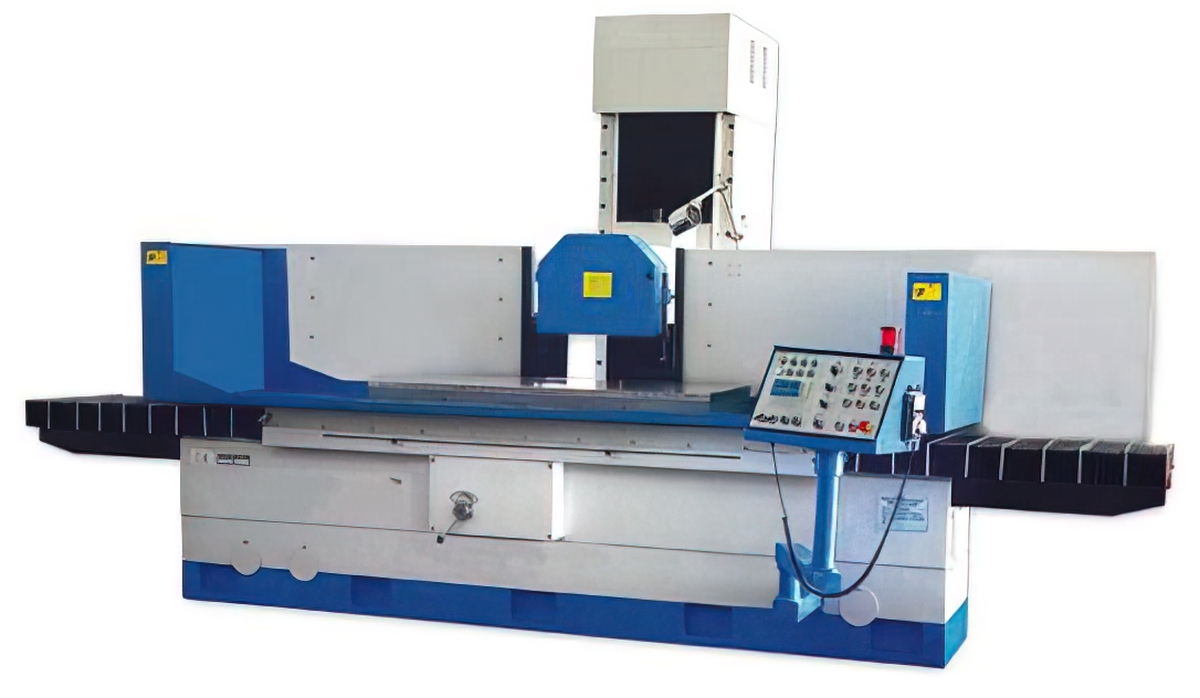

SG60300SD / SG80160SD Surface Grinder Grinding Machine

Category: Surface Grinder

SG SGA-SERIES PLC CNC COLUMN MOVING SURFACE GRINDER





 Model No.

SG60300SD
SG60300CNC

SG80160SD
SG80160CNC

 Item No.





 Specifications





 Table size (mm)

610x3000

810x2200

 Max. grinding (mm)

610x3000

810x2200

 Max. distance from table to spinddle center

820 (925)mm

 Magnetic chuck size (optional) (mm)

600x1000x3

800x800x2

 Tabe longitudinal movement speed

5 - 25 m/min.

 Wheelhead
 cross moving

 Auto feed

1 - 30 mm

 Rapid speed

0.05 - 2 m/min.

 Feed of electro hand wheel

0.005 mm/gra

 Wheelhead
 vertical moving

 Auto feed

0.005 - 0.05 mm/t

 Rapid feed

0.05 - 2 m/min.

 Feed of electro hand wheel

0.005 mm/gra

 Grinding wheel

 Speed

960 (1450) rpm

 Size (ODxWxID)

500x75x305 (450x75x203) mm

 Spindle motor

18.5 kw

 Max loading capacity (include magnetic chuck)

2300 kg

1630 kg

 Total rated power

28.5 kw

 Height of machine

2700 mm

 Floor space (mm)

8200x3000 mm

4700x3500 mm

 Net weight

12500 kg

10000 kg
