Surface Grinder

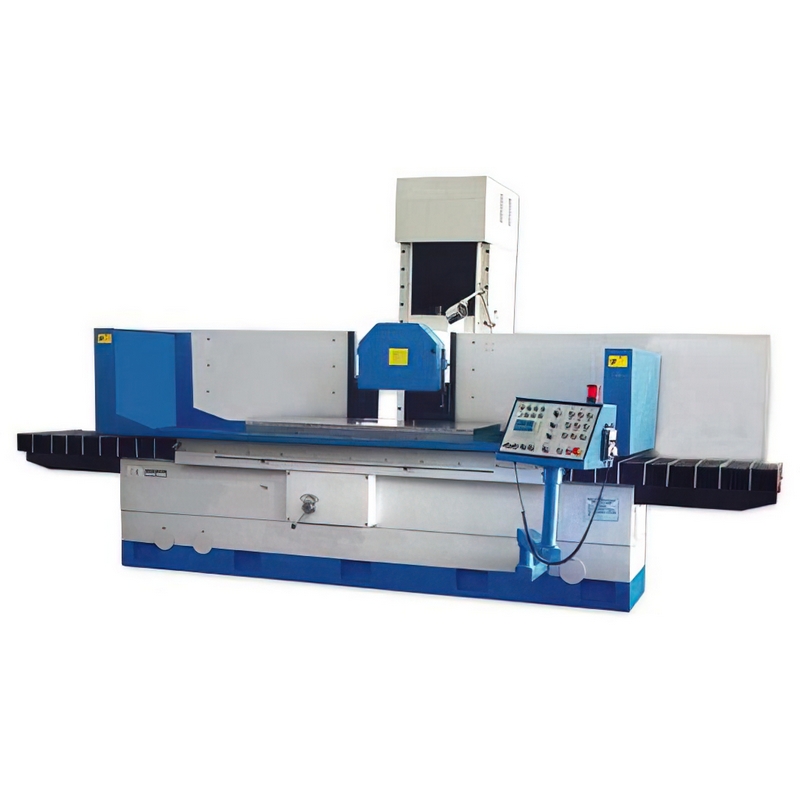

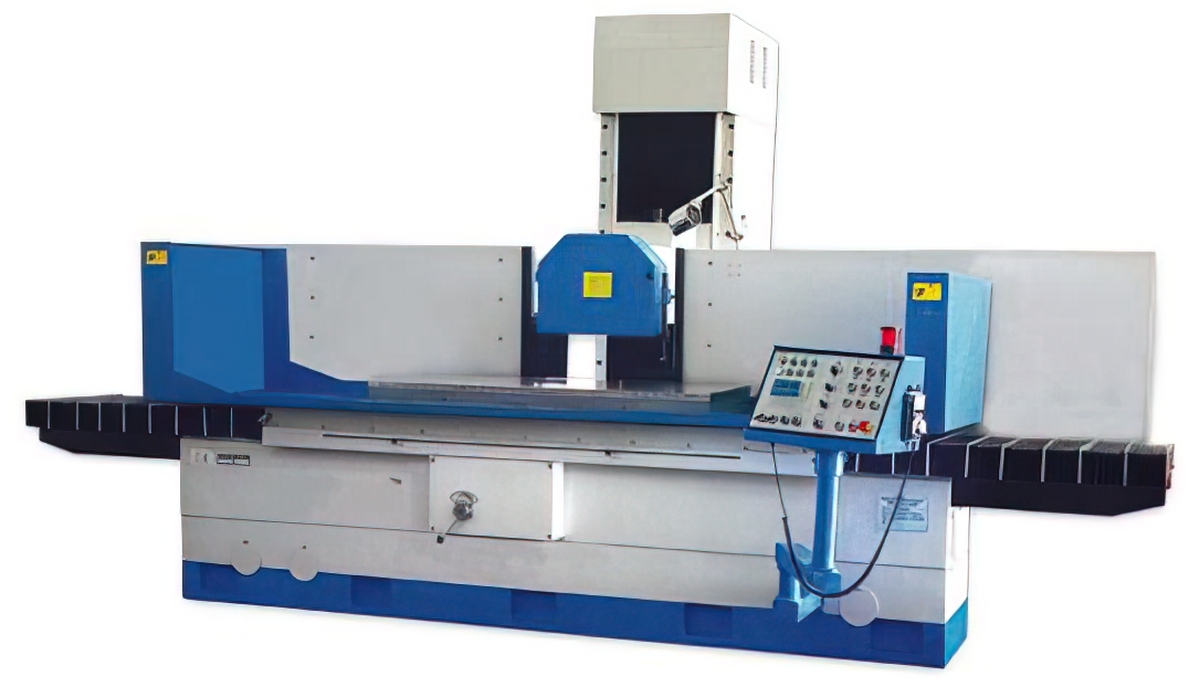

SG60160SD / SG60220SD Surface Grinder Grinding Machine

Category: Surface Grinder

SG SGA-SERIES PLC CNC COLUMN MOVING SURFACE GRINDER





 Model No.

SG60160SD
SG60160CNC

SG60220SD
SG60220CNC

 Item No.





 Specifications





 Table size (mm)

610x1600

610x2200

 Max. grinding (mm)

610x1600

610x2200

 Max. distance from table to spinddle center

820 (925)mm

 Magnetic chuck size (optional) (mm)

600x800x2

500x1000x2

 Tabe longitudinal movement speed

5 - 25 m/min.

 Wheelhead
 cross moving

 Auto feed

1 - 30 mm

 Rapid speed

0.05 - 2 m/min.

 Feed of electro hand wheel

0.005 mm/gra

 Wheelhead
 vertical moving

 Auto feed

0.005 - 0.05 mm/t

 Rapid feed

0.05 - 2 m/min.

 Feed of electro hand wheel

0.005 mm/gra

 Grinding wheel

 Speed

960 (1450) rpm

 Size (ODxWxID)

500x75x305 (450x75x203) mm

 Spindle motor

18.5 kw

 Max loading capacity (include magnetic chuck)

1230 kg

1690 kg

 Total rated power

28.5 kw

 Height of machine

2700 mm

 Floor space (mm)

4700x3000

6000x3000

 Net weight

8500 kg

9500 kg
