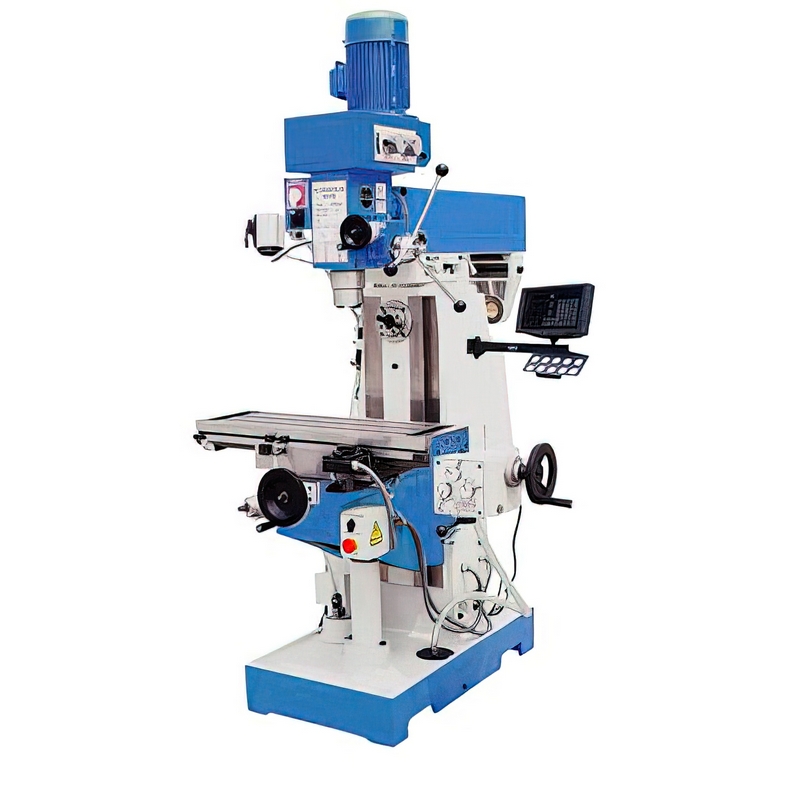

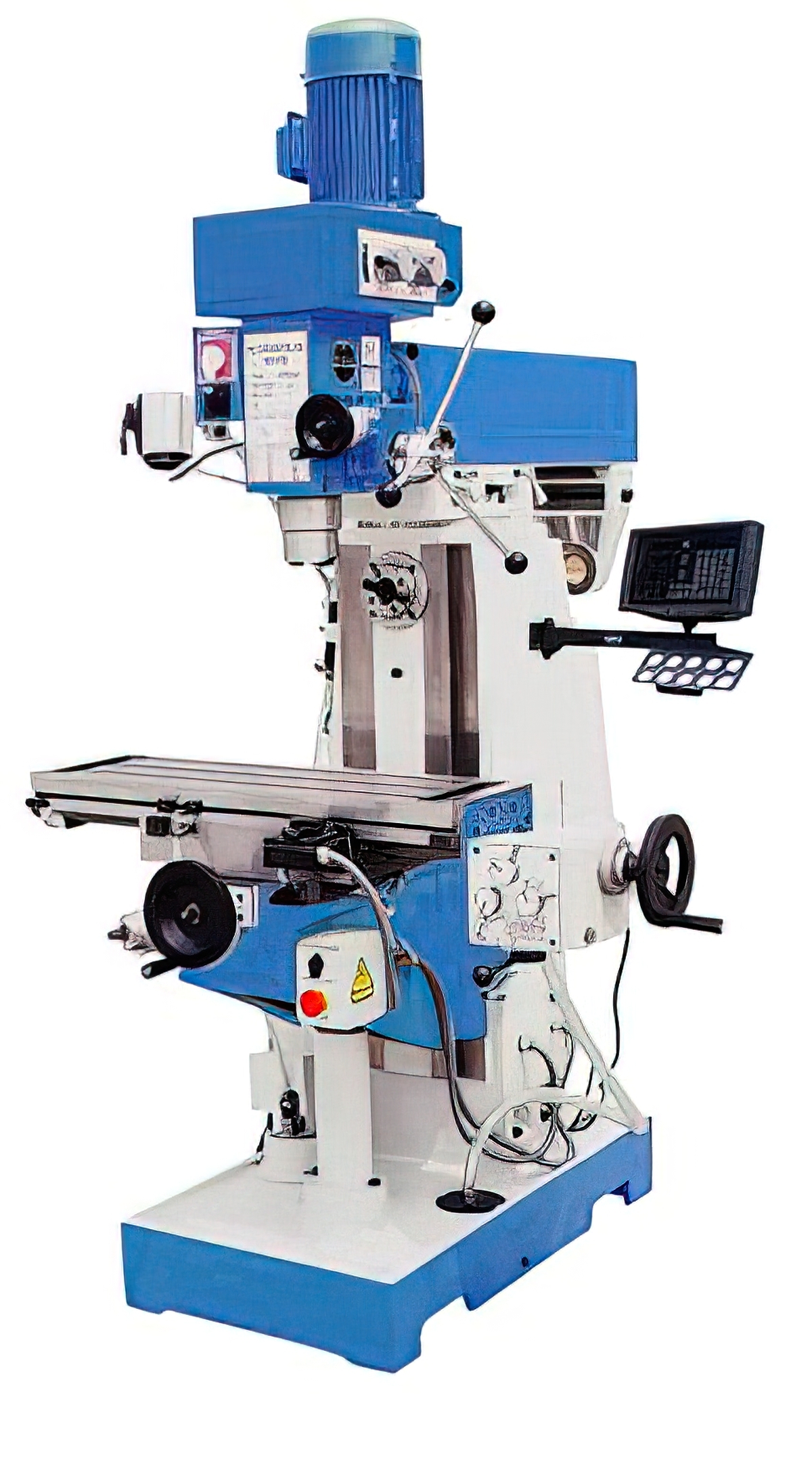

Model No. |
VHM7550A |
|
|
Item No. |
|
|
|
Specifications |
Belt drive |
Gear drive |
|
Table size |
800 x 240 mm |
|
|
Table travel (X,Y) |
380x200mm(manual) /180 mm(power feed) /150mm(swivel table) |
|
|
Knee travel |
360 mm |
|
|
T-slot |
5 x 14 - 44 mm |
|
|
Ram travel |
550 mm |
|
|
Vertical Spindle: |
||
|
Distance spindle nose to table |
70 ~ 420 mm |
|
|
Spindle taper |
ISO40 |
|
|
Spindle stroke |
120 mm |
|
|
Step of spindle speeds |
9 |
8 |
|
Range of spindle speeds |
220~2400 rpm |
115~1750 rpm |
|
Spindle motor |
0.85/1.5 kw |
|
|
Head swivel (L&R) |
±45° |
|
|
Horizontal Spindle: |
||
|
Spindle taper |
ISO40 |
|
|
Step of spindle speeds |
9 |
|
|
Range of spindle speeds |
60 ~ 1350 rpm |
|
|
Spindle motor |
1.5 kw |
|
|
Distance spindle center to table |
0 ~ 360 mm |
|
|
Distance Spindle cneter to ram |
180 mm |
|
|
Overall Dimension |
1290 x 1220 x 2100 mm |
|
|
Net weight |
970 kg |
|
